Brand: Infitek | Category: Scientific & Laboratory Equipment

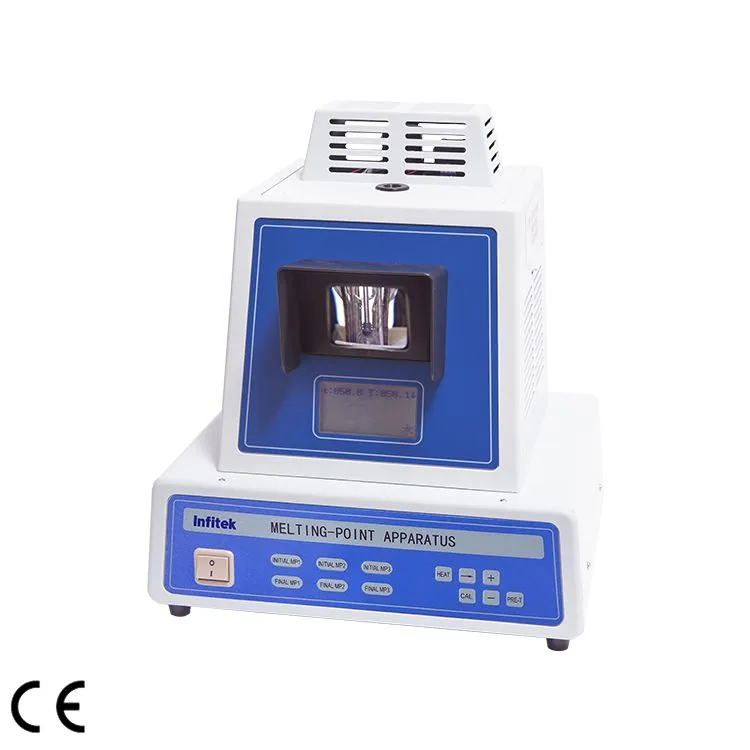

Infitek Visual Melting-point Apparatus, MTP-VL is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: MTP-VL. Published details include Melting-point measurement range: R.T.~280℃. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Parameters/Model | MTP-VL |
|---|---|
| Melting-point measurement range | R.T.~280℃ |
| Heating-conducting medium | Silicon oil |
| Minimum digital display | 0.1℃ |
| Linear heating-up rate | 0.5, 1.0, 1.5, 3.0℃/min |
| Accuracy | ≤200℃: ±0.4℃; >200℃: ±0.7 |
| Repeatability (Standard Deviation) | 0.3℃ (heating rate: 1.0 ℃/min) |
| Size of the capillary | Φ1.4mm (outside diameter); Φ1.0mm (inside diameter); Length: 120mm |
| Number of capillary | 3 |
| Loading height of the sample | 3mm |
| Interface | RS232 |
| Display | LCD |
| Weight (Gross) | 13kg |
| Package Dimension (W*D*H) | 410mm×400mm×550mm |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
