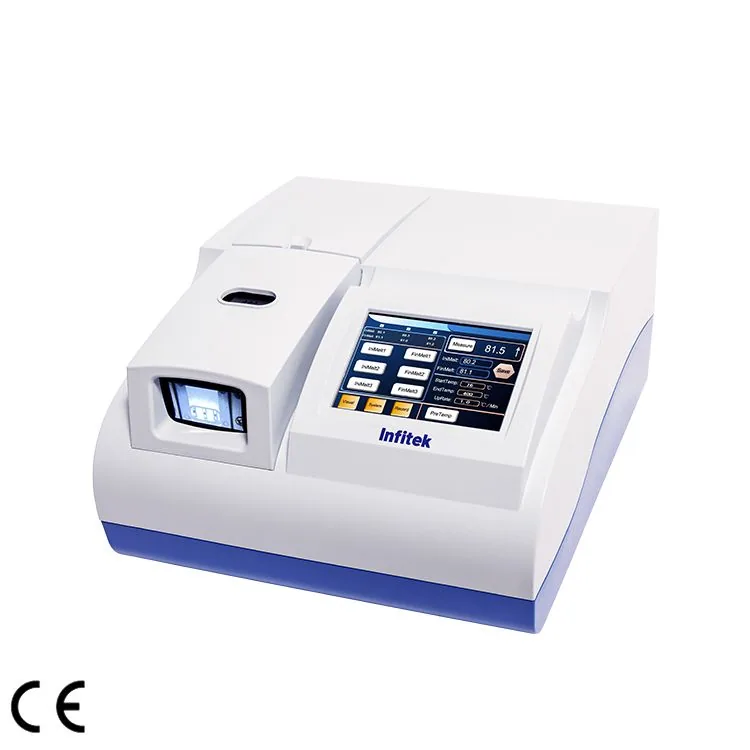

Infitek Micro Processor Melting point Apparatus, MTP-3A
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Micro Processor Melting point Apparatus, MTP-3A is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: MTP-3A. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Parameters/Model | MTP-3A |
|---|---|
| Measuring range | Room temperature -360℃ |
| Measuring mode | Auto/Visual |
| Resolution | 0.1℃ |
| Linear heating-up rate | 0.1℃/min-10℃/min |
| Accuracy | ≤200℃:±0.5℃;>200℃:±0.8℃ |
| Repeatability | 0.3℃(heating rate:1.0℃/min) |
| Linear heating rate error | ±10% |
| Number of capillary | 3 |
| Capillary dimensions | Outer diameter: φ1.4mm Inner diameter:φ1.0mm Length:90mm |
| Height of sample | 3mm |
| Display | 5.6 inch color touch screen |
| Calibration method | Multi-point calibration |
| Data storage | 100 sets |
| Interface | U disk,USB,RS232 |
| Power supply | 220V±22V,50Hz±1 Hz,180w |
| Package Dimension (W*D*H)(mm) | 510*450*390mm |
| Weight G.W.(kg) | 8.8kg |
Manufacturer catalogue checked 2026-09-28.
