Brand: Infitek | Category: Scientific & Laboratory Equipment

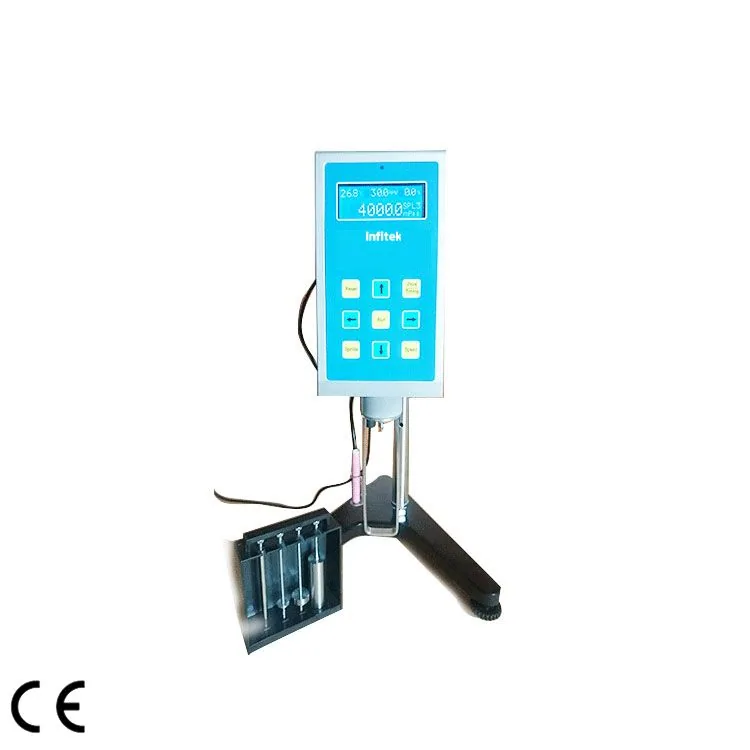

Infitek Digital Viscometer, VSC-E Series is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: VSC-E1, VSC-E2, VSC-E1-1, VSC-E1-2, VSC-E1-3, VSC-E2-1. Compare the remaining models in the specification tables. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | VSC-E1 | VSC-E1 | VSC-E1 | VSC-E2 | VSC-E2 | VSC-E2 |
|---|---|---|---|---|---|---|
| Model | VSC-E1-1 | VSC-E1-2 | VSC-E1-3 | VSC-E2-1 | VSC-E2-2 | VSC-E2-3 |
| Measuring Range（mPa·s） | 12～6,000,000 | 80～40,000,000 | 640～320,000,000 | 6～6,000,000 | 40～40,000,000 | 320～320,000,000 |
| Rotating Speed (RPM) | 0.1～99.9 （Stepless Gear） | 0.1～99.9 （Stepless Gear） | 0.1～99.9 （Stepless Gear） | 0.1～200 (Stepless Gear) | 0.1～200 (Stepless Gear) | 0.1～200 (Stepless Gear) |
| Number of Spindles | Spindles (Code L1, L2, L3, L4) are equipped with the product | Spindles (Code R2, R3, R4, R5, R6, R7) are equipped with the product | Spindles (Code R2, R3, R4, R5, R6, R7) are equipped with the product | Spindles (Code L1, L2, L3, L4) are equipped with the product | Spindles (Code R2, R3, R4, R5, R6, R7) are equipped with the product | Spindles (Code R2, R3, R4, R5, R6, R7) are equipped with the product |
| Accuracy | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use |
| Repeatability | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use |
| Readability | 1.when viscosity is lower than 10.0 cp: 0.01 | 1.when viscosity is lower than 10.0 cp: 0.01 | 1.when viscosity is lower than 10.0 cp: 0.01 | 1.when viscosity is lower than 10.0 cp: 0.01 | 1.when viscosity is lower than 10.0 cp: 0.01 | 1.when viscosity is lower than 10.0 cp: 0.01 |
| Readability | 2.when viscosity is lower than 10000 cp: 0.1 | 2.when viscosity is lower than 10000 cp: 0.1 | 2.when viscosity is lower than 10000 cp: 0.1 | 2.when viscosity is lower than 10000 cp: 0.1 | 2.when viscosity is lower than 10000 cp: 0.1 | 2.when viscosity is lower than 10000 cp: 0.1 |
| Readability | 3.when viscosity is equal or higher than 10000 cp: 1 | 3.when viscosity is equal or higher than 10000 cp: 1 | 3.when viscosity is equal or higher than 10000 cp: 1 | 3.when viscosity is equal or higher than 10000 cp: 1 | 3.when viscosity is equal or higher than 10000 cp: 1 | 3.when viscosity is equal or higher than 10000 cp: 1 |
| Power | Power adapter (input: 100-240V, 50/60Hz) | Power adapter (input: 100-240V, 50/60Hz) | Power adapter (input: 100-240V, 50/60Hz) | Power adapter (input: 100-240V, 50/60Hz) | Power adapter (input: 100-240V, 50/60Hz) | Power adapter (input: 100-240V, 50/60Hz) |
| LCD screen display | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value. | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value. | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value. | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value. | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value. | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value. |
| Package Size(mm) | 410*360*530 | 410*360*520 | 410*360*520 | 400*350*360 | 400*350*550 | 400*350*550 |
| Net weight(kg) | 8kg | 10.5kg | 10.5kg | 8kg | 10.5kg | 10.5kg |
| digital viscosity meter | 1 pce | ascending and falling rack | 1 set |
|---|---|---|---|
| standard spindle | 1 set | power adapter | 1 pce |
| protective frame of spindle | 1 pce | spanner | 1 pce |
| Seat and leveling feet | 1 set | RS232 standard output interface | 1 pce |
| RTD temperature probe | 1 pce |
Manufacturer catalogue checked 2026-09-28.
