Brand: Infitek | Category: Scientific & Laboratory Equipment

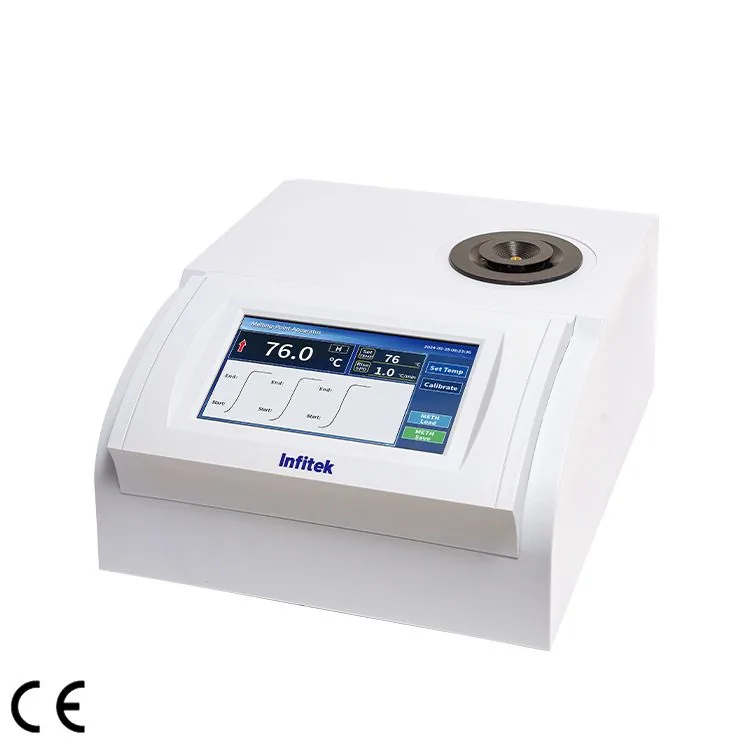

Infitek Digital Melting Point Apparatus, MTP-2C/MTP-2A/MTP-2 is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: MTP-2C, MTP-1C, MTP-1B. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Parameters/Model | MTP-2C | MTP-1C | MTP-1B |
|---|---|---|---|
| Measuring range | RT~360℃ | RT～400℃ | RT～320℃ |
| Measuring mode | Auto | Auto | Auto |
| Measuring methods | 8 | 8 | 8 |
| Resolution | 0.1℃ | 0.1℃ | 0.1℃ |
| Linear heating-up rate | 0.1℃/min~20℃/min | 0.1℃/min~20℃/min | 0.1℃/min~20℃/min |
| Accuracy | ≤200℃:±0.4℃;>200℃:±0.7℃ | ≤200℃:±0.4℃;>200℃:±0.7℃ | ≤200℃:±0.4℃;>200℃:±0.7℃ |
| Repeatability | 0.3℃(heating rate:1.0℃/min) | 0.3℃(heating rate:1.0℃/min) | 0.3℃(heating rate:1.0℃/min) |
| Linear heating rate error | ±10% | ±10% | ±10% |
| Number of capillary | 3 | 1 | 1 |
| Capillary dimensions | Outer diameter:φ1.4mm Inner diameter:φ1.0mm Length:90mm | Outer diameter:φ1.4mm Inner diameter:φ1.0mm Length:90mm | Outer diameter:φ1.4mm Inner diameter:φ1.0mm Length:90mm |
| Height of sample | 3mm | 3mm | 3mm |
| Data storage | 1000 set | 1000 set | / |
| Display | 7 inch touch LCD | 7 inch touch LCD | 7 inch touch LCD |
| Printer(Thermal) | Standard accessory | Optional accessory | Optional accessory |
| Interface | RS232,USB | RS232,USB | RS232,USB |
| Power supply | 100~240VAC,50/60Hz,100W | 100~240VAC,50/60Hz,100W | 100~240VAC,50/60Hz,100W |
| Package Dimension | 580mm×445mm×320mm | 500mm×445mm×330mm | 500mm×445mm×330mm |
| Weight(Gross) | 13kg | 11kg | 11kg |
Manufacturer catalogue checked 2026-09-28.
