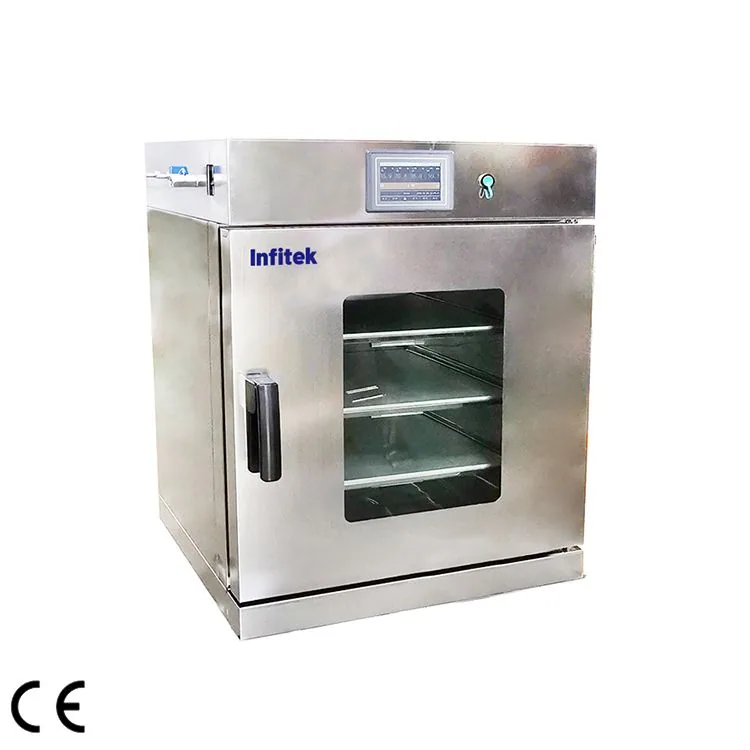

Infitek Vacuum Oven, DOV-55P, DOV-90P, DOV-55PV, DOV-90PV
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Vacuum Oven, DOV-55P, DOV-90P, DOV-55PV, DOV-90PV is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: DOV-55P, DOV-55PV, DOV-90P, DOV-90PV. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| DOV-55P, DOV-90P | DOV-55PV, DOV-90PV |
|---|
| Model | DOV-55P | DOV-55PV | DOV-90P | DOV-90PV |
|---|---|---|---|---|
| Capacity(L) | 52 | 52 | 91 | 91 |
| Heating Mode | Shelf direct heating | Shelf direct heating | Shelf direct heating | Shelf direct heating |
| Dimension(W*D*H) / Internal (mm) | 415*370*340 | 415*370*340 | 450*450*450 | 450*450*450 |
| Dimension(W*D*H) / External (mm) | 635*565*796 | 635*565*1296 | 670*645*906 | 670*645*1406 |
| Temperature / Range (℃) | RT+10~250 | RT+10~250 | RT+10~250 | RT+10~250 |
| Temperature / Fluctuation (℃) | ±1 | ±1 | ±1 | ±1 |
| Temperature / Resolution (℃) | 0.1 | 0.1 | 0.1 | 0.1 |
| Temperature / Sensor | PT100 | PT100 | PT100 | PT100 |
| Controller | Multi-stage PID | Multi-stage PID | Multi-stage PID | Multi-stage PID |
| Vacuum Degree Range | <133Pa | <133Pa | <133Pa | <133Pa |
| Vacuum Nozzle Diameter(mm) | Φ10 | Φ10 | Φ10 | Φ10 |
| Display | 7.0 inches LCD color touch screen | 7.0 inches LCD color touch screen | 7.0 inches LCD color touch screen | 7.0 inches LCD color touch screen |
| Timer | 0~9999min / 0~9999h | 0~9999min / 0~9999h | 0~9999min / 0~9999h | 0~9999min / 0~9999h |
| Material / Internal | SUS304 mirror stainless steel | SUS304 mirror stainless steel | SUS304 mirror stainless steel | SUS304 mirror stainless steel |
| Material / External | SUS304 embossed stainless steel | SUS304 embossed stainless steel | SUS304 embossed stainless steel | SUS304 embossed stainless steel |
| Shelves(Standard) | 2 | 2 | 2 | 2 |
| Safety Device | Over temperature visible& audible alarm, sensor fault alarm, vacuum overvalue alarm | Over temperature visible& audible alarm, sensor fault alarm, vacuum overvalue alarm | Over temperature visible& audible alarm, sensor fault alarm, vacuum overvalue alarm | Over temperature visible& audible alarm, sensor fault alarm, vacuum overvalue alarm |
| Electricity / Voltage/Frequency | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz |
| Electricity / Consumption (W) | 1200 | 1600 | 1600 | 2000 |
| N.W./G.W. (kg) | 67/92 | 87/112 | 82/105 | 102/125 |
| Package Dimension(W*D*H) (mm) | 804*705*957 | 760*730*1500 | 860*810*1040 | 840*785*1562 |
| Optional | Spare shelf（independent temperature control）,RS485 transfer to USB communication interface, built-in printer | Spare shelf（independent temperature control）,RS485 transfer to USB communication interface, built-in printer | Spare shelf（independent temperature control）,RS485 transfer to USB communication interface, built-in printer | Spare shelf（independent temperature control）,RS485 transfer to USB communication interface, built-in printer |
Manufacturer catalogue checked 2026-09-28.
