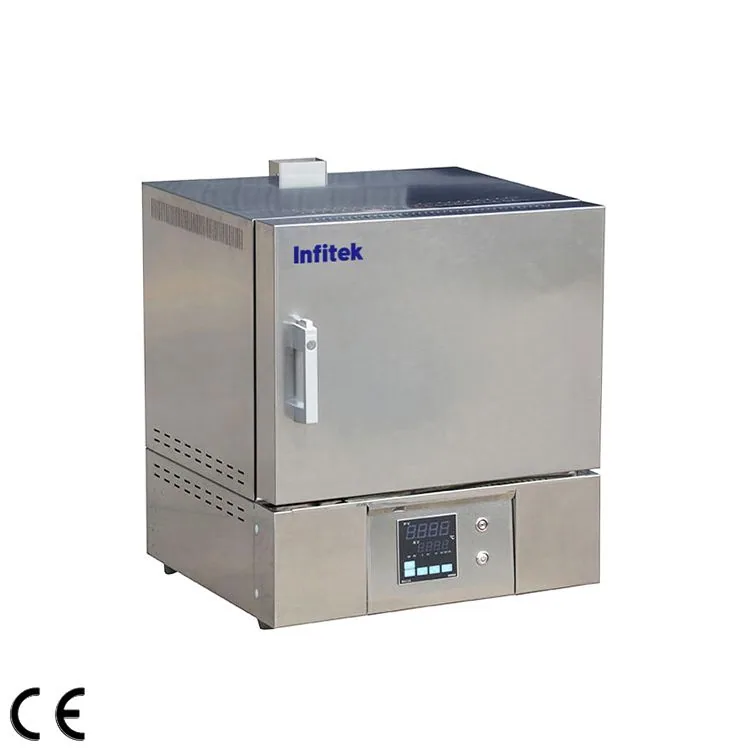

Infitek Muffle Furnace, Box-type, Ceramic Fiber, FNC-BX-PS Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Muffle Furnace, Box-type, Ceramic Fiber, FNC-BX-PS Series is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: FNC-BX1200-2PS, FNC-BX1200-7PS, FNC-BX1200-12PS, FNC-BX1200-16PS. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | FNC-BX1200-2PS | FNC-BX1200-7PS | FNC-BX1200-12PS | FNC-BX1200-16PS |
|---|---|---|---|---|
| Heating mode | Alloy wire heating in three sides left; right; top side. | Alloy wire heating in three sides left; right; top side. | Alloy wire heating in three sides left; right; top side. | Alloy wire heating in three sides left; right; top side. |
| Function / Temp. Range | 100-1200℃ | 100-1200℃ | 100-1200℃ | 100-1200℃ |
| Function / Temp. Resolution Ratio | 1℃ | 1℃ | 1℃ | 1℃ |
| Function / Temp. motion | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Function / Temp.Rising time to max temp | ≤30min | ≤30min | ≤30min | ≤30min |
| Structure / Chamber material | Ceramic fiber | Ceramic fiber | Ceramic fiber | Ceramic fiber |
| Structure / Outer shell | stainless steel | stainless steel | stainless steel | stainless steel |
| Structure / Insulation layer | Ceramic fiber | Ceramic fiber | Ceramic fiber | Ceramic fiber |
| Structure / Heater | Alloy heating wire | Alloy heating wire | Alloy heating wire | Alloy heating wire |
| Structure / Power rating | 1.5kW | 3.0kW | 4.5kW | 6.0kW |
| Exhaust hole / φ30mm(chimney size 80*60mm) | φ30mm(chimney size 80*60mm) | φ30mm(chimney size 80*60mm) | φ30mm(chimney size 80*60mm) | φ30mm(chimney size 80*60mm) |
| Controller / Temp. control mode / Japaness Fuji color LCD 64- segment programmed temperature controller | Japaness Fuji color LCD 64- segment programmed temperature controller | Japaness Fuji color LCD 64- segment programmed temperature controller | Japaness Fuji color LCD 64- segment programmed temperature controller | Japaness Fuji color LCD 64- segment programmed temperature controller |
| Controller / Temp. setting mode / Touch button setting | Touch button setting | Touch button setting | Touch button setting | Touch button setting |
| Controller / Temp. display mode / Measuring temperature: LED upper row, setting temperature: the lower row | Measuring temperature: LED upper row, setting temperature: the lower row | Measuring temperature: LED upper row, setting temperature: the lower row | Measuring temperature: LED upper row, setting temperature: the lower row | Measuring temperature: LED upper row, setting temperature: the lower row |
| Controller / Timer / Timing Function, 99 hours and 59 minutes(with Timing Waiting Function) | Timing Function, 99 hours and 59 minutes(with Timing Waiting Function) | Timing Function, 99 hours and 59 minutes(with Timing Waiting Function) | Timing Function, 99 hours and 59 minutes(with Timing Waiting Function) | Timing Function, 99 hours and 59 minutes(with Timing Waiting Function) |
| Controller / Operation function / Fixed temperature operation, auto stop. | Fixed temperature operation, auto stop. | Fixed temperature operation, auto stop. | Fixed temperature operation, auto stop. | Fixed temperature operation, auto stop. |
| Controller / Additional function / Sensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory | Sensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory | Sensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory | Sensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory | Sensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory |
| Controller / Sensor / High precision K type sensor | High precision K type sensor | High precision K type sensor | High precision K type sensor | High precision K type sensor |
| Safety device / Manual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature protection，thermo couple failure | Manual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature protection，thermo couple failure | Manual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature protection，thermo couple failure | Manual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature protection，thermo couple failure | Manual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature protection，thermo couple failure |
| Specification / Inner Chamber size (W*D*H)(mm) | 120*200*80 | 200*300*120 | 200*300*200 | 250*400*160 |
| Specification / Exterior size (W*D*H)(mm) | 450*685*600 | 530*785*640 | 530*785*720 | 600*895*700 |
| Specification / Packing size (W*L*H)(mm) | 580*775*730 | 660*875*770 | 660*875*850 | 730*985*830 |
| Specification / Volume | 2L | 7L | 12L | 16L |
| Specification / Current rating (50/60HZ) | AC220V/6.6A | AC220V/13.6A | AC220V/20.4A | AC380V/9.9A |
| Specification / NW/GW (kg） | 33/37 | 45/50 | 62/68 | 77/96 |
| optional type | LCD program temperature control device with USB date storage | LCD program temperature control device with USB date storage | LCD program temperature control device with USB date storage | LCD program temperature control device with USB date storage |
Manufacturer catalogue checked 2026-09-28.
