Brand: Infitek | Category: Scientific & Laboratory Equipment

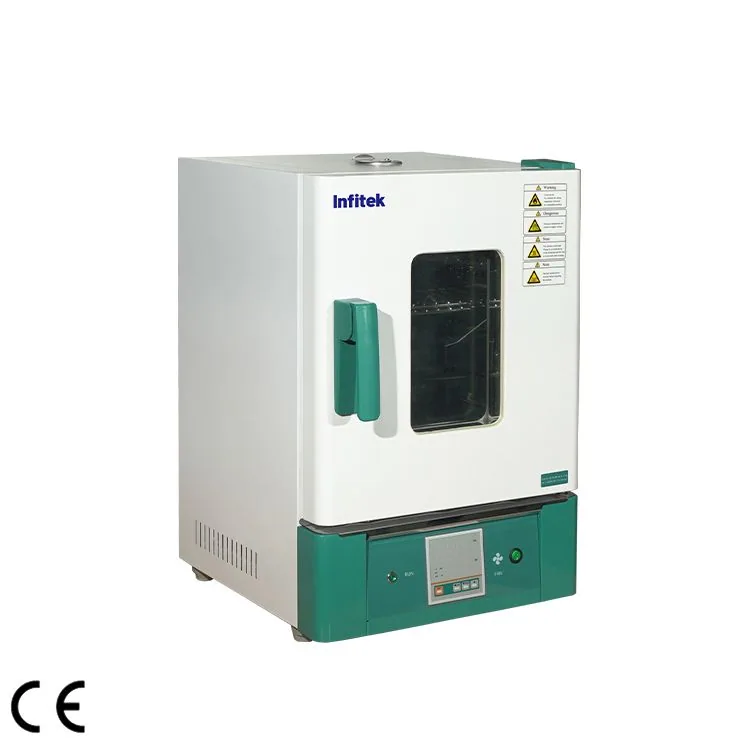

Infitek Forced Air Drying Oven, DOF-85, DOF-85E is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: DOF-85E, DOF-85. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| DOF-85 | DOF-85E |
|---|
| Model | DOF-85E | DOF-85E | DOF-85 |
|---|---|---|---|
| Cycle Mode | Forced air convection | Forced air convection | Forced air convection |
| Volume | 85L | 85L | 85L |
| Temp. Range | RT+10~300℃ | RT+10~300℃ | RT+10~300℃ |
| Temp. Resolution | 0.1℃ | 0.1℃ | 0.1℃ |
| Temp. Uniformity | ±2.5% | ±2.5% | ±2.5% |
| Inner Chamber Material | Mirror Stainless Steel | Mirror Stainless Steel | Mirror Stainless Steel |
| Temp. Display | Measuring temperature: display on the four digital tubes, upper row, setting temperature: display on the lower row; | Measuring temperature display on upper LCD screen, setting temperature display on the lower row; | Measuring temperature display on upper LCD screen, setting temperature display on the lower row; |
| Structure | External material: cold rolling steel electrostatic spraying; Insulation: High quality rock wool board (with CE); Heater: Stainelss steel heater; Exhaust hole: φ28mm top (with function of test hole); | External material: cold rolling steel electrostatic spraying; Insulation: High quality rock wool board (with CE); Heater: Stainelss steel heater; Exhaust hole: φ28mm top (with function of test hole); | External material: cold rolling steel electrostatic spraying; Insulation: High quality rock wool board (with CE); Heater: Stainelss steel heater; Exhaust hole: φ28mm top (with function of test hole); |
| Controller | Temp. sensor: PT100; Temp. set: soft touch button; Temp. control: Intelligent PID for Two temperature section; Operation function: fixed temperature operation, timing function, auto stop; | Temp. sensor: PT100; Temp. set: soft touch button; Temp. control: Intelligent PID for Two temperature section; Operation function: fixed temperature operation, timing function, auto stop; | Temp. sensor: PT100; Temp. set: soft touch button; Temp. control: Intelligent PID for Two temperature section; Operation function: fixed temperature operation, timing function, auto stop; |
| Additional function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory; | High precision digital independent temperature limiter, 3-grade adjustable speed fan (230 and 625 without fan speed adjustor), sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory; | High precision digital independent temperature limiter, 3-grade adjustable speed fan (230 and 625 without fan speed adjustor), sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory; |
| Timing Setting | 0~9999mins(with timing wait function) | 0~9999mins(with timing wait function) | 0~9999mins(with timing wait function) |
| Alarm | Over-temperature Alarm, audible and visual alarm | Over-temperature Alarm, audible and visual alarm | Over-temperature Alarm, audible and visual alarm |
| Shelves | 2pcs/adjustable, max. load 15kg/shelf, shelf space 35mm | 2pcs/adjustable, max. load 15kg/shelf, shelf space 35mm | 2pcs/adjustable, max. load 15kg/shelf, shelf space 35mm |
| Consumption | 600W | 600W | 600W |
| Power Supply | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz |
| Internal Size(W*D*H) | 450*420*450mm | 450*420*450mm | 450*420*450mm |
| External Size(W*D*H) | 590*610*830mm | 590*610*830mm | 590*610*830mm |
| Package Size(W*D*H) | 690*695*985mm | 690*695*985mm | 690*695*985mm |
| Net/Gross Weight | 50/56kg | 50/56kg | 50/56kg |
Manufacturer catalogue checked 2026-09-28.
