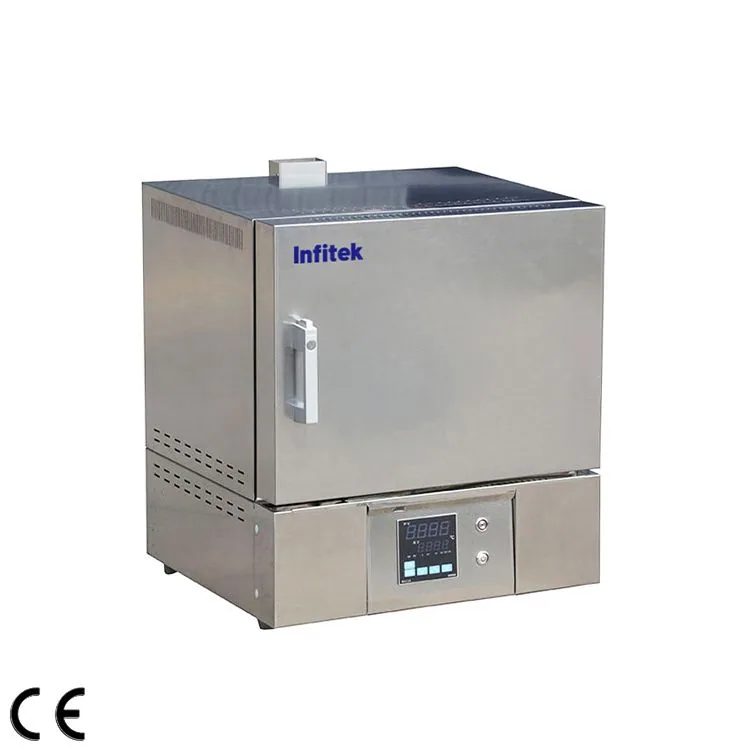

Infitek Muffle Furnace, Ceramic Fiber, FNC-BX-ES Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Muffle Furnace, Ceramic Fiber, FNC-BX-ES Series is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: FNC-BX1200-2.5ES, FNC-BX1200-5ES, FNC-BX1200-8ES, FNC-BX1200-10ES. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | FNC-BX1200-2.5ES | FNC-BX1200-2.5ES | FNC-BX1200-5ES | FNC-BX1200-5ES | FNC-BX1200-8ES | FNC-BX1200-8ES | FNC-BX1200-10ES |
|---|---|---|---|---|---|---|---|
| Heating mode | Alloy wire heating in three sides left; right; top side. | Alloy wire heating in three sides left; right; top side. | Alloy wire heating in three sides left; right; top side. | Alloy wire heating in three sides left; right; top side. | Alloy wire heating in three sides left; right; top side. | Alloy wire heating in three sides left; right; top side. | Alloy wire heating in three sides left; right; top side. |
| Temperature / Max. Temp(℃) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Temperature / Accuracy(℃) | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Temperature / Heating Rate | ≤30min | ≤30min | ≤30min | ≤30min | ≤30min | ≤30min | ≤30min |
| Chamber Dimension(W*D*H)(mm) | 120*200*80 | 200*300*120 | 200*300*120 | 200*300*200 | 200*300*200 | 250*400*160 | 250*400*160 |
| External Size(W*D*H)(mm) | 450*685*600 | 530*785*640 | 530*785*640 | 530*785*720 | 530*785*720 | 600*895*700 | 600*895*700 |
| Capacity(L) | 2 | 7 | 7 | 12 | 12 | 16 | 16 |
| Heating Element | Alloy heating wire | Alloy heating wire | Alloy heating wire | Alloy heating wire | Alloy heating wire | Alloy heating wire | Alloy heating wire |
| Thermocouple | K type | K type | K type | K type | K type | K type | K type |
| Chamber Material | Ceramic fiber | Ceramic fiber | Ceramic fiber | Ceramic fiber | Ceramic fiber | Ceramic fiber | Ceramic fiber |
| Outer shell | embossed stainless steel material | embossed stainless steel material | embossed stainless steel material | embossed stainless steel material | embossed stainless steel material | embossed stainless steel material | embossed stainless steel material |
| Temp. control mode | ES Type : Domestic Xiamen Yudian single-stage temperature controller | ES Type : Domestic Xiamen Yudian single-stage temperature controller | ES Type : Domestic Xiamen Yudian single-stage temperature controller | ES Type : Domestic Xiamen Yudian single-stage temperature controller | ES Type : Domestic Xiamen Yudian single-stage temperature controller | ES Type : Domestic Xiamen Yudian single-stage temperature controller | ES Type : Domestic Xiamen Yudian single-stage temperature controller |
| Electricity | AC220V/6.6A; 50/60HZ | AC220V/6.6A; 50/60HZ | AC220V/13.6A; 50/60HZ | AC220V/13.6A; 50/60HZ | AC220V/20.4A; 50/60HZ | AC220V/20.4A; 50/60HZ | AC380V/9.9A; 50/60HZ |
| Max. Consumption | 1.5kW | 1.5kW | 3.0kW | 3.0kW | 4.5kW | 4.5kW | 6.0kW |
Manufacturer catalogue checked 2026-09-28.
