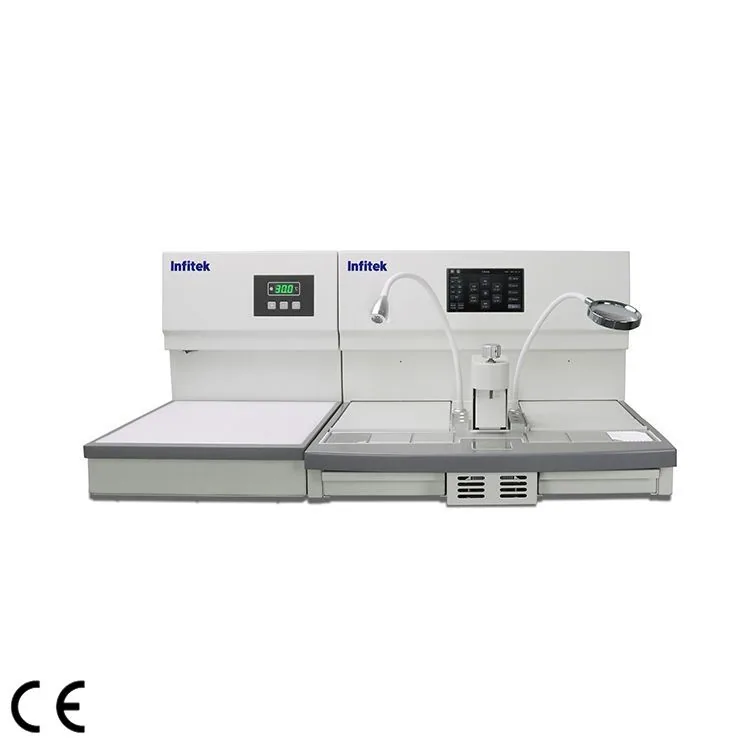

Infitek Tissue Embedding & Cooling System, EBD-4&CL4
Brand: Infitek | Category: Medical Equipment
Infitek Tissue Embedding & Cooling System, EBD-4&CL4 is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: EBD-4, EBD-CL4. Published details include Paraffin Chamber Capacity: 6L; Temperature Range of Paraffin Tank: RT.~85℃. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | EBD-4 |
|---|---|
| Paraffin Chamber Capacity | 6L |
| Independently Controlled Heating Zones | 6 |
| Forceps Heating Wells | 6 |
| Temperature Range of Paraffin Tank | RT.~85℃ |
| Temperature Range of Left Storage Compartment | RT.~85℃ |
| Temperature Range of Right Storage Compartment | RT.~85℃ |
| Temperature Range of Paraffin Dispenser Nozzle | RT.~85℃ |
| Temperature Range of Working Plate | RT.~85℃ |
| Temperature Range of Forceps Plate | RT.~85℃ |
| Flow Adjustment Range of Paraffin Dispenser Nozzle | 0~400mL/min |
| Paraffin Dispensing Duration Range | 0.1s~10s |
| Paraffin Drainage Holes of Working Table | 4 holes |
| Working Temperature of Small Cooling Table | ≤-5℃ |
| Lighting Brightness Adjustment | Level 0~100, stepless control |
| Display Screen Brightness Adjustment | Level 0~100, stepless control |
| Memory Function | Automatically retains set temperature after operation |
| Clock | High display accuracy, convenient time calibration |
| Heater Temperature Control Accuracy | ±1℃ |
| Dimensions of Storage Compartment | 2pcs. (240*160*55mm) |
| Dimensions of Embedding Worktable | 540*93 mm |
| Dimensions of Small Cooling Table | 60*50mm |
| Model | EBD-CL4 |
|---|---|
| Large Cooling Plate Linkage Delay Range | 0~150mins |
| Dimensions of Freezing Table | 315*380mm |
| Temperature Range of Freezing Table | +5~-20℃, lowest temperature can reach -28℃ (super cooling mode) |
| Model | EBD-4 | EBD-CL4 |
|---|---|---|
| Electricity | AC110~120V/ AC 220~240V, 50Hz/60Hz | AC110~120V/ AC 220~240V, 50Hz/60Hz |
| Power | 1000W | 300W |
| Dimension | 575*675*395mm | 350*710*395mm |
| Net Weight | 38kg | 25kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
