Brand: Infitek | Category: Medical Equipment

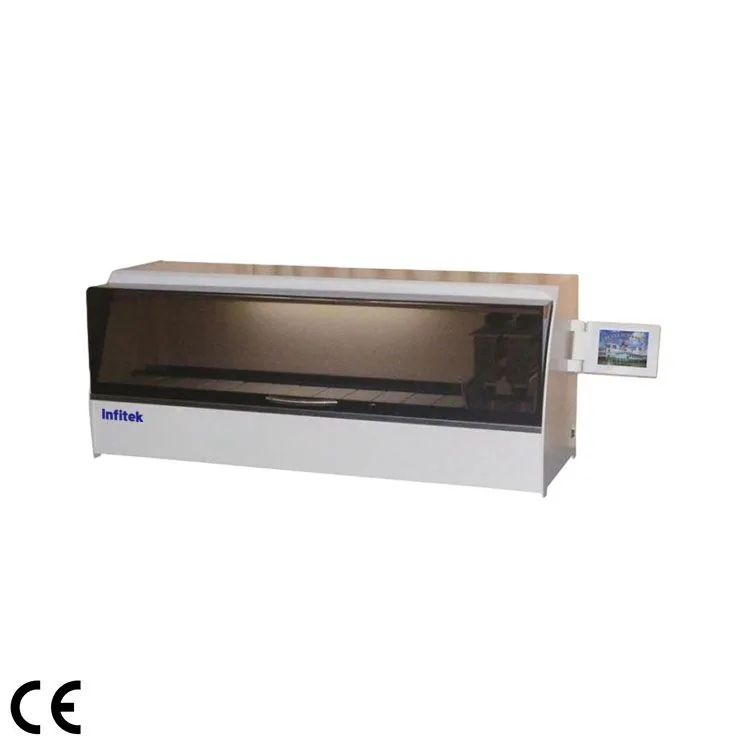

Infitek Fully automated tissue processor, TSP-3E is listed in VVON's histology & pathology equipment range for Bangladesh. Published details include Capacity of Each Cup: 2000ml; Dehydration basket capacity: 162*62*129 (mm) (125 dehydration cassettes/each). Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Number of Cups | 14(10 for reagents, and the cups at the 11th, 12th, 13th, and 14thstations are used for paraffin melting) Two baskets; |
|---|---|
| Capacity of Each Cup | 2000ml |
| Dehydration basket capacity | 162*62*129 (mm) (125 dehydration cassettes/each) |
| Single tank processing time | Any length between 0 and 99 hours 59 minutes for the 1st and 2nd cup; Any length between 0 and 23 hours 59 minutes for the 3nd to 14th cup |
| Wax tank temperature control range | RT – 80℃; |
| Temperature Control Precision | ±1℃; |
| Programmable settings | Mechanism A: 20 sets. Mechanism B: 20 sets |
| Drainage time | Adjustable from 10~60 seconds,increment of 10 seconds.shake/drip above cup |
| Frequency of Agitation | 0 – 6 times/min adjustable; |
| Tissue protection tank | Mechanism A: 7th tank. Mechanism B: 5th tank |
| Dehydration Basket | Divided into three layers to ease the categorization of tissue. |
| Working Voltage | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz |
| Power | 550W |
| Dimensions | 1370×440×525 mm (W×D×H) |
| Weight | 102kg |
| Package Dimension (W*D*H) (mm) | 1520*610*770 |
| G.W.(kg) | 155Kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Capacity of Each Cup: 2000 ml; Dehydration basket capacity: 162*62*129 (mm) (125 dehydration cassettes). Match specimen throughput, preparation steps and consumables to the histology workflow.
Paraffin Chamber Capacity: 3 liter; Temperature Range of Forceps Wells: 55 – 70℃. Match specimen throughput, preparation steps and consumables to the histology workflow.
Capacity of Each Cup: 1500ml; Dehydration basket capacity: 160*52*112 (mm) (100 dehydration cassettes). Match specimen throughput, preparation steps and consumables to the histology workflow.
