Brand: Infitek | Category: Medical Equipment

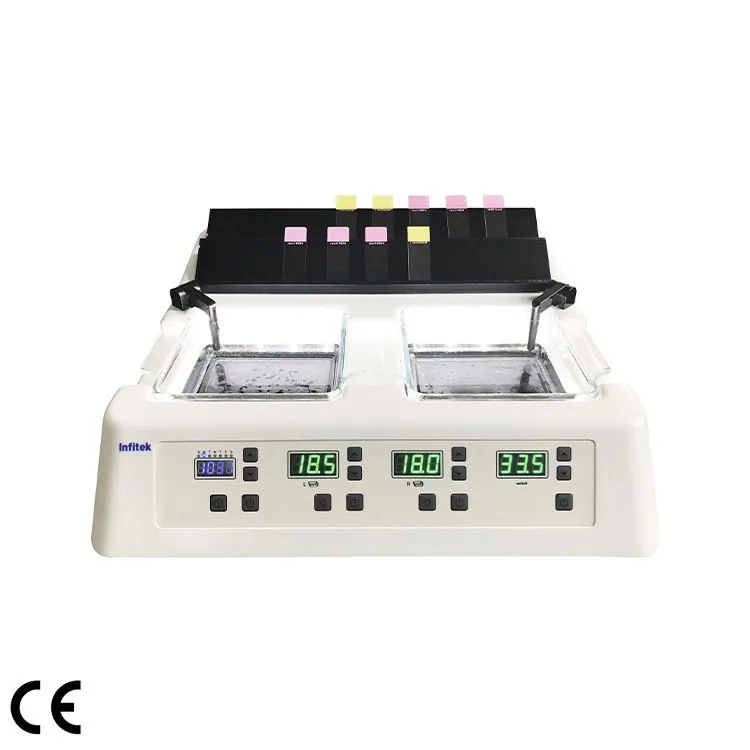

Infitek Flattening Station( Water Bath&Slide Dryer ), TSBW-T3 is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: TSBW-T3. Published details include Temperature control range of floating slide: RT~70℃; Temperature control range of drying slide: RT~100℃. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | TSBW-T3 |
|---|---|
| Temperature control range of floating slide | RT~70℃ |
| Temperature control range of drying slide | RT~100℃ |
| Temperature control precision | ±1℃ |
| Dimensions of water bath dish | 155×155×55 mm |
| Dimensions of baking table | 405×130 mm (32 slides) |
| Electricity | AC 100V～120V/AC 220V～240V |
| Power frequency | 50Hz/60Hz |
| Power | 600W |
| Package Dimension (W*D*H)(mm) | 620×570×320 mm |
| Weight | 14.5kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
