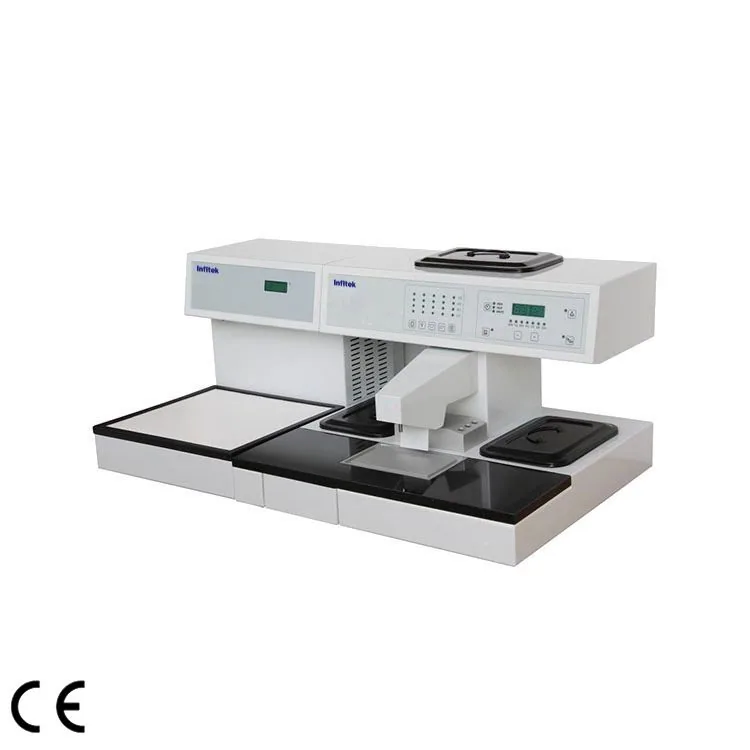

Infitek Tissue Embedding & Cooling System, EBD-1&CL1
Brand: Infitek | Category: Medical Equipment
Infitek Tissue Embedding & Cooling System, EBD-1&CL1 is listed in VVON's histology & pathology equipment range for Bangladesh. Published details include Paraffin Chamber Capacity: 3 liter; Temperature Range of Forceps Wells: 55 – 70℃. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| The paraffin-heating maximum temperature | 70℃ |
|---|---|
| Paraffin Chamber Capacity | 3 liter |
| Temperature Range of Forceps Wells | 55 – 70℃ |
| Temperature Range of Paraffin-melting Chamber | 55 – 70℃ |
| Temperature Range of Thermal Storage Compartments | 55 – 70℃ |
| Temperature Range of Heated Working Areas | 55 – 70℃ |
| Temperature Range of Paraffin dispenser | 55 – 70℃ |
| Temperature Control Precision | ±1% |
| Paraffin Flow Control | Paraffin flow control via finger touch plate and foot pedal |
| Fully programmable ON/OFF control | Allows automatic system start and stop anytime weekly |
| Working Temperature of Cryo-Module | ≤ -20℃，as low as -30℃ |
| Working Voltage | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz |
| Power | 650W (EBD-1), 300W (EBD-CL1) |
| Dimensions(W×D×H) | 525×550×385 mm (EBD-1); 590×345×385 mm (EBD-CL1) |
| Net weight | 26kg (EBD-1), 27kg (EBD-CL1) |
Manufacturer catalogue checked 2026-09-28.
