Brand: Infitek | Category: Medical Equipment

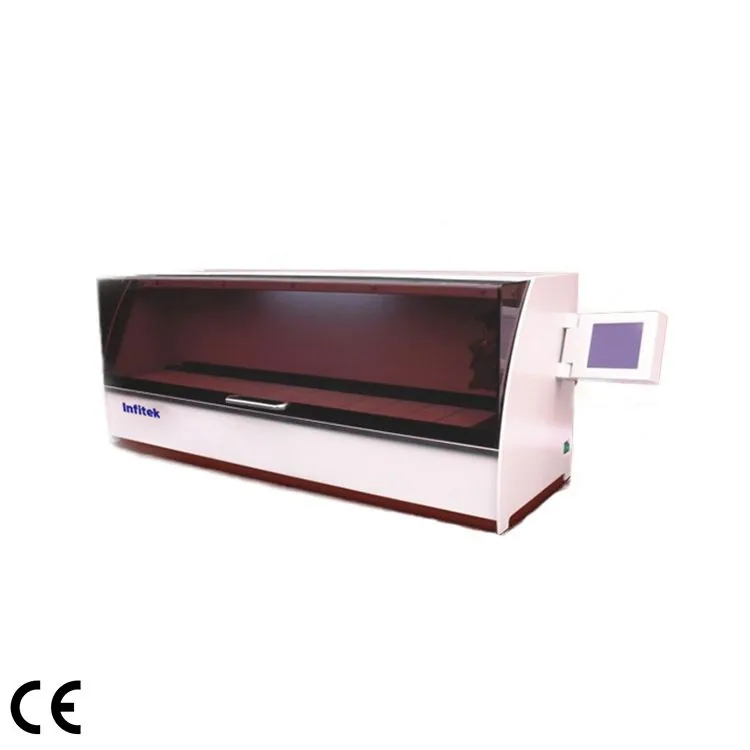

Infitek Automated Tissue Processor, TSP-3C is listed in VVON's histology & pathology equipment range for Bangladesh. Published details include Capacity of Each Cup: 2000 ml; Dehydration basket capacity: 162*62*129 (mm) (125 dehydration cassettes). Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Number of Cups | 12 (The 1st to 9th stations for reagents and the 10th to 12th stations for paraffin melting) |
|---|---|
| Capacity of Each Cup | 2000 ml |
| Dehydration basket capacity | 162*62*129 (mm) (125 dehydration cassettes) |
| Single tank processing time | Single tank processing time |
| First tank | Adjustable from 0~99 hours 59 minutes |
| Other tanks | Adjustable from 0~23 hours 59 minutes |
| Wax tank temperature control range | RT – 80℃ |
| Programmable settings | 20 sets. |
| Temperature Control Precision | ±1℃ |
| Drainage time | Adjustable from 10~60 seconds, increment of 10 seconds.shake/drip above cup |
| Frequency of Agitation | Adjustable within 0 – 6 times/minute |
| Tissue protection tanks | Adjustable from 1~7 tanks |
| Working Voltage | AC220V±10% 50Hz (standard model)AC110V±10% 60Hz |
| Power | 500 W |
| Dimensions | 1170×465×535mm (W×D×H) |
| Net weight | 85kg |
Manufacturer catalogue checked 2026-09-28.
