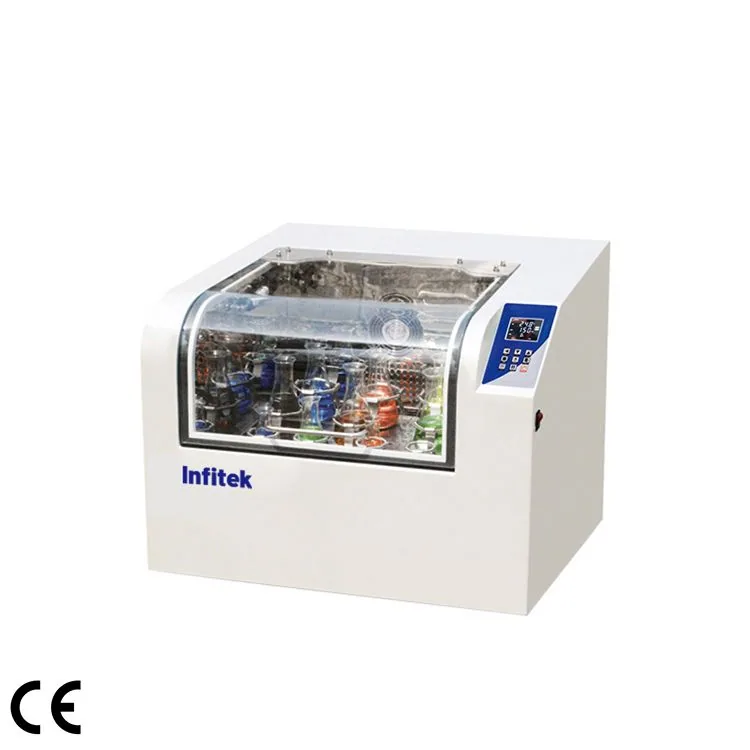

Infitek Shaking incubator, ICB-S100B, ICB-S200B, ICB-S100D, ICB-S200D, ICB-SL100F, ICB-SL200F
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Shaking incubator, ICB-S100B, ICB-S200B, ICB-S100D, ICB-S200D, ICB-SL100F, ICB-SL200F is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: ICB-S100B, ICB-S200B, ICB-S100D, CB-S200D, ICB-SL100F, ICB-SL200F. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | ICB-S100B | ICB-S200B | ICB-S100D | CB-S200D | ICB-SL100F | ICB-SL200F |
|---|---|---|---|---|---|---|
| Capacity(L) | 70 | 70 | 70 | 70 | 70 | 70 |
| Circulation | Forced convection | Forced convection | Forced convection | Forced convection | Forced convection | Forced convection |
| Drive Mode | Multidimensional drive | Multidimensional drive | Unidimensional drive | Unidimensional drive | Track drive | Track drive |
| Shake Mode | Convolution | Convolution | Convolution | Convolution | Convolution | Convolution |
| Orbit Diameter(mm) | Φ26 | Φ26 | Φ0-50 | Φ0-50 | Φ0-50 | Φ0-50 |
| Cyclotron Frequency / Range (rpm/min) | 0(to do static culture), 20-300 | 0(to do static culture), 20-300 | 0(to do static culture), 20-600 | 0(to do static culture), 20-600 | 0(to do static culture),20-260 | 0(to do static culture),20-260 |
| Cyclotron Frequency / Resolution (rpm) | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Temperature / Range (℃) | RT +5 ~ 65 | 4~ 65 (RT:25) | RT +5 ~ 65 | 4~ 65 (RT:25) | RT +5 ~ 65 | 4~ 65 (RT:25) |
| Temperature / Fluctuation (℃) | ≤0.1(37℃) | ≤0.1(37℃) | ≤0.1(37℃) | ≤0.1(37℃) | ≤0.1(37℃) | ≤0.1(37℃) |
| Temperature / Resolution (℃) | ± 0.1 | ± 0.1 | ± 0.1 | ± 0.1 | ± 0.1 | ± 0.1 |
| Temperature / Uniformity (℃) | ± 0.6(37℃) | ± 0.6(37℃) | ± 0.6(37℃) | ± 0.6(37℃) | ± 0.6(37℃) | ± 0.6(37℃) |
| Dimension(W*D*H) / External (mm) | 750*710*520 | 750*710*520 | 750*710*520 | 750*710*520 | 750*710*520 | 750*710*520 |
| Dimension(W*D*H) / Platform(mm) | 450*410 | 450*410 | 410*360 | 410*360 | 410*360 | 410*360 |
| Flask Clamp / Max. Capacity | 100ml*23 or 250ml*15 or 500ml*9 or 1000ml*6 or 2000ml*4 | 100ml*23 or 250ml*15 or 500ml*9 or 1000ml*6 or 2000ml*4 | 100ml*23 or 250ml*15 or 500ml*9 or 1000ml*6 or 2000ml*4 | 100ml*23 or 250ml*15 or 500ml*9 or 1000ml*6 or 2000ml*4 | 100ml*23 or 250ml*15 or 500ml*9 or 1000ml*6 or 2000ml*4 | 100ml*23 or 250ml*15 or 500ml*9 or 1000ml*6 or 2000ml*4 |
| Flask Clamp / Standard Capacity | 500ml*3; 250ml*3; 100ml*4; 50ml*4 | 500ml*3; 250ml*4; 100ml*5; 50ml*5 | 500ml*3; 250ml*3; 100ml*4; 50ml*4 | 500ml*3; 250ml*4; 100ml*5; 50ml*5 | 500ml*3; 250ml*3; 100ml*4; 50ml*4 | 500ml*3; 250ml*4; 100ml*5; 50ml*5 |
| Sticky Mat(Optional) / Max. Capacity | 100ml*30 or 250ml*20 or 500ml*9 or 1L*8 or 2L*4 | 100ml*30 or 250ml*20 or 500ml*9 or 1L*8 or 2L*4 | 100ml*21 or 250ml*16 or 500ml*9 or 1L*5 or 2L*4 | 100ml*21 or 250ml*16 or 500ml*9 or 1L*5 or 2L*4 | 100ml*21 or 250ml*16 or 500ml*9 or 1L*5 or 2L*4 | 100ml*21 or 250ml*16 or 500ml*9 or 1L*5 or 2L*4 |
| Controller | PID microcomputer | PID microcomputer | PID microcomputer | PID microcomputer | PID microcomputer | PID microcomputer |
| Control Mode | Fixed value mode , static mode, multi-segment program control mode | Fixed value mode , static mode, multi-segment program control mode | Fixed value mode , static mode, multi-segment program control mode | Fixed value mode , static mode, multi-segment program control mode | Fixed value mode , static mode, multi-segment program control mode | Fixed value mode , static mode, multi-segment program control mode |
| Display | Large high efinition LCD | Large high efinition LCD | Large high efinition LCD | Large high efinition LCD | Large high efinition LCD | Large high efinition LCD |
| Timer | 0-9999h (or continuous operation) | 0-9999h (or continuous operation) | 0-9999h (or continuous operation) | 0-9999h (or continuous operation) | 0-9999h (or continuous operation) | 0-9999h (or continuous operation) |
| Refrigerant | / | R134a (CFC free) | / | R134a (CFC free) | / | R134a (CFC free) |
| Defrosting Mode | / | Automatic | / | Automatic | / | Automatic |
| Safety Device | Self-diagnosis ; visible& audible over temperaure ,abnormal status alarm | Self-diagnosis ; visible& audible over temperaure ,abnormal status alarm | Self-diagnosis ; visible& audible over temperaure ,abnormal status alarm | Self-diagnosis ; visible& audible over temperaure ,abnormal status alarm | Self-diagnosis ; visible& audible over temperaure ,abnormal status alarm | Self-diagnosis ; visible& audible over temperaure ,abnormal status alarm |
| Electricity / Voltage/Frequency(V/Hz) | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz |
| Electricity / Consumption (W) | 550 | 650 | 550 | 650 | 550 | 650 |
| N.W./G.W. (kg) | 75/105 | 95/120 | 75/105 | 90/120 | 75/105 | 90/120 |
| Package Dimension (W*D*H) (mm) | 870*870*700 | 870*870*700 | 870*870*705 | 880*880*710 | 870*870*705 | 870*870*705 |
| Optional | Fixture、7 inches touch screen (USB data storage)、UV sterilization device、Illumination | Fixture、7 inches touch screen (USB data storage)、UV sterilization device、Illumination | Fixture、7 inches touch screen (USB data storage)、UV sterilization device、Illumination | Fixture、7 inches touch screen (USB data storage)、UV sterilization device、Illumination | Fixture、7 inches touch screen (USB data storage)、UV sterilization device、Illumination | Fixture、7 inches touch screen (USB data storage)、UV sterilization device、Illumination |
Manufacturer catalogue checked 2026-09-28.
