Brand: Infitek | Category: Scientific & Laboratory Equipment

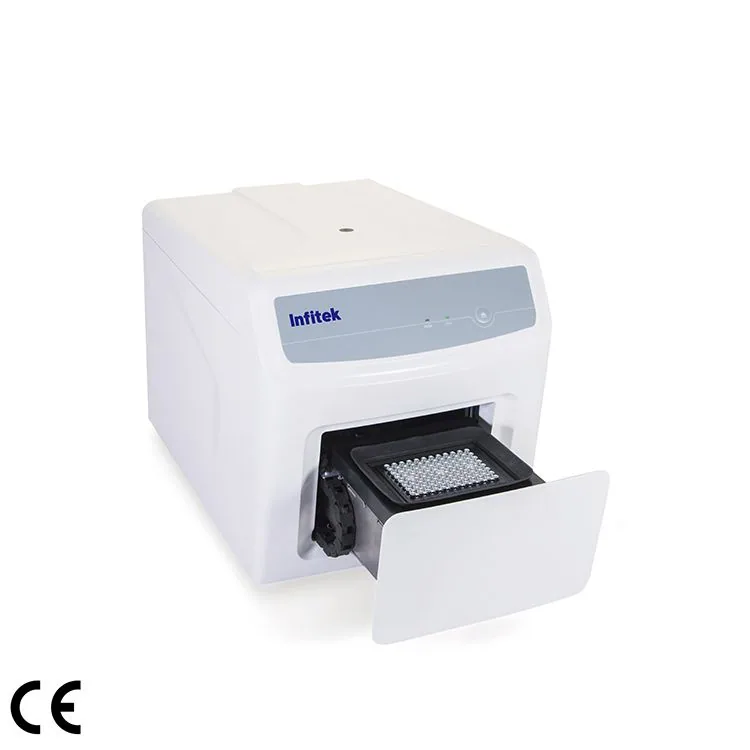

Infitek Real Time PCR System, PCR-Q96 Series is listed in VVON's pcr & nucleic acid equipment range for Bangladesh. Published models: PCR-Q96-5, PCR-Q96-6. Compare sample throughput, reaction format, detection channels and workflow compatibility. For a quotation, send the application, sample throughput, plate or tube format and detection requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Temperature control system | Temperature control system | Temperature control system |
|---|---|---|
| Model | PCR-Q96-5 | PCR-Q96-6 |
| Sample capacity | 0.1ml PCR tubes×96, 8×12 PCR plate or 96 well plate ×1 | 0.1ml PCR tubes×96, 8×12 PCR plate or 96 well plate ×1 |
| Reaction volume | 10-50 μl | 10-50 μl |
| Thermal cycle technology | Peltier | Peltier |
| Max. Heating/Cooling rate | 6.0° C/s | 6.0° C/s |
| Heating temperature range | 4 – 100 °C | 4 – 100 °C |
| Temperature accuracy | ± 0.2°C | ± 0.2°C |
| Temperature uniformity | ±0.2℃ @60℃ , ±0.2℃ @95℃ | ±0.2℃ @60℃ , ±0.2℃ @95℃ |
| Temperature gradient setting range | 30–100°C | 30–100°C |
| Temperature gradient difference setting range | 1 – 36°C | 1 – 36°C |
| Detection system | Detection system | Detection system |
| Excitation light source | 5 monochrome high efficiency LEDs | 6 monochrome high efficiency LEDs |
| Detection device | MPPC | MPPC |
| Detection mode | Time-resolved signal separating technology | Time-resolved signal separating technology |
| Excitation/detection wavelength range | 455-650nm/510-715nm | 455-650nm/510-715nm |
| Fluorescent channels | 4 channels | 6 channels |
| Supported dye | FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ | FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ |
| Sensitivity | Single copy gene | Single copy gene |
| Resolution | 1.33 folds copy number difference can be distinguished in single-plex qPCR | 1.33 folds copy number difference can be distinguished in single-plex qPCR |
| Dynamic range | 10 orders of magnitude copies | 10 orders of magnitude copies |
| Package Dimension (W*D*H)(mm) | 960*660*750 | / |
| G.W.(kg) | 47 | / |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
