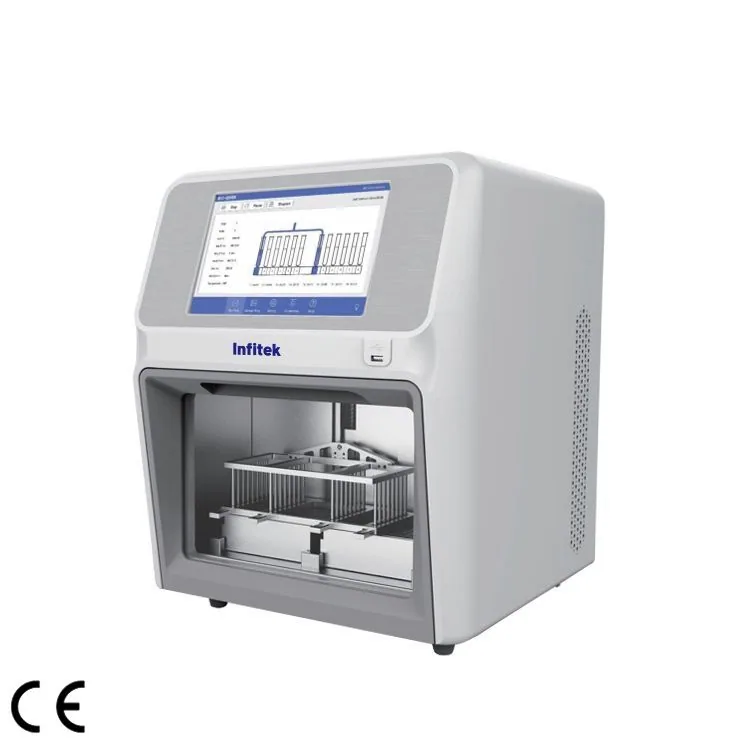

Infitek Automatic Nucleic Acid Extractor, NAE-32P
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Automatic Nucleic Acid Extractor, NAE-32P is listed in VVON's pcr & nucleic acid equipment range for Bangladesh. Published models: NAE-32P. Published details include Process Volume: 20-1000 μL; Operation Temp. Range: 10℃-40℃. Compare sample throughput, reaction format, detection channels and workflow compatibility. For a quotation, send the application, sample throughput, plate or tube format and detection requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | NAE-32P |
|---|---|
| Throughput | 1-32 |
| Process Volume | 20-1000 μL |
| Consumable | 96 deep well Plate+Magnetic rod stip |
| Collection Efficiency | ≥98% |
| Stability | CV≤3% |
| Operation Temp. Range | 10℃-40℃ |
| Humidity Range | 10%—90% |
| Heating Temp.Range | Normal temp.+5℃~125℃ |
| Oscillatory mixed mode | Adjustable |
| Pollution control | UV light |
| Lighting | Yes |
| Safety protection | Auto data protection |
| Reagent type | Magnetic bead reagent |
| Display | 10.1 touch screen，Android operation system |
| Communication | LAN，USB，Wi-Fi |
| Dimension(L*W*H) | 430×390×505 |
| Weight | 30Kg |
| Electricity | AC100~240V 50Hz/60Hz 450W |
Manufacturer catalogue checked 2026-09-28.
