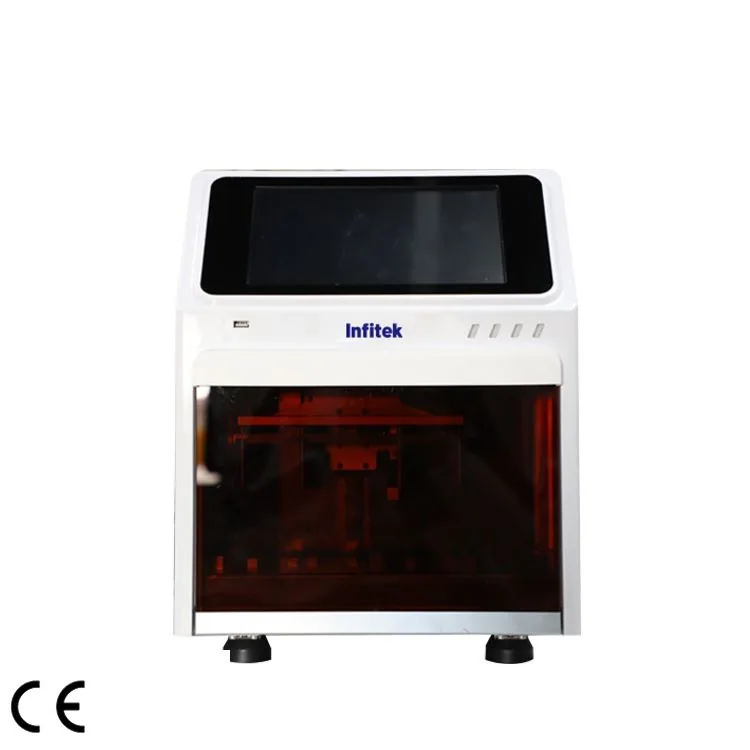

Infitek Nucleic Acid Extractor, Automatic, NAE-0132
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Nucleic Acid Extractor, Automatic, NAE-0132 is listed in VVON's pcr & nucleic acid equipment range for Bangladesh. Published models: NAE-0132. Published details include Working volume: 20-1000ul. Compare sample throughput, reaction format, detection channels and workflow compatibility. For a quotation, send the application, sample throughput, plate or tube format and detection requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | NAE-0132 |
|---|---|
| Working voltage | AC110-240V,50-60Hz |
| Working temperature | 10-40°C |
| Working humidity | Below 80% |
| Specimen flux | 1-32, minimum specimen disposal amount:1 specimen/time |
| Extracted plate position | 2 positions |
| Applicable consumables | 96 deep well plate, 6-well reagent stripe etc. |
| Heating position | Column 2,6,8,12 can be heated |
| Temperature control | 10 – 99°C |
| Working volume | 20-1000ul |
| Magnetic bead recovery rate | >99.5% |
| Screen display | Graphic color control panel is ok for independent use, computer is not needed. |
| Sensation equipment | Pyroelectric technique |
| Operation interface | 10 inch, 1024 x 768 color screen, interchangeable between Chinese and English |
| Net set | Ethernet can be extended to realize remote control |
| Ultraviolet light | Yes |
| Pollution control | Level 11 HEPA filter net |
| External dimension | (405mmx350mmx465mm) mm±10mm |
| Instrument weight | 22.5kg±0.5kg |
| USB interface | Yes |
| Noise | <60db |
| Experiment storage | At most 64 accounts can be established, and each account has at most 100 program storage spaces |
| Program management | Program classified management function is built inside, and the program can be pre-set |
| Oscillatory mix | Adjustable with multiple modules and scales |
| Magnetic absorption module | One step magnetic absorption and multiple magnetic absorption |
| Magnetic absorption cycle time | 1-10 adjustable |
Manufacturer catalogue checked 2026-09-28.
