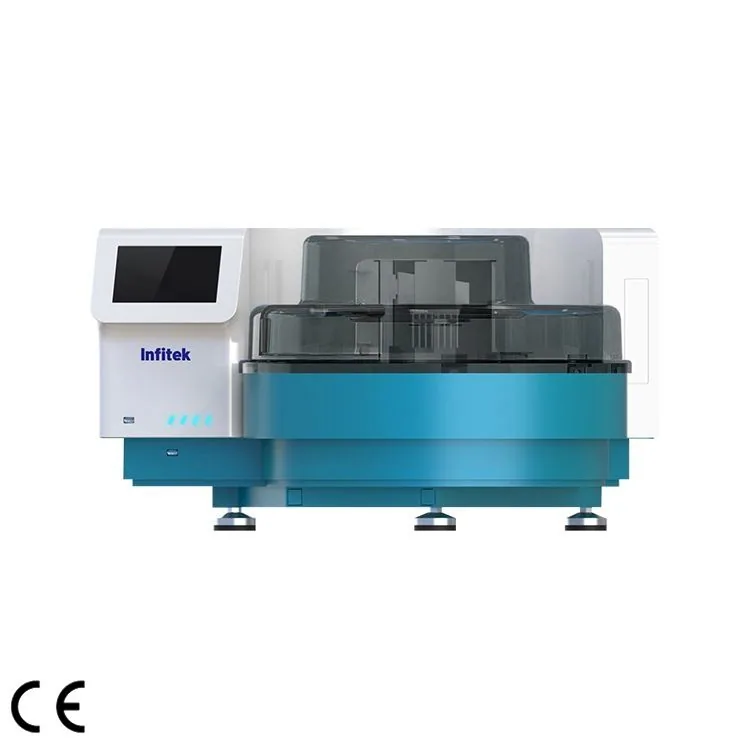

Infitek Nucleic Acid Extractor, Automatic, NAE-0196
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Nucleic Acid Extractor, Automatic, NAE-0196 is listed in VVON's pcr & nucleic acid equipment range for Bangladesh. Published models: NAE-0196. Published details include Sample volume: NAE-0196; Operating temperature range: 5-40℃. Compare sample throughput, reaction format, detection channels and workflow compatibility. For a quotation, send the application, sample throughput, plate or tube format and detection requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | NAE-0196 |
|---|---|
| Sample throughput | 96 |
| Sample volume | NAE-0196 |
| Temperature control | 10 -99℃ |
| Magnetic beads recovery rate | >99.5% |
| Oscillating mixing | Multi-mode and multi-speed adjustable, the amplitude can be automatically adjusted according to the liquid volume |
| Power | 100—240 Vac, 50/60 Hz |
| Data storage | Store>500 groups of programs |
| Operation interface | 7″ 870 xl 550 Color screen, free switch between Chinese and English Interface |
| Power-off protection | Yes |
| Power control | Servo motor |
| Oscillating technology | Super Vibrate |
| Computer interface | RS232 |
| Operating temperature range | 5-40℃ |
| Operating humidity range | Below 80% |
| Weight | 45kg |
| Size | 685mm x 840mm x420mm |
| UV lamp | Yes |
| Contamination control | Level 11 HEPA |
| Package Dimension (W*D*H)(mm) | 880*760*600mm |
| G.W.(kg) | 74 |
Manufacturer catalogue checked 2026-09-28.
