Brand: Infitek | Category: Scientific & Laboratory Equipment

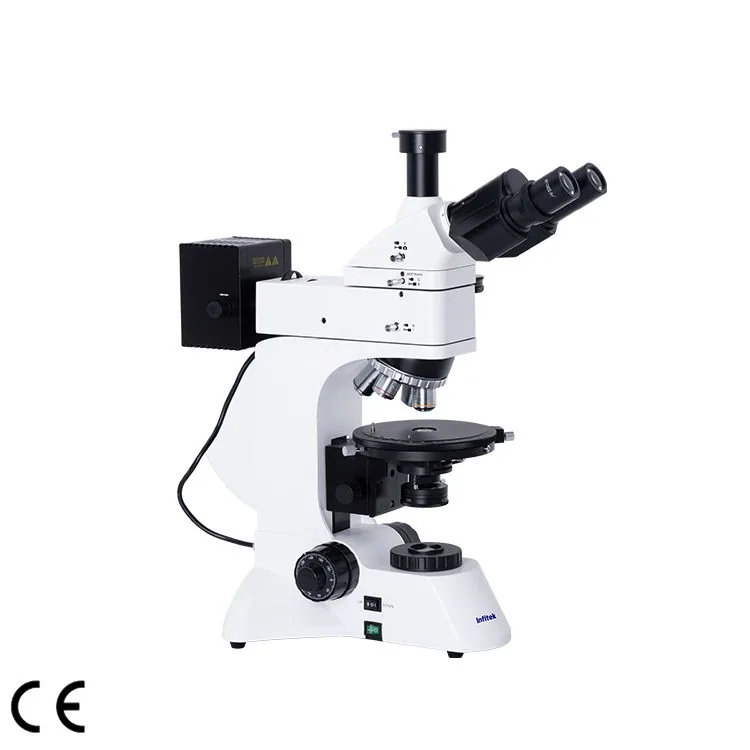

Infitek Polarizing Microscope, MSC-P41M is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MSC-P41M. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MSC-P41M |
|---|---|
| Optics | Infinity optical system |
| Observation Tube | Tilting trinocular, Trinocular split ratio 100:0 or 0:100 |
| Viewing Head | Siedentopf head, inclined at 30° |
| Eyepiece | WF10X / 22mm |
| Eyepiece | Reticule eyepiece 10X / 22mm (Graduation: 0.1mm/div.) |
| Objective | Infinity objective lens PL L5X/0.12, working distance: 26.1mm |
| Objective | Polarizing objective lens 10X |
| Objective | Polarizing objective lens 20X |
| Objective | Polarizing objective lens 60X |
| Nosepiece | Inward-facing Quadruple Nosepiece; Ball-bearing positioning |
| Focusing | Coaxial coarse and fine focusing mechanism with adjustable coarse tension and limit locking device; fine focusing graduation: 2μm |
| Stage | Mechanical X-Y Rotating Stage; Diameter: Φ150mm; 360° graduations; Vernier scale 6′; Center-adjustable with locking device |
| Epi-illumination System | 6V 30W Halogen lamp, with adjustable brightness. |
| Epi-illumination System | Built-in field and aperture diaphragms |
| Epi-illumination System | Filter conversion device (Yellow, Blue, Green, and Ground Glass) |
| Epi-illumination System | Analyzer: 360° rotatable with scale and fine vernier |
| Epi-illumination System | Polarizer: 360° rotatable |
| Intermediate Tube | Push-in Bertrand Lens, center-adjustable |
| Intermediate Tube | Compensators: Gypsum (λ), Mica (1/4λ), and Quartz Wedge |
| Transmitted Illumination | 6V 30W Halogen lamp, brightness adjustable, lamp center adjustable |
| Transmitted Illumination | Abbe Condenser, N.A. 1.25, Height-adjustable |
| Transmitted Illumination | Blue filter |
| Transmitted Illumination | Frosted glass |
| Transmitted Illumination | Polarizer: 360° rotatable with 4 readings (0°, 90°, 180°, 270°) |
Manufacturer catalogue checked 2026-09-28.
