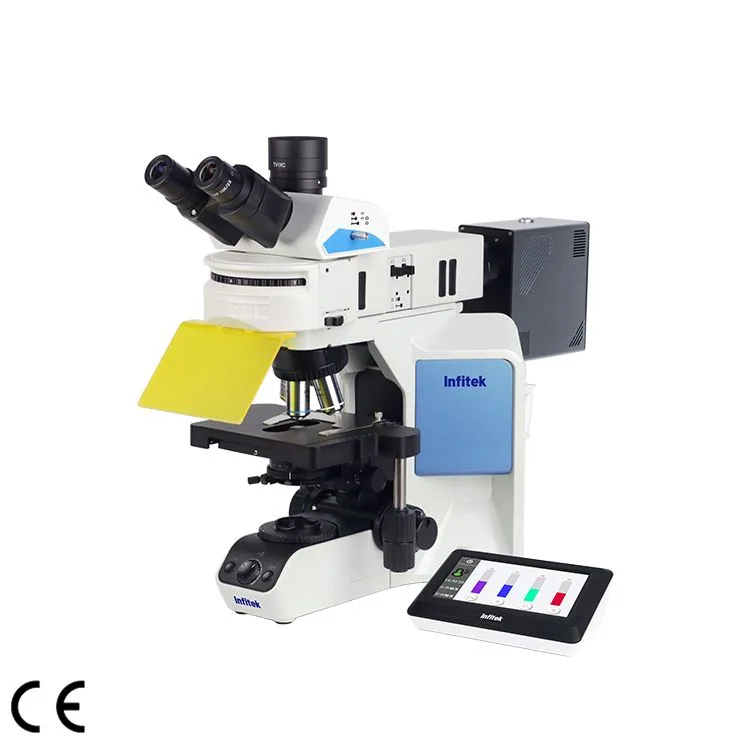

Infitek Fluorescence Microscope, MSC-F43N
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Fluorescence Microscope, MSC-F43N is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MSC-F43N. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MSC-F43N | MSC-F43N |
|---|---|---|
| Optics | Infinity optical system | Infinity optical system |
| Observation Tube | Tilting trinocular, Interpupillary 50-75mm | Tilting trinocular, Interpupillary 50-75mm |
| Viewing Head | Siedentopf head, inclined at 30° | Siedentopf head, inclined at 30° |
| Eyepiece | Wide field 10X/23mm, 10X/25mm (optional) | Wide field 10X/23mm, 10X/25mm (optional) |
| Objective | Light split ratio (Binocular/Trinocular): 100:0/ 20:80/ 0:100 | Light split ratio (Binocular/Trinocular): 100:0/ 20:80/ 0:100 |
| Objective | Plan Semi-Apochromatic Objectives: 4X/10X/40X/100X | Plan Semi-Apochromatic Objectives: 4X/10X/40X/100X |
| Objective | Plan Semi-Apochromatic Objective: 20X (Optional) | Plan Semi-Apochromatic Objective: 20X (Optional) |
| Epi-fluorescence Illumination System | Wide-spectrum high-power LED fluorescence source MG-100 (Standard); 4-channel light source MG-120 (Optional) | Wide-spectrum high-power LED fluorescence source MG-100 (Standard); 4-channel light source MG-120 (Optional) |
| Epi-fluorescence Illumination System | Touch-screen controller | Touch-screen controller |
| Epi-fluorescence Illumination System | Epi-fluorescence Illuminator FL-43 (6-position turret, standard BGU 3-channel, optional YVR, etc.) | Epi-fluorescence Illuminator FL-43 (6-position turret, standard BGU 3-channel, optional YVR, etc.) |
| Epi-fluorescence Illumination System | Filter Set FB-U-M | EX: 375/30nm; DM: 415nm; EM: 460/50nm |
| Epi-fluorescence Illumination System | Filter Set FB-B-M | EX: 475/30nm; DM: 505nm; EM: 530/40nm |
| Epi-fluorescence Illumination System | Filter Set FB-G-M | EX: 540/25nm; DM: 565nm; EM: 605/55nm |
| Epi-fluorescence Illumination System | V Band (Optional) | EX: 405/30nm; DM: 440nm; EM: 450nm LP |
| Epi-fluorescence Illumination System | R Band (Optional) | EX: 620/50nm; DM: 655nm; EM: 692/45nm |
| Epi-fluorescence Illumination System | Y Band (Optional) | EX: 560/40nm; DM: 600nm; EM: 610nm LP |
| Epi-fluorescence Illumination System | Dual-band B/G (Optional) | EX: 470/40 & 575/35nm; EM: 525/40 & 625/60nm |
| Epi-fluorescence Illumination System | Royal Blue B2 (Optional) | EX: 450/50nm; DM: 485nm; EM: 495nm LP |
| Epi-fluorescence Illumination System | Yellow G2 (Optional) | EX: 560/40nm; DM: 600nm; EM: 610nm LP |
| Nosepiece | Inward quintuple nosepiece | Inward quintuple nosepiece |
| Stage | Highly wear-resistant ceramic-coated stage; Moving range: 80×50mm; Precision: 0.1mm | Highly wear-resistant ceramic-coated stage; Moving range: 80×50mm; Precision: 0.1mm |
| Focusing | Coaxial coarse and fine adjustment, focusing stroke 25mm, with upper limit stop position for coarse adjustment, the torque of the coarse adjustment knob is adjustable, and the fine adjustment scale is 1μm | Coaxial coarse and fine adjustment, focusing stroke 25mm, with upper limit stop position for coarse adjustment, the torque of the coarse adjustment knob is adjustable, and the fine adjustment scale is 1μm |
| Transmitted Illumination | Abbe condenser, N.A. 1.1, Kohler illumination | Abbe condenser, N.A. 1.1, Kohler illumination |
| Transmitted Illumination | Warm white LED light source, continuously adjustable brightness, with light intensity manager | Warm white LED light source, continuously adjustable brightness, with light intensity manager |
Manufacturer catalogue checked 2026-09-28.
