Brand: Infitek | Category: Scientific & Laboratory Equipment

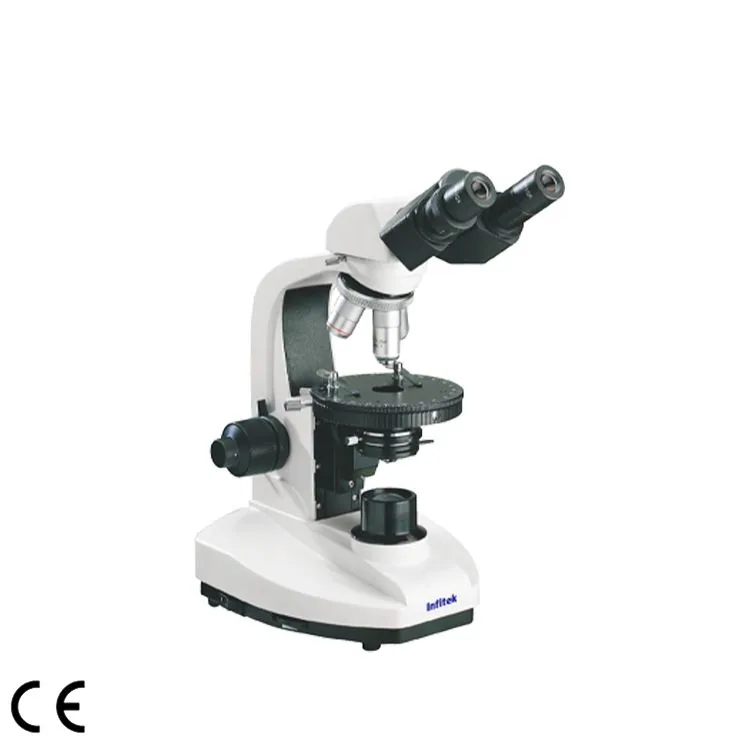

Infitek Polarizing Microscope, MSC-P20M is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MSC-P20M. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MSC-P20M |
|---|---|
| Eyepiece | Wide-field WF10X (φ18mm) |
| Objective | Achromatic objective 4X/0.10 |
| Objective | Achromatic objective 10X/0.25 |
| Objective | Achromatic objective 40X/0.65 (Spring) |
| Objective | Achromatic objective 100X/1.25 (Spring, Oil) |
| Viewing Head | Binocular/Trinocular (optional), inclined at 30° |
| Analyzer | Sliding |
| Focusing System | Coaxial coarse and fine focusing mechanism with tension adjustment and limit locking device; fine focusing graduation: 2μm |
| Nosepiece | Inward-facing Quadruple Nosepiece; Ball-bearing positioning |
| Stage | Rotating stage (φ120mm) |
| Condenser | Abbe Condenser, N.A.1.25, Rack & pinion vertical adjustable |
| Filter | Blue filter |
| Filter | Frosted glass |
| Polarizer | 360° rotatable |
| Collector | Applicable for halogen lamp illumination |
| Illumination | 6V 20W Halogen lamp; Adjustable brightness |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
