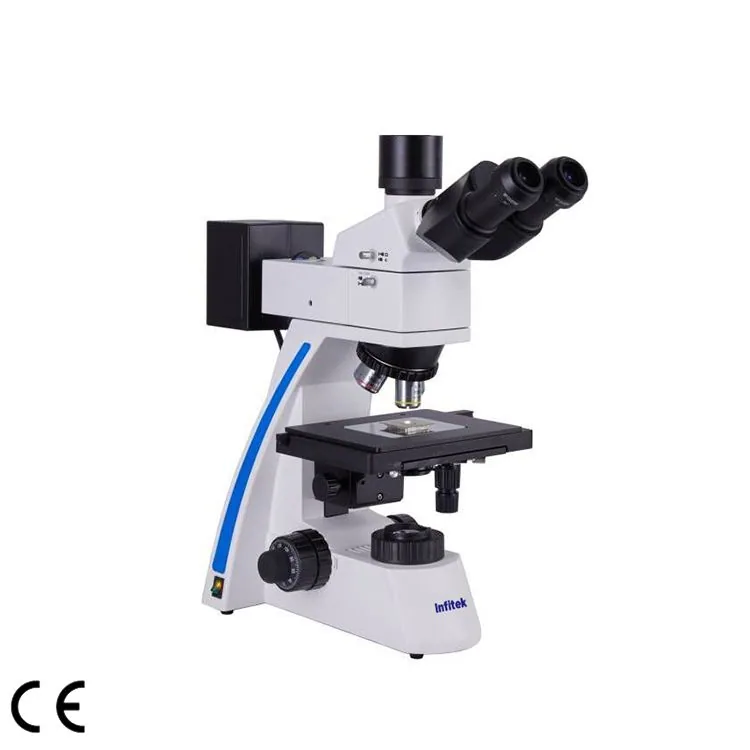

Infitek Metallurgical Microscope, MSC-M31J
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Metallurgical Microscope, MSC-M31J is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MSC-M31J. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MSC-M31J |
|---|---|
| Optics | Infinity optical system |
| Observation Tube | Tilting trinocular, Interpupillary 55~75mm |
| Viewing Head | Siedentopf head, inclined at 30° |
| Eyepiece | Wide field WF10X/ F.N.22 mm |
| Objectives | Long working distance plan objectives L Plan 5X/0.12, working distance 23.6 mm |
| Objectives | Long working distance plan objectives L Plan 10X/0.25, working distance 17.7 mm |
| Objectives | Long working distance plan objectives L Plan 20X/0.40, working distance 10.4 mm |
| Objectives | Long working distance plan objectives L Plan 50X/0.55, working distance 7 mm |
| Objectives | Long working distance plan objectives L Plan 100X/0.8, working distance 3.2 mm (optional) |
| Nosepiece | Inward-facing quadruple nosepiece |
| Stage | Double-layer mechanical stage, Size: 210×140mm, Moving range:75×50mm |
| Condenser | Abbe N.A.1.25 condenser with Iris diaphragm, height adjustable |
| Focusing | Coaxial coarse and fine adjustment, with locking and limit device, fine division 2μm, coarse stroke 40mm per rotation, fine stroke 0.2mm per rotation, focusing range 24mm |
| Epi-illumination System | Kohler illumination with filters including green, blue, yellow and gross glass |
| Transmitted Illumination | Abbe condenser N.A.1.25 |
| Transmitted Illumination | White LED with adjustable brightness |
