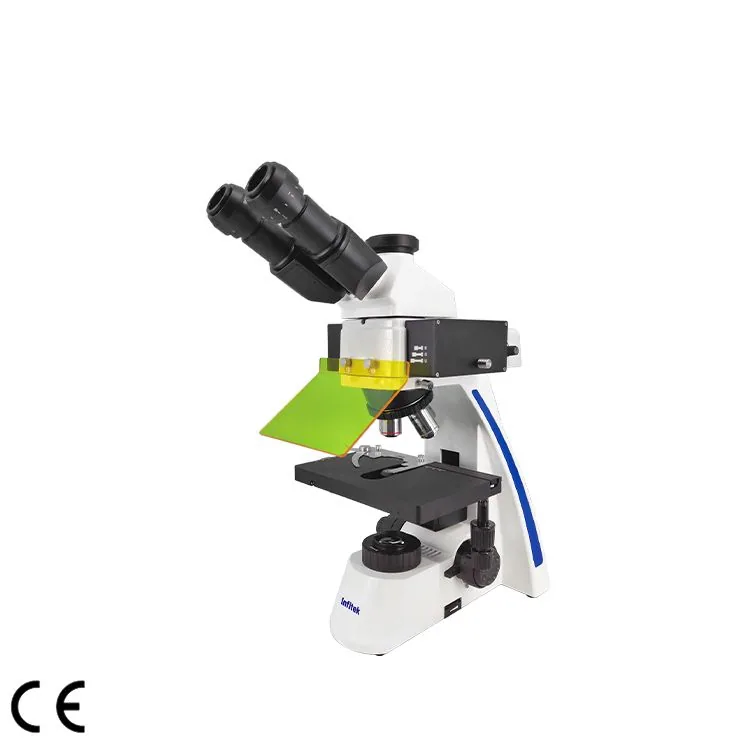

Infitek Fluorescence Microscope, MSC-F31
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Fluorescence Microscope, MSC-F31 is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MSC-F31. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MSC-F31 |
|---|---|
| Optics | Infinity optical system |
| Observation Tube | Tilting trinocular, Interpupillary 53~75mm |
| Viewing Head | Siedentopf head, inclined at 30° |
| Eyepiece | Wide field WF10X /FN 22mm |
| Objectives | Infinity Plan Achromatic Objective 4X/0.1 W.D.=21.5 mm |
| Objectives | Infinity Plan Achromatic Objective 10X/0.25 W.D.=7.5 mm |
| Objectives | Infinity Plan Achromatic Objective 40X/0.65 W.D.=0.65 mm |
| Objectives | Infinity Plan Achromatic Objective 100X/1.25 W.D.=0.185 mm |
| Nosepiece | Inward quadruple nosepiece |
| Stage | Double-layer mechanical stage, Size: 210×140mm, Moving range:76×50mm |
| Focusing | Coaxial coarse and fine adjustment, with tension and limited stopper, fine division 2μm, coarse stroke 40mm per rotation, fine stroke 0.2mm per rotation, focusing range 24mm |
| Condenser | Abbe N.A.1.25 condenser with Iris diaphragm |
| Kohler Illumination | White LED, brightness adjustable |
| Fluorescence Illumination | EF:420-480nm /DM:>500nm /BF: >510nm, Blue LED |
| Electricity | AC 100-240V, 50-60Hz |
| Camera Port | 0.5X C-mount adapter |
| Optional | Polarizing Attachment, Dark field Attachment, Phase Contrast Attachment |
Manufacturer catalogue checked 2026-09-28.
