Brand: BIOBASE | Category: Scientific & Laboratory Equipment

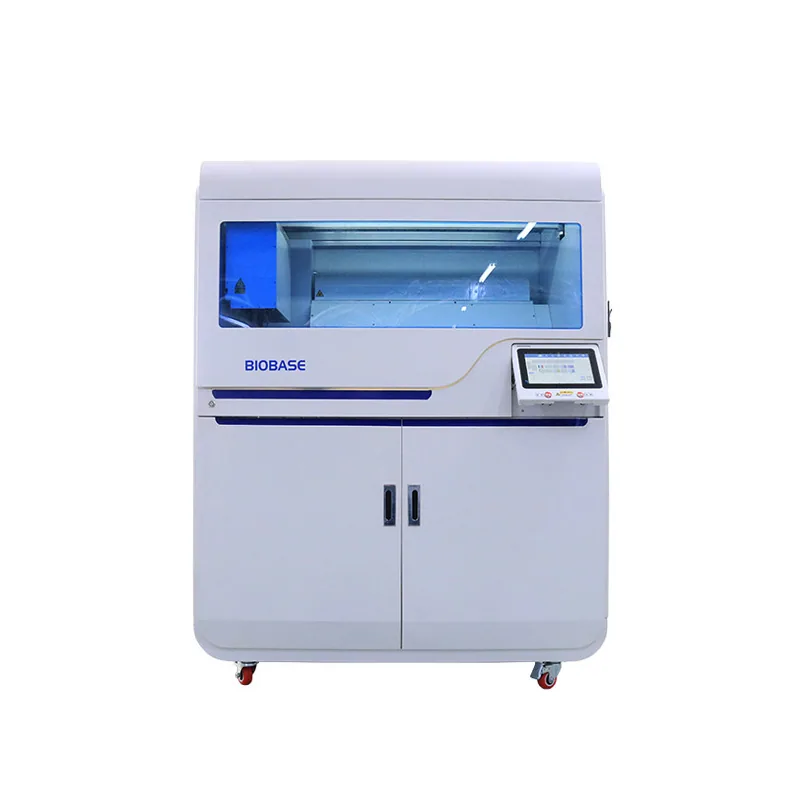

BIOBASE Automatic Nucleic Acid Extraction System is listed in VVON's pcr & nucleic acid equipment range for Bangladesh. Published models: BK-AutoHS96. Published details include Extraction Volume: 20-1000ul; Temp Range: RT-105℃, Lysis and elution position. Compare sample throughput, reaction format, detection channels and workflow compatibility. For a quotation, send the application, sample throughput, plate or tube format and detection requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-AutoHS96 |
|---|---|
| Extraction Method | Magnetic Bead Method |
| Working Mode | Automatic sampling + Nucleic acid extraction + PCR reaction system addition |
| Throughput | 1-96, Linear slide type sample rack |
| Extraction Volume | 20-1000ul |
| Processing Time | Complete the processing of 96 samples within 60 minutes (related to reagents) |
| Magnetic Bead Recovery | ≥98% |
| Temp Range | RT-105℃, Lysis and elution position |
| Temp Accuracy | 0.1℃ |
| Heating Method | Dry bath heating |
| Heating Speed | RT-100℃≤6min |
| Shaking Function | Up and down oscillation (1-5 gears adjustable) |
| Extraction Position | 6 (96-well deep well plate) |
| Robotic arm | A robotic arm for adding samples and reagents |
| Pipetting Channel | 2 Channel |
| Liquid Detection | Pneumatic liquid level detection principle, intelligent detection of blocked needle |
| Pipetting Tip | 50ul,200ul,1000ul, Disposable black conductive needle with filter element |
| Tip Amount | 2-3 Tips/sample |
| Pipetting Accuracy | 10ul, CV≤3.0%, Accuracy≤5.0%, 50ul Tip |
| Pipetting Accuracy | 50ul, CV≤2.0%, Accuracy≤2.0%, 1000ul Tip |
| Pipetting Accuracy | 100ul, CV≤1.5%, Accuracy≤2.0%, 1000ul Tip |
| Sample Volume | 2-1000ul |
| Working Zone | 2 PCR positions with cooling function |
| Working Zone | 6 Tip positions for three types of Tips |
| Working Zone | 2 Reagent positions (5ml freezing tube rack position with cooling function, one reserved position) |
| Protective function | Start up self-test, Power-off protection, High temperature alarm, Over-temperature protection, Tip removal protection |
| Disinfection method | UV lamp (30W*1, 8W*1) |
| Illumination Lamp | 10W LED lamp |
| Audible Alarm | Yes (Red and blue blinking) |
| Safety Door Design | With safety lock function, the safety door is opened and the program is suspended |
| Display | 10.1inch touch screen, Windows System |
| Scanning | Optional |
| Interface | LAN interface (Bi-direction LIS optional) |
| Contamination control | Built-in air duct and HEPA filter can effectively filter internal aerosols and prevent cross-contamination |
| IAP Function | Firmware can be upgraded online at any time |
| Power Supply | 110/220V,50/60Hz |
| External Size (W*D*H) | 1420*850*1842mm |
| Package Size (WD*H) | 1535*970*1180mm (Main instrument) 1540*970*1160mm(Base) |
| Gross Weight | 360kg(Main instrument) ;190kg(Base) |
Manufacturer catalogue checked 2026-09-28.
