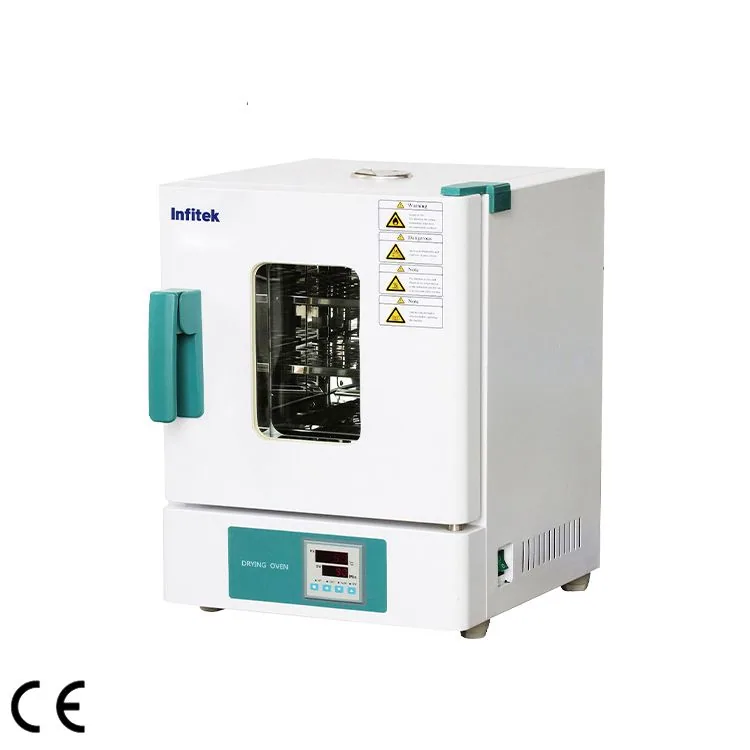

Infitek Natural Convection Drying Oven, Horizontal Type, DON-18E, DON-18 is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: DON-18E, DON-18. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DON-18E | DON-18 |
|---|---|---|
| Cycle Mode | Natural convection | Natural convection |
| Volume | 18L | 18L |
| Temp. Range | RT+10~300℃ | RT+10~300℃ |
| Temp. Resolution | 0.1℃ | 0.1℃ |
| Temp. Uniformity | ±3.5% | ±3.5% |
| Inner Chamber Material | High strength galvanized sheet | Mirror Stainless Steel |
| Structure | External material: cold rolling steel electrostatic spraying; Insulation: High quality rock wool board (with CE); Heater: Nickel chromium alloy heating wire; Exhaust hole: φ28mm top (with function of test hole); | External material: cold rolling steel electrostatic spraying; Insulation: High quality rock wool board (with CE); Heater: Nickel chromium alloy heating wire; Exhaust hole: φ28mm top (with function of test hole); |
| Controller | Temp. sensor: PT100; Temp. set: soft touch button; Temp. control: Intelligent PID for Two temperature section; Setting temperature: display on the lower row; Measuring temperature: display on the four digital tubes upper row; Operation function: fixed temperature operation, timing function, auto stop; Additional function: Sensor deviation correction, temperature overshoot, self-tuning, internal parameter locking, power-off parameter memory; | Temp. sensor: PT100; Temp. set: soft touch button; Temp. control: Intelligent PID for Two temperature section; Setting temperature: display on the lower row; Measuring temperature: display on the four digital tubes upper row; Operation function: fixed temperature operation, timing function, auto stop; Additional function: Sensor deviation correction, temperature overshoot, self-tuning, internal parameter locking, power-off parameter memory; |
| Timing Setting | 0~9999mins(with timing wait function) | 0~9999mins(with timing wait function) |
| Alarm | Over-temperature Alarm, audible and visual alarm | Over-temperature Alarm, audible and visual alarm |
| Shelves | 2pcs/adjustable, max. load 15kg/shelf, shelf space 29mm | 2pcs/adjustable, max. load 15kg/shelf, shelf space 29mm |
| Consumption | 600W | 600W |
| Power Supply | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz |
| Internal Size(W*D*H) | 260*260*260mm | 260*260*260mm |
| External Size(W*D*H) | 380*455*568mm | 380*455*568mm |
| Package Size(W*D*H) | 500*530*657mm | 500*530*657mm |
| Net/Gross Weight | 27/35kg | 27/35kg |
Manufacturer catalogue checked 2026-09-28.
