Brand: Infitek | Category: Scientific & Laboratory Equipment

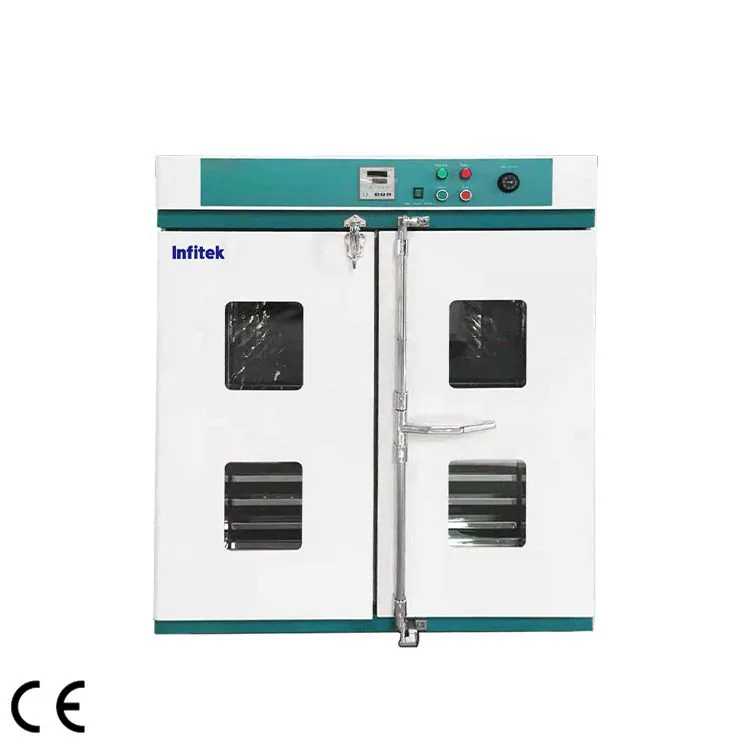

Infitek Big Forced Air Drying Oven, DOF 640-3070 Series is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: DOF-640E; /DOF-640, DOF-1000E; /DOF-1000, DOF-1300E; /DOF-1300, DOF-1870E; /DOF-1870, DOF-3070E; /DOF-3070. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| DOF-640E/DOF-640 | DOF-1000E/DOF-1000 | DOF-1300E DOF-1300 DOF-1870E DOF-1870 DOF-3070E DOF-3070 |
|---|
| Model | DOF-640E; /DOF-640 | DOF-1000E; /DOF-1000 | DOF-1300E; /DOF-1300 | DOF-1870E; /DOF-1870 | DOF-3070E; /DOF-3070 |
|---|---|---|---|---|---|
| Capacity(L) | 640 | 1000 | 1300 | 1870 | 3070 |
| Circulation Mode | Forced convection | Forced convection | Forced convection | Forced convection | Forced convection |
| Dimension(W*D*H) / Internal (mm) | 800*800*1000 | 1000*1000*1000 | 1000*1000*1300 | 1200*1200*1300 | 1600*1200*1600 |
| Dimension(W*D*H) / External (mm) | 940*1000*1400 | 1040*1200*1400 | 1230*1200*1670 | 1330*1400*1670 | 1750*1400*2070 |
| Temperature / Range (℃) | RT+10~250 | RT+10~250℃ | RT+10~300℃ | RT+10~300℃ | RT+10~300℃ |
| Temperature / Fluctuation (℃) | ±1 | ±1 | ±1 | ±1 | ±1 |
| Temperature / Resolution (℃) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Temperature / Uniformity (℃) | ±3% | ±3% | ±3% | ±3% | ±3% |
| Temperature / Sensor | PT100 | PT100 | PT100 | PT100 | PT100 |
| Controller | PID | PID | PID | PID | PID |
| Display | Digital LED | Digital LED | Digital LED | Digital LED | Digital LED |
| Timer | 0~9999min(with timing wait function) | 0~9999min(with timing wait function) | 0~9999min(with timing wait function) | 0~9999min(with timing wait function) | 0~9999min(with timing wait function) |
| Material / Internal | E: Iron sheet Without E :Stainless steel | E: Iron sheet Without E :Stainless steel | E: Iron sheet Without E :Stainless steel | E: Iron sheet Without E :Stainless steel | E: Iron sheet Without E :Stainless steel |
| Material / External | Galvanized sheet electrostatic spraying exterior | Galvanized sheet electrostatic spraying exterior | Galvanized sheet electrostatic spraying exterior | Galvanized sheet electrostatic spraying exterior | Galvanized sheet electrostatic spraying exterior |
| Shelves(Standard / Max ) | 2 / 11 | 2 / 11 | 2 / 11 | 2 / 11 | 2 / 12 |
| Exhaust Hole | On top or side | On top or side | On top or side | On top or side | On top or side |
| Safety Device | Over temperaure visible& audible alarm, overheat power off | Over temperaure visible& audible alarm, overheat power off | Over temperaure visible& audible alarm, overheat power off | Over temperaure visible& audible alarm, overheat power off | Over temperaure visible& audible alarm, overheat power off |
| Electricity / Voltage/Frequency | 380V, 50Hz | 380V, 50Hz | 380V, 50Hz | 380V, 50Hz | 380V, 50Hz |
| Electricity / Consumption (W) | 6000 | 6600 | 9000 | 12000 | 15000 |
| N.W./G.W. (kg) | 200/ 250 | 260/ 310 | 350/ 400 | 480/530 | 800/850 |
| Shipping Dimension (W*D*H) (mm) | 1040*1110*1520 | 1260*1290*1520 | 1350*1300*1890 | 1550*1500*1890 | 1950*1500*2290 |
| Optional | Multi-segment programable control,spare shelf ,RS485 port,,built-in printer | Multi-segment programable control,spare shelf ,RS485 port,,built-in printer | Multi-segment programable control,spare shelf ,RS485 port,,built-in printer | Multi-segment programable control,spare shelf ,RS485 port,,built-in printer | Multi-segment programable control,spare shelf ,RS485 port,,built-in printer |
Manufacturer catalogue checked 2026-09-28.
