Brand: Infitek | Category: Scientific & Laboratory Equipment

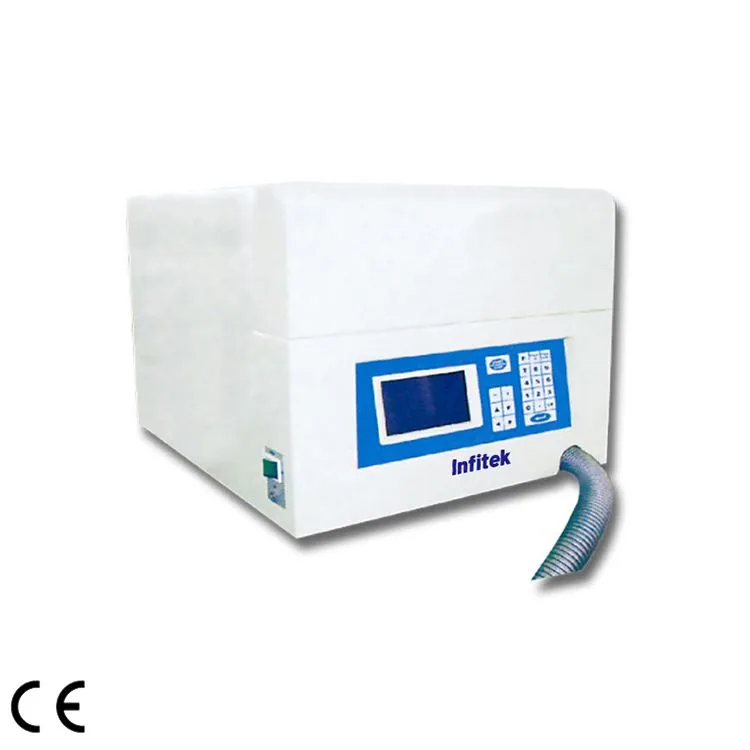

Infitek Graphite Furnace System, GRD-3202 is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: GRD-3202. Published details include Temperature range (nominal Temperature): 20℃~3000℃. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | GRD-3202 |
|---|---|
| Heating steps | 9 steps |
| Temperature range (nominal Temperature) | 20℃~3000℃ |
| Slope heating time | 0~999s |
| Heating holding time | 1s~999s (the sum of both time should be less than 999 seconds) |
| Inert gas needed | Argon, pressure of entry larger than 0.3Mpa |
| Cooling water | Tap water or cycling water, flow rate no less than 2L/min |
| Output | LCD |
| Power source | 220V±22V, 50Hz±1Hz, 3A 220V±22V, 50Hz±1Hz, 30A |
| Power | 5.1kW for 220V on about 2700℃ |
| Ambient temperature | +10℃~+30℃ |
| Relative humidity | Less than 85% |
| Instrument rating power | 7.2kW |
| Gas pressure alarm, furnace overheated alarm | Gas pressure alarm, furnace overheated alarm |
| Interface with Atomic absorption spectrophotometer, autosampler and RS232 | Interface with Atomic absorption spectrophotometer, autosampler and RS232 |
| High-power temperature heating function (1000℃~2700℃) | High-power temperature heating function (1000℃~2700℃) |
| Test sample together with atom absorption equipment. Cd ≤1×10^-12g; Cu ≤1×10^-10g | Test sample together with atom absorption equipment. Cd ≤1×10^-12g; Cu ≤1×10^-10g |
| Package Dimension (W*D*H)(mm) | 730*660*910 |
