Brand: Infitek | Category: Scientific & Laboratory Equipment

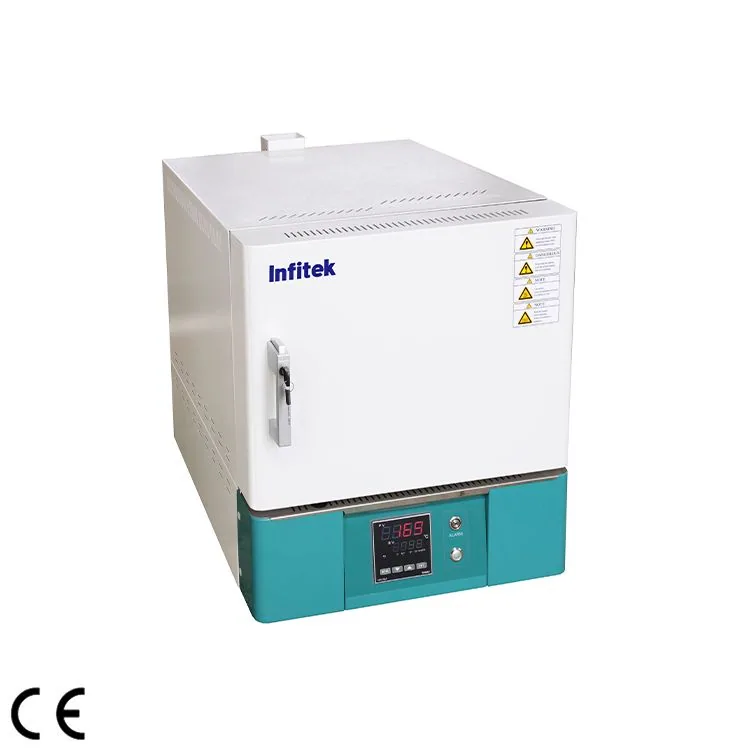

Infitek Muffle Furnace, FNC-BX1200E Series is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: FNC-BX1200-2.5E, FNC-BX1200-5E, FNC-BX1200-8E, FNC-BX1200-10E. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | FNC-BX1200-2.5E | FNC-BX1200-2.5E | FNC-BX1200-5E | FNC-BX1200-5E | FNC-BX1200-8E | FNC-BX1200-8E | FNC-BX1200-10E |
|---|---|---|---|---|---|---|---|
| Heating mode | Alloy wire heating in three sides left; right; top side. | Alloy wire heating in three sides left; right; top side. | Alloy wire heating in three sides left; right; top side. | Alloy wire heating in three sides left; right; top side. | Alloy wire heating in three sides left; right; top side. | Alloy wire heating in three sides left; right; top side. | Alloy wire heating in three sides left; right; top side. |
| Temperature / Max. Temp(℃) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Temperature / Accuracy(℃) | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Temperature / Heating Rate | ≤30min | ≤30min | ≤30min | ≤30min | ≤30min | ≤30min | ≤30min |
| Chamber Dimension(W*D*H)(mm) | 120*200*80 | 200*300*120 | 200*300*120 | 200*300*200 | 200*300*200 | 250*400*160 | 250*400*160 |
| External Size(W*D*H)(mm) | 450*685*600 | 530*785*640 | 530*785*640 | 530*785*720 | 530*785*720 | 600*895*700 | 600*895*700 |
| Capacity(L) | 2 | 7 | 7 | 12 | 12 | 16 | 16 |
| Heating Element | Alloy heating wire | Alloy heating wire | Alloy heating wire | Alloy heating wire | Alloy heating wire | Alloy heating wire | Alloy heating wire |
| Thermocouple | K type | K type | K type | K type | K type | K type | K type |
| Chamber Material | Ceramic fiber | Ceramic fiber | Ceramic fiber | Ceramic fiber | Ceramic fiber | Ceramic fiber | Ceramic fiber |
| Outer shell | cold rolling steel electrostatic spraying exterior | cold rolling steel electrostatic spraying exterior | cold rolling steel electrostatic spraying exterior | cold rolling steel electrostatic spraying exterior | cold rolling steel electrostatic spraying exterior | cold rolling steel electrostatic spraying exterior | cold rolling steel electrostatic spraying exterior |
| Temp. control mode | E Type : domestic Xianmen Yudian single-stage temperature controller | E Type : domestic Xianmen Yudian single-stage temperature controller | E Type : domestic Xianmen Yudian single-stage temperature controller | E Type : domestic Xianmen Yudian single-stage temperature controller | E Type : domestic Xianmen Yudian single-stage temperature controller | E Type : domestic Xianmen Yudian single-stage temperature controller | E Type : domestic Xianmen Yudian single-stage temperature controller |
| Electricity | AC220V/6.6A; 50/60HZ | AC220V/6.6A; 50/60HZ | AC220V/13.6A; 50/60HZ | AC220V/13.6A; 50/60HZ | AC220V/20.4A; 50/60HZ | AC220V/20.4A; 50/60HZ | AC380V/9.9A; 50/60HZ |
| Max. Consumption | 1.5kW | 1.5kW | 3.0kW | 3.0kW | 4.5kW | 4.5kW | 6.0kW |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
