Brand: Infitek | Category: Scientific & Laboratory Equipment

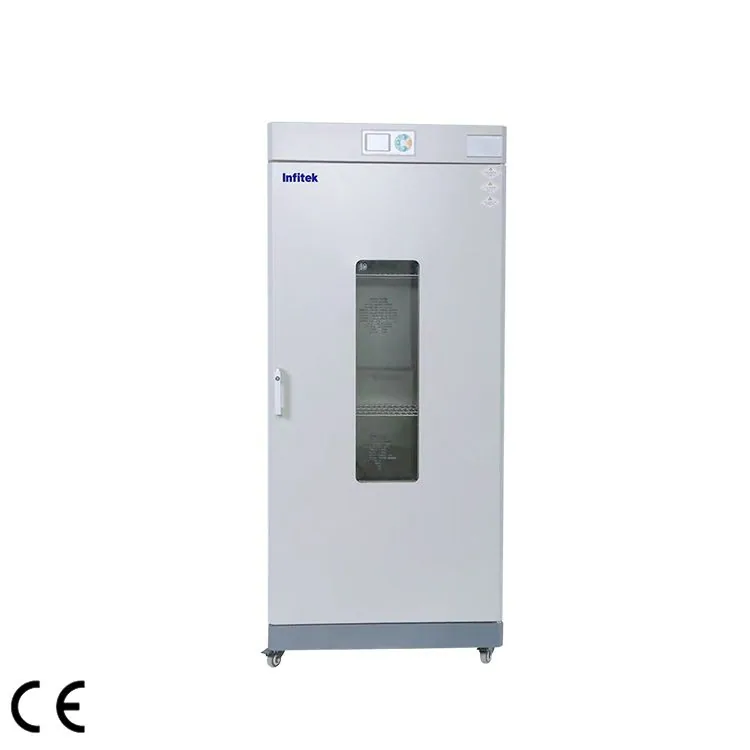

Infitek Forced Air Drying Oven, DOF-V420-V900 AB Series is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: DOF-V420A; DOF-V420B, DOF-V600A; DOF-V600B, DOF-V900A; DOF-V900B. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DOF-V420A; DOF-V420B | DOF-V600A; DOF-V600B | DOF-V900A; DOF-V900B |
|---|---|---|---|
| Capacity(L) | 420 | 600 | 900 |
| Circulation | Forced air convection | Forced air convection | Forced air convection |
| Dimension(W*D*H) / Internal(mm) | 600*550*1300 | 800*600*1300 | 1000*600*1600 |
| / External(mm) | 750*730*1700 | 950*780*1720 | 1140*800*2150 |
| Temperature / Range(℃) | RT+10-250 RT+10-300 | RT+10-250 RT+10-300 | RT+10-250 RT+10-300 |
| Temperature / Fluctuation (℃) | ±0.5 | ±0.5 | ±0.5 |
| Temperature / Resolution (℃) | ±0.1 | ±0.1 | ±0.1 |
| Temperature / Uniformity(℃) | 25% | 25% | 25% |
| Temperature / Sensor | PT100 | PT100 | PT100 |
| Controller | PID | PID | PID |
| Display | LCD | LCD | LCD |
| Timer(min) | 1-9999 | 1-9999 | 1-9999 |
| Material / Internal | Stainless steel | Stainless steel | Stainless steel |
| Material / External | Electro-galvanized steel with antimicrobial powder coating | Electro-galvanized steel with antimicrobial powder coating | Electro-galvanized steel with antimicrobial powder coating |
| Shelves | 3pcs | 4pcs | 4pcs |
| Test Hole | Optional φ25,50,80mm | Optional φ25,50,80mm | Optional φ25,50,80mm |
| Safety Device | Leakage protector/Over- temperature alarm | Leakage protector/Over- temperature alarm | Leakage protector/Over- temperature alarm |
| Electricity / Voltage/Frequency(V/Hz) | 380/50 | 380/50 | 380/50 |
| Electricity / Consumption (W) | 4000; 4500 | 4500; 5000 | 6000; 6500 |
| N. W./G.W.(kg) | 120/145 | 145/170 | 195/230 |
| Shipping Dimension (W*D*H) (mm) | 950*910*1910 | 1080*910*1880 | 910*1260*2200 |
| Optional | 1.Independent temperature limiting controller | 1.Independent temperature limiting controller | 1.Independent temperature limiting controller |
| Optional | 2.Intelligent LCD procedure temperature controller (Optional USB,RS485/232 and printer) | 2.Intelligent LCD procedure temperature controller (Optional USB,RS485/232 and printer) | 2.Intelligent LCD procedure temperature controller (Optional USB,RS485/232 and printer) |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
