Brand: Infitek | Category: Scientific & Laboratory Equipment

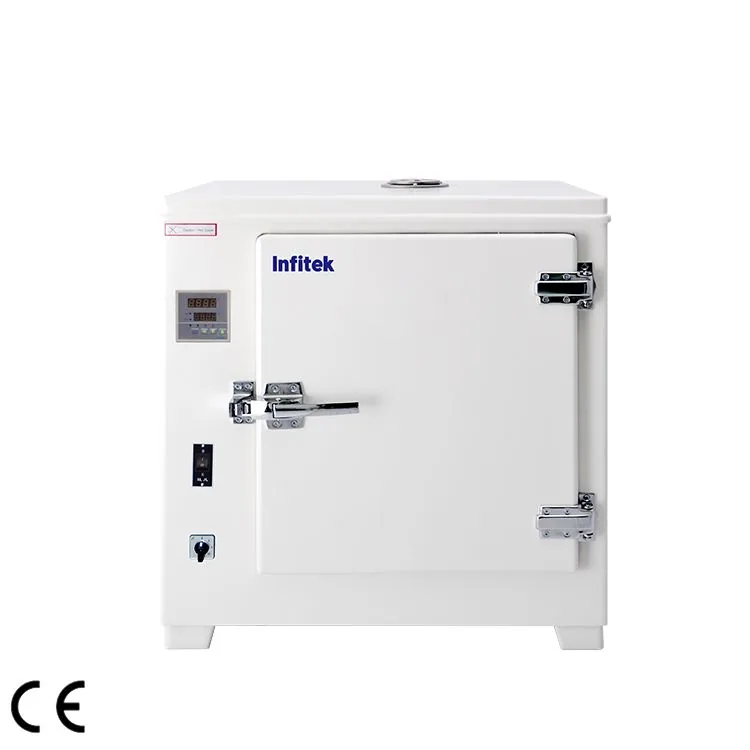

Infitek Dual Convection Oven, DOF-HZ Series is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: DOF-H42Z, DOF-H70Z, DOF-H135Z, DOF-H224Z. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DOF-H42Z | DOF-H70Z | DOF-H135Z | DOF-H224Z |
|---|---|---|---|---|
| Capacity (L) | 42 | 70 | 135 | 224 |
| Circulation Mode | Forced convection, Bottom heating | Forced convection, Bottom heating | Forced convection, Bottom heating | Forced convection, Bottom heating |
| Dimensions (W*D*H) / Internal (mm) | 350*348*350 | 450*348*450 | 550*448*550 | 600*498*750 |
| Dimensions (W*D*H) / External (mm) | 677*527*642 | 777*527*742 | 877*627*842 | 927*677*1042 |
| Temperature Range (°C) | 50-300 | 50-300 | 50-300 | 50-300 |
| Temperature Uniformity (°C) | ≤ Max. Temp. ±2.5% | ≤ Max. Temp. ±2.5% | ≤ Max. Temp. ±2.5% | ≤ Max. Temp. ±2.5% |
| Temperature Fluctuation (°C) | ±1 | ±1 | ±1 | ±1 |
| Shelves | 2 | 2 | 3 | 3 |
| Electricity / Voltage / Frequency | 1Ø, 220V/50Hz | 1Ø, 220V/50Hz | 1Ø, 220V/50Hz | 1Ø, 220V/50Hz |
| Electricity / Consumption (W) | 1600 | 2400 | 3000 | 4000 |
| Alarm Type | Over temperature alarm, temperature probe damage alarm | Over temperature alarm, temperature probe damage alarm | Over temperature alarm, temperature probe damage alarm | Over temperature alarm, temperature probe damage alarm |
| Optional | Shelf | Shelf | Shelf | Shelf |
Manufacturer catalogue checked 2026-09-28.
