Brand: Infitek | Category: Scientific & Laboratory Equipment

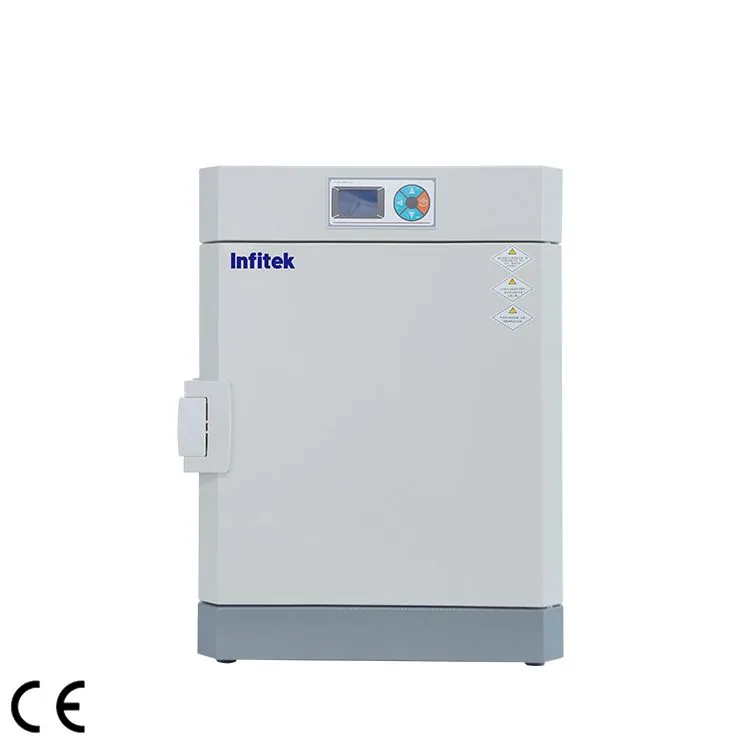

Infitek Forced Air Drying Oven, DOF-V-A/B Series is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: DOF-V30A, DOF-V70A, DOF-V140A, DOF-V240A, DOF-V30B, DOF-V70B. Compare the remaining models in the specification tables. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DOF-V30A | DOF-V70A | DOF-V140A | DOF-V240A |
|---|---|---|---|---|
| Model | DOF-V30B | DOF-V70B | DOF-V140B | DOF-V240B |
| Capacity(L) | 30 | 70 | 135 | 220 |
| Circulation Mode | Forced convection | Forced convection | Forced convection | Forced convection |
| Dimension(W*D*H) / Internal (mm) | 340*325*290 | 400*360*500 | 500*450*600 | 550*500*800 |
| Dimension(W*D*H) / External (mm) | 490*520*690 | 540*550*870 | 640*680*970 | 690*700*1140 |
| Temperature / Range (℃) | A: RT+10~250 B: RT+10~300 | A: RT+10~250 B: RT+10~300 | A: RT+10~250 B: RT+10~300 | A: RT+10~250 B: RT+10~300 |
| Temperature / Fluctuation (℃) | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Temperature / Resolution (℃) | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Temperature / Uniformity (℃) | ±2.5% | ±2.5% | ±2.5% | ±2.5% |
| Temperature / Sensor | PT100 | PT100 | PT100 | PT100 |
| Controller | PID | PID | PID | PID |
| Display | LCD | LCD | LCD | LCD |
| Timer | 1~9999min | 1~9999min | 1~9999min | 1~9999min |
| Material / Internal | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Material / External | Electro-galvanized steel with antimicrobial powder coating | Electro-galvanized steel with antimicrobial powder coating | Electro-galvanized steel with antimicrobial powder coating | Electro-galvanized steel with antimicrobial powder coating |
| Shelves(Standard) | 2 | 2 | 2 | 2 |
| Test Hole (Optional) | Φ25,50,80mm | Φ25,50,80mm | Φ25,50,80mm | Φ25,50,80mm |
| Safety Device | Leakage protector ,over temperaure visible& audible alarm | Leakage protector ,over temperaure visible& audible alarm | Leakage protector ,over temperaure visible& audible alarm | Leakage protector ,over temperaure visible& audible alarm |
| Electricity / Voltage/Frequency | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz |
| Electricity / Consumption (W) | 550/600 | 1050/1250 | 1500/1700 | 2100/2500 |
| N.W./G.W. (kg) | 40 / 46 | 55 / 60 | 70 / 90 | 85/115 |
| Package Dimension(W*D*H) (mm) | 650*620*820 | 700*700*1070 | 720*880*1070 | 870*860*1320 870*850*1300 |
| Optional | Spare shelf, multi-segment programable control (USB data storage, RS485 / 232 port and build-in printer), digital independent temperature limiter. | Spare shelf, multi-segment programable control (USB data storage, RS485 / 232 port and build-in printer), digital independent temperature limiter. | Spare shelf, multi-segment programable control (USB data storage, RS485 / 232 port and build-in printer), digital independent temperature limiter. | Spare shelf, multi-segment programable control (USB data storage, RS485 / 232 port and build-in printer), digital independent temperature limiter. |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
