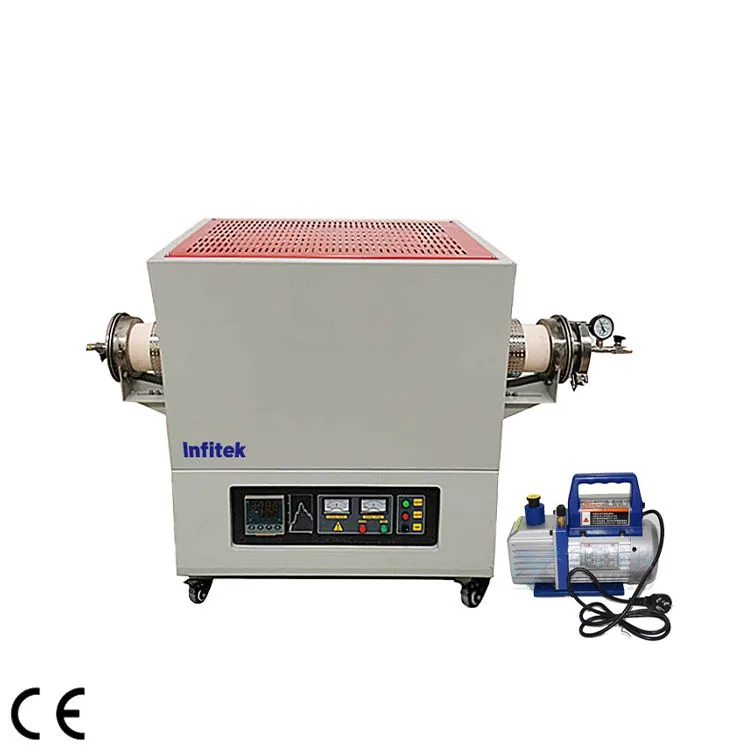

Infitek Muffle Furnace, 1700℃ High Temp, Tube/Horizontal Type, FNC-TB1700 Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Muffle Furnace, 1700℃ High Temp, Tube/Horizontal Type, FNC-TB1700 Series is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: FNC-TB1700-A2, FNC-TB1700-B2, FNC-TB1700-C2, FNC-TB1700-D2, FNC-TB1700-A3, FNC-TB1700-B3. Compare the remaining models in the specification tables. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | FNC-TB1700-A2 | FNC-TB1700-B2 | FNC-TB1700-C2 | FNC-TB1700-D2 | FNC-TB1700-A3 | FNC-TB1700-B3 | FNC-TB1700-C3 | FNC-TB1700-D3 | FNC-TB1700-A4 | FNC-TB1700-B4 | FNC-TB1700-C4 | FNC-TB1700-D4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Temperature / Max. Temp(℃) | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 |
| Temperature / Continuous Working Temp.(℃) | ≤1550 | ≤1550 | ≤1550 | ≤1550 | ≤1550 | ≤1550 | ≤1550 | ≤1550 | ≤1550 | ≤1550 | ≤1550 | ≤1550 |
| Temperature / Heating Rate | 0~20℃/min (suggest to be 0~10℃/min) | 0~20℃/min (suggest to be 0~10℃/min) | 0~20℃/min (suggest to be 0~10℃/min) | 0~20℃/min (suggest to be 0~10℃/min) | 0~20℃/min (suggest to be 0~10℃/min) | 0~20℃/min (suggest to be 0~10℃/min) | 0~20℃/min (suggest to be 0~10℃/min) | 0~20℃/min (suggest to be 0~10℃/min) | 0~20℃/min (suggest to be 0~10℃/min) | 0~20℃/min (suggest to be 0~10℃/min) | 0~20℃/min (suggest to be 0~10℃/min) | 0~20℃/min (suggest to be 0~10℃/min) |
| Temperature / Accuracy(℃) | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Temperature / Uniformity(℃) | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ |
| Furnace tube material | Corundum tube | Corundum tube | Corundum tube | Corundum tube | Corundum tube | Corundum tube | Corundum tube | Corundum tube | Corundum tube | Corundum tube | Corundum tube | Corundum tube |
| Total length of furnace tube | 800mm | 800mm | 800mm | 800mm | 1000mm | 1000mm | 1000mm | 1000mm | 1200mm | 1200mm | 1200mm | 1200mm |
| Standard Heating zone length | 205mm | 205mm | 205mm | 205mm | 350mm | 350mm | 350mm | 350mm | 440mm | 440mm | 440mm | 440mm |
| Standard Tube diameter | ∮40mm | ∮60mm | ∮80mm | ∮100mm | ∮40mm | ∮60mm | ∮80mm | ∮100mm | ∮40mm | ∮60mm | ∮80mm | ∮100mm |
| External Size(W*D*H)(mm) | 630*590*767mm | 630*590*767mm | 630*590*767mm | 630*590*767mm | 724*590*807mm | 724*590*807mm | 724*590*807mm | 724*590*807mm | 794*590*800mm | 794*590*800mm | 794*590*800mm | 794*590*800mm |
| Heating Element | MoSi2 heating rod | MoSi2 heating rod | MoSi2 heating rod | MoSi2 heating rod | MoSi2 heating rod | MoSi2 heating rod | MoSi2 heating rod | MoSi2 heating rod | MoSi2 heating rod | MoSi2 heating rod | MoSi2 heating rod | MoSi2 heating rod |
| Thermocouple | B type | B type | B type | B type | B type | B type | B type | B type | B type | B type | B type | B type |
| Chamber Material | Alumina ceramic fiber | Alumina ceramic fiber | Alumina ceramic fiber | Alumina ceramic fiber | Alumina ceramic fiber | Alumina ceramic fiber | Alumina ceramic fiber | Alumina ceramic fiber | Alumina ceramic fiber | Alumina ceramic fiber | Alumina ceramic fiber | Alumina ceramic fiber |
| Electricity | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
