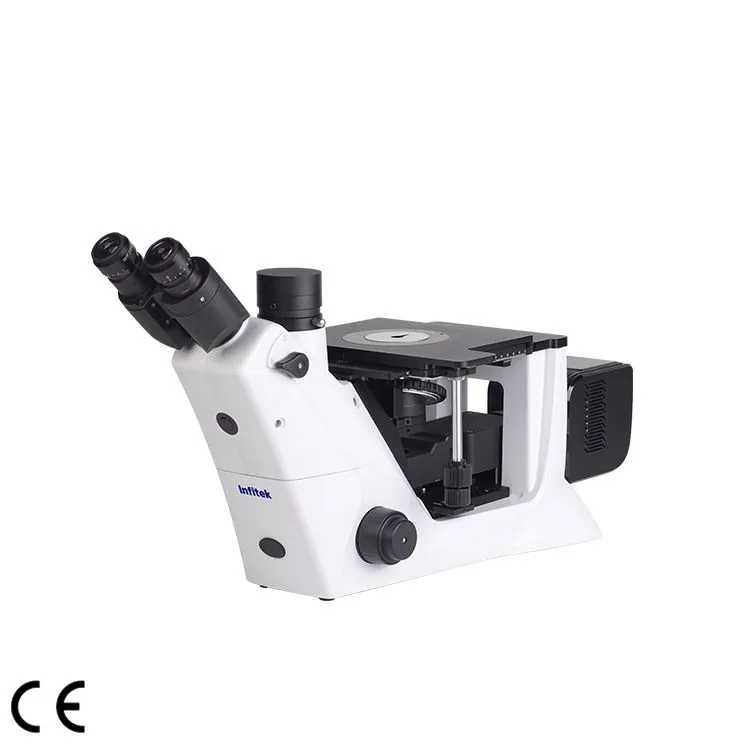

Infitek Metallurgical Microscope, MSC-M60X
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Metallurgical Microscope, MSC-M60X is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MSC-M60X. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MSC-M60X |
|---|---|
| Main Frame | Infinity-corrected optical system, with ECO automatic light-off and voice broadcast function |
| Observation Tube | Fixed Trinocular head with high eye point, Interpupillary 50~75mm, Light split: 100/0 and 0/100 |
| Viewing Head | Siedentopf head, inclined at 45° |
| Eyepiece | Large field WF10X / FN 22, with adjustable diopter |
| Objectives | Semi-apochromatic brightfield metallurgical objective Plan Fluor EPI 5X/0.15, working distance 20 mm |
| Objectives | Semi-apochromatic brightfield metallurgical objective Plan Fluor EPI 10X/0.3, working distance 11 mm |
| Objectives | Semi-apochromatic brightfield metallurgical objective L Plan 20X/0.45, working distance 3 mm |
| Objectives | Semi-apochromatic brightfield metallurgical objective L Plan 50X/0.8, working distance 1 mm |
| Nosepiece | Inward-facing Quintuple Nosepiece; Ball-bearing positioning; Anti-fungus treatment. |
| Stage | X-Y mechanical metallographic stage; With water droplet plate; |
| Focusing | Coaxial coarse and fine adjustment, with locking and limit device, low-position coaxial focusing knob, fine division 2μm |
| Epi-illumination System | 3W full-spectrum white LED, continuously adjustable brightness With polarization kit for polarized light observation With aperture diaphragm, field diaphragm, and filter holder |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
