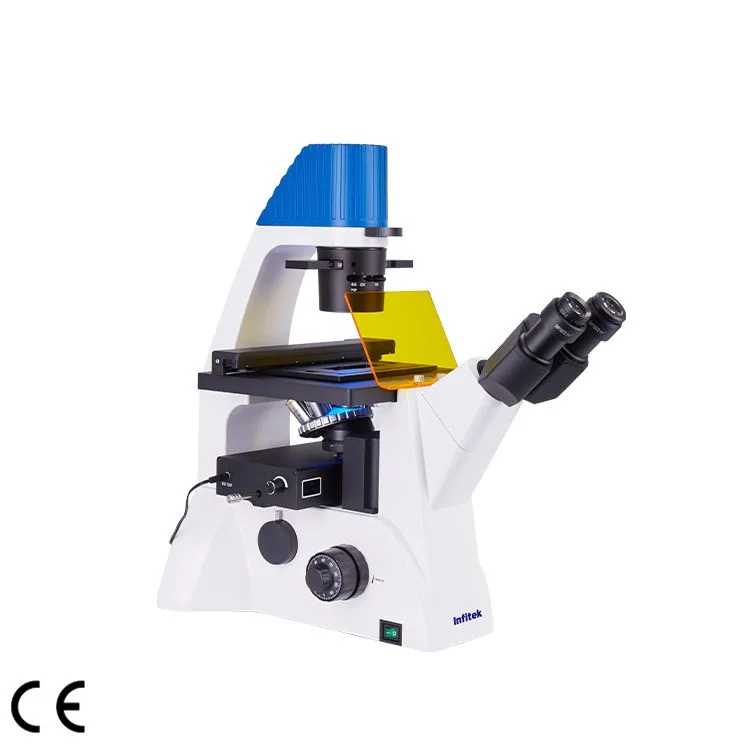

Infitek Inverted Fluorescence Microscope, MSC-IV52FN
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Inverted Fluorescence Microscope, MSC-IV52FN is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MSC-IV52FN. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MSC-IV52FN | MSC-IV52FN |
|---|---|---|
| Optics | Infinity optical system | Infinity optical system |
| Observation Tube | Tilting trinocular, Interpupillary 53~75mm | Tilting trinocular, Interpupillary 53~75mm |
| Viewing Head | Siedentopf head, inclined at 45° | Siedentopf head, inclined at 45° |
| Eyepiece | SWF10X/22 plan eyepiece, high eye point; Centering telescope; | SWF10X/22 plan eyepiece, high eye point; Centering telescope; |
| Objectives | Infinity long working distance plan achromatic objectives | Infinity long working distance plan achromatic objectives |
| Objectives | Plan 4X/0.12, Work distance: 10.8mm | Plan 4X/0.12, Work distance: 10.8mm |
| Objectives | Infinity long working distance plan achromatic objectives; Plan 10X/0.25, Work distance: 4.1mm | Infinity long working distance plan achromatic objectives; Plan 10X/0.25, Work distance: 4.1mm |
| Objectives | Infinity long working distance plan achromatic objectives; Plan 40X/0.58, Work distance: 2.5mm | Infinity long working distance plan achromatic objectives; Plan 40X/0.58, Work distance: 2.5mm |
| Objectives | Infinity long working distance plan achromatic phase contrast objectives | Infinity long working distance plan achromatic phase contrast objectives |
| Objectives | Plan 10X/0.25 PH, Work distance: 4.1mm | Plan 10X/0.25 PH, Work distance: 4.1mm |
| Objectives | Infinity long working distance plan achromatic phase contrast objectives; Plan 20X/0.45 PH, Work distance: 5mm | Infinity long working distance plan achromatic phase contrast objectives; Plan 20X/0.45 PH, Work distance: 5mm |
| Epi-fluorescence Illumination System | LED cold light source; Continuously adjustable brightness | LED cold light source; Continuously adjustable brightness |
| Epi-fluorescence Illumination System | Standard 3-filter cubes; Others available as options | Standard 3-filter cubes; Others available as options |
| Epi-fluorescence Illumination System | Excitation filter | Excitation wavelength |
| Epi-fluorescence Illumination System | Ultraviolet (UV) | 330~380nm |
| Epi-fluorescence Illumination System | Blue (B) | 460~490nm |
| Epi-fluorescence Illumination System | Green (G) | 510~550nm |
| Nosepiece | Quintuple nosepiece; Ball-bearing with anti-fungus treatment | Quintuple nosepiece; Ball-bearing with anti-fungus treatment |
| Focusing | Coaxial coarse and fine focusing; with tension adjustment and upper limit stop; Fine adjustment graduation: 2μm | Coaxial coarse and fine focusing; with tension adjustment and upper limit stop; Fine adjustment graduation: 2μm |
| Stage | Glass rotundity stage overall size: outer φ118mm, inner φ 68mm | Glass rotundity stage overall size: outer φ118mm, inner φ 68mm |
| Stage | Petri dish holder 1 | Inside locating slot size: 86mm×129.5mm, suitable for circular culture dish φ90mm |
| Stage | Petri dish holder 2 | Inside locating slot size: 34mm×77.5mm, suitable for circular culture dish φ 68.5mm |
| Stage | Petri dish holder 3 | Inside locating slot size: 57mm×82mm, suitable for circular culture dish φ 60mm |
| Stage | Petri dish holder 4 | Inside locating slot size: 29mm×77.5mm, suitable for circular culture dish φ 35mm |
| Transmitted Illumination | White LED lamp with brightness adjustable | White LED lamp with brightness adjustable |
| Transmitted Illumination | Push-pull type condenser, working distance 55mm | Push-pull type condenser, working distance 55mm |
| Transmitted Illumination | Green filter | Green filter |
| Fluorescence Shield | 110 mm×70 mm | 110 mm×70 mm |
| Camera Port | Built-in 0.75X C-mount adapter | Built-in 0.75X C-mount adapter |
Manufacturer catalogue checked 2026-09-28.
