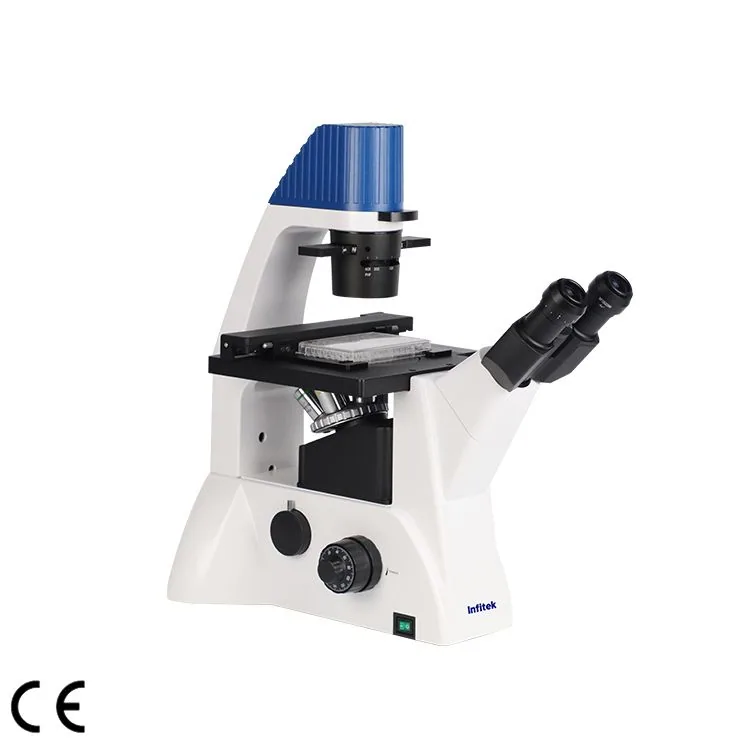

Infitek Inverted Biological Microscope, MSC-IV52BN
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Inverted Biological Microscope, MSC-IV52BN is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MSC-IV52BN. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MSC-IV52BN | MSC-IV52BN |
|---|---|---|
| Optics | Infinity optical system | Infinity optical system |
| Observation Tube | Tilting trinocular, Interpupillary 53~75mm, light split 100:0/0:100 | Tilting trinocular, Interpupillary 53~75mm, light split 100:0/0:100 |
| Viewing Head | Siedentopf head, inclined at 45° | Siedentopf head, inclined at 45° |
| Eyepiece | Wide field WF10X/22mm; Centering telescope | Wide field WF10X/22mm; Centering telescope |
| Objectives | Infinity long working distance plan achromatic objectives Plan 4X/0.12, Work distance: 10.8mm | Infinity long working distance plan achromatic objectives Plan 4X/0.12, Work distance: 10.8mm |
| Objectives | Infinity long working distance plan achromatic objectives LACH Plan 40X/0.60, Work distance: 3.5mm | Infinity long working distance plan achromatic objectives LACH Plan 40X/0.60, Work distance: 3.5mm |
| Objectives | Infinity long working distance plan achromatic phase contrast objectives Plan 10X/0.25 PH, Work distance: 4.1mm | Infinity long working distance plan achromatic phase contrast objectives Plan 10X/0.25 PH, Work distance: 4.1mm |
| Objectives | Infinity long working distance plan achromatic phase contrast objectives Plan 20X/0.45 PH, Work distance: 5mm | Infinity long working distance plan achromatic phase contrast objectives Plan 20X/0.45 PH, Work distance: 5mm |
| Nosepiece | Quintuple nosepiece; Ball-bearing with anti-fungus treatment | Quintuple nosepiece; Ball-bearing with anti-fungus treatment |
| Focusing | Coaxial coarse / fine focusing; with tension adjustment and upper limit stop; Fine adjustment graduation: 2μm | Coaxial coarse / fine focusing; with tension adjustment and upper limit stop; Fine adjustment graduation: 2μm |
| Stage | Fixed stage size: 227 × 208 mm; Mechanical stage; Moving range: 135×77 mm | Fixed stage size: 227 × 208 mm; Mechanical stage; Moving range: 135×77 mm |
| Stage | Glass rotundity stage overall size: outer φ118mm, inner φ 68mm | Glass rotundity stage overall size: outer φ118mm, inner φ 68mm |
| Stage | Petri dish holder 1 | Inside locating slot size: 86mm×129.5mm, suitable for circular culture dish φ90mm |
| Stage | Petri dish holder 2 | Inside locating slot size: 34mm×77.5mm, suitable for circular culture dish φ 68.5mm |
| Stage | Petri dish holder 3 | Inside locating slot size: 57mm×82mm, suitable for circular culture dish φ 60mm |
| Stage | Petri dish holder 4 | Inside locating slot size: 29mm×77.5mm, suitable for circular culture dish φ 35mm |
| Transmitted Illumination | White LED lamp with brightness adjustable | White LED lamp with brightness adjustable |
| Transmitted Illumination | Push-pull type condenser, working distance 55mm | Push-pull type condenser, working distance 55mm |
| Transmitted Illumination | Green filter | Green filter |
| Phase Contrast Ring Plate | 10X, 20X, 40X (20X and 40X in one unit) | 10X, 20X, 40X (20X and 40X in one unit) |
| Camera Port | Internal set 0.75X C-mount (without camera) | Internal set 0.75X C-mount (without camera) |
| External Dimension (L*W*H) | 486*255*537mm | 486*255*537mm |
| Fluorescence Observation | 3-channel digital LED fluorescence attachment (optional) | 3-channel digital LED fluorescence attachment (optional) |
| Fluorescence Observation | Long working distance plan semi-achromatic phase contrast objective Plan Fluor 10X/20X/40X PH (optional) | Long working distance plan semi-achromatic phase contrast objective Plan Fluor 10X/20X/40X PH (optional) |
Manufacturer catalogue checked 2026-09-28.
