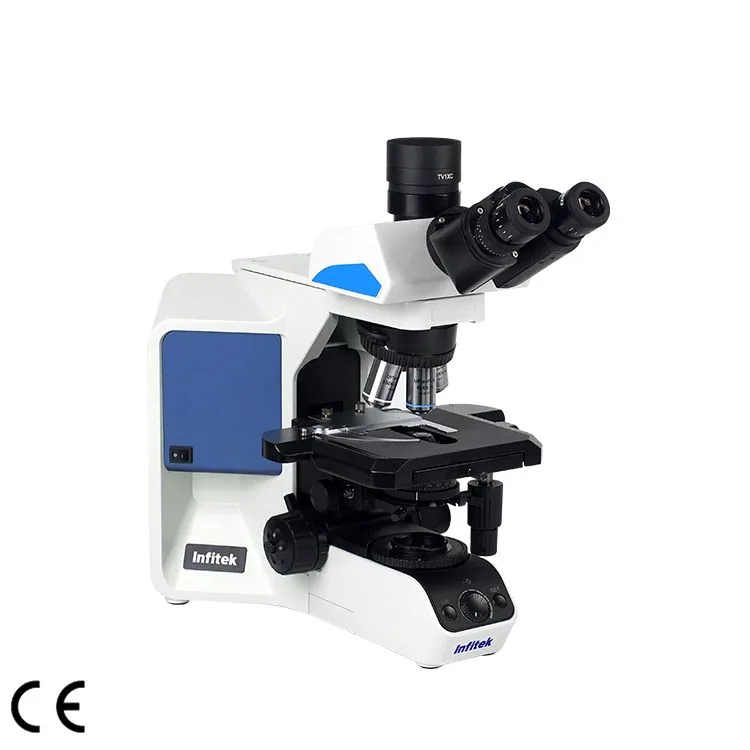

Infitek Biological Microscope, MSC-B51N
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Biological Microscope, MSC-B51N is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MSC-B51N. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Wide-field higheye point eyepieces An ultra-wide 25mm field of view provides a more comprehensive observation area. The high eye point design allows for comfortable viewing without removing glasses. Adjustable diopters ensure that the binocular image is synchronously clear for both eyes. | |
|---|---|
| Butterfly design frame The butterfly-shaped design offers an elegant and modern aesthetic. The Y-shaped base enhances structural stability, ensuring vibration-free observation even at high magnifications. Furthermore, the integrated rear carrying handle significantly improves portability and ease of transport. | |
| Low-position controls & Ceramic-coated stage The low-position design allows hands to rest comfortably on the table while controlling the stage, minimizing fatigue caused by unsupported arm positions during prolonged use. The ceramic-coated stage is wear and scratch-resistant, ensuring the surface remains flat even after years of intensive use. | |
| Plan Semi-Apochromatic Objectives The semi-apochromatic objectives, featuring high numerical apertures, provide images with a high signal-to-noise ratio, high resolution, and high contrast. They ensure consistent sharpness across a wider field of view. | |
| Warm white LED light source with light intensity manager The long-life, high-brightness warm white LED provides stable, uniform, and glare-free illumination. Equipped with light intensity manager, the system allows for presetting brightness for each objective magnification. This eliminates the need for manual readjustment when switching between objectives, ensuring consistent brightness at all times. |
| Model | MSC-B51N |
|---|---|
| Optics | Infinity optical system |
| Observation Tube | Tilting trinocular, Interpupillary 50-75mm, binocular: trinocular split ratio 100:0 or 20:80 or 0:100 |
| Viewing Head | Siedentopf head, inclined at 30° |
| Eyepiece | Wide field of view 10X /25mm |
| Objectives | Plan Semi-Apochromatic Objectives 4X /10X /40X /100X |
| Objectives | Plan Semi-Apochromatic Objective 20X (Optional) |
| Nosepiece | Inward coded quintuple nosepiece |
| Stage | Highly wear-resistant ceramic-coated stage; Moving range: 80×50mm; Precision: 0.1mm |
| Focusing | Coaxial coarse and fine adjustment, focusing stroke 25mm, with upper limit stop position for coarse adjustment, the torque of the coarse adjustment knob is adjustable, and the fine adjustment scale is 1μm |
| Transmitted Illumination | Abbe condenser, N.A. 1.1, Kohler illumination |
| Transmitted Illumination | Warm white LED light source, continuously adjustable brightness, with light intensity manager |
| Camera Port | TV1XC-MO (without camera) |
| Dimensions(L*W*H) | 362*274.5*500 mm |
| Optional Accessories | Optional Accessories |
| Phase Contrast | Plan Achromatic Phase Contrast Objectives: 10X/20X/40X/100X PH |
| Phase Contrast | Turret type of phase contrast condenser |
| Phase Contrast | Centering telescope |
| Dark Field | Dark field condenser |
| Eyepiece | Wide field 10X/23mm |
| Objectives | Plan Semi-Apochromatic Objectives (Plan Fluor) 4X/10X/20X/40X/100X |
| Nosepiece | Inward coded sextuple nosepiece |
| Camera Port | TV0.5XC-MO |
Manufacturer catalogue checked 2026-09-28.
