Brand: Infitek | Category: Scientific & Laboratory Equipment

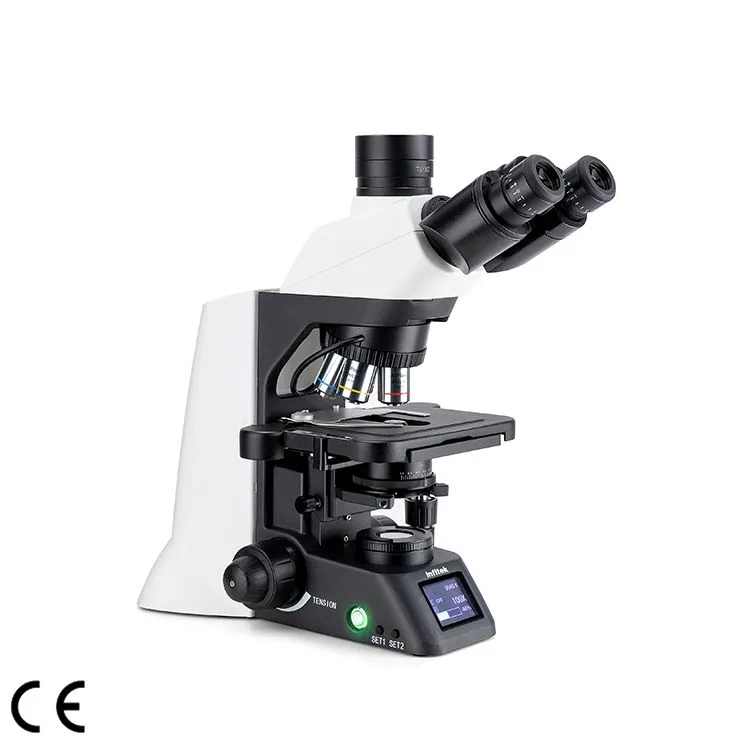

Infitek Biological Microscope, MSC-B45 is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MSC-B45. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MSC-B45 |
|---|---|
| Optics | Infinity-corrected optical system; bright field observation; upgradable to phase contrast, fluorescence, dark field, etc. |
| Observation Tube | Tilting trinocular, Interpupillary 50-75mm |
| Viewing Head | Siedentopf head, inclined at 30° |
| Eyepiece | Wide-field WF10X / F.N. 23; Diopter adjustable |
| Objective | Plan Achromatic Objectives: A-plan 4X/10X/40X/100X (Other types and magnifications optional) |
| Nosepiece | Inward-facing quintuple coded nosepiece; features brightness memory and brightness adjustment for different magnifications |
| Stage | Mechanical stage, Size: 232 × 158mm, Moving range:80×50mm |
| Focusing | Coaxial coarse and fine adjustment, focusing range 25mm, fine division 0.002mm |
| Transmitted Illumination | Abbe condenser N.A. 1.1; 3W LED light source with continuously adjustable color temperature to provide better illumination for various samples |
| Display | Integrated LCD screen; Real-time display of current objective magnification, brightness level, voice broadcast status, and ECO mode |
| Main Body | ECO sensing function: Auto-off when user is away, auto-on when user returns; improves convenience and energy efficiency. |
| Main Body | Supports powering via external power banks, expanding the microscope’s application range and usage scenarios. |
| Main Body | Supports USB programmable control, allowing for expansion of software-side control and integration. |
| Main Body | Optional voice broadcast function provides real-time announcements of objective magnification when switching, ensuring effortless and convenient operation. |
Manufacturer catalogue checked 2026-09-28.
