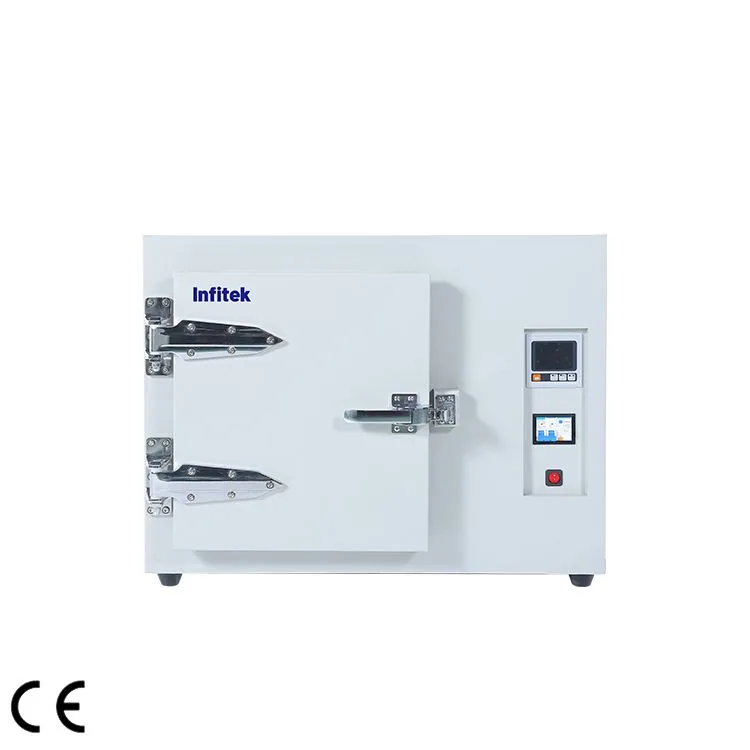

Infitek High Temperature Oven, DOF-A Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek High Temperature Oven, DOF-A Series is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: DOF-50A, DOF-100A, DOF-200A. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| DOF-50A | DOF-100A | DOF-200A | ||
| Capacity(L) | Capacity(L) | 50 | 100 | 200 |
| Circulation Mode | Circulation Mode | Forced convection | Forced convection | Forced convection |
| Dimension(W*D*H) | Internal (mm) | 350*350*400 | 450*450*450 | 600*600*600 |
| Dimension(W*D*H) | External (mm) | 540 *660*620 | 620*750*650 | 1020*900*900 |
| Temperature | Range (℃) | 50~400 | 50~400 | 50~400 |
| Temperature | Fluctuation (℃) | ±0.5 | ±0.5 | ±0.5 |
| Temperature | Resolution (℃) | 0.1 | 0.1 | 0.1 |
| Temperature | Uniformity (℃) | ±2.5% | ±2.5% | ±2.5% |
| Temperature | Sensor | PT100 | PT100 | PT100 |
| Controller | Controller | PID | PID | PID |
| Display | Display | High efinition LCD | High efinition LCD | High efinition LCD |
| Timer(min) | Timer(min) | 1~9999 | 1~9999 | 1~9999 |
| Material | Internal | High-quality brushed stainless steel | High-quality brushed stainless steel | High-quality brushed stainless steel |
| Material | External | Electro-galvanized steel with antimicrobial powder coating | Electro-galvanized steel with antimicrobial powder coating | Electro-galvanized steel with antimicrobial powder coating |
| Shelves(Standard) | Shelves(Standard) | 2 | 2 | 2 |
| Test Hole (Optional) | Test Hole (Optional) | Φ25,50,80 | Φ25,50,80 | Φ25,50,80 |
| Safety Device | Safety Device | Leakage protector,over- temperature alarm | Leakage protector,over- temperature alarm | Leakage protector,over- temperature alarm |
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz（DOF-200A，380V） | AC 220/110V, 50/60Hz（DOF-200A，380V） | AC 220/110V, 50/60Hz（DOF-200A，380V） |
| Electricity | Consumption (W) | 2500 | 3000 | 4500 |
| N.W./G.W. (kg) | N.W./G.W. (kg) | 60 / 71 | 113 / 140 | 232 / 260 |
| Package Dimension (W*D*H) (mm) | Package Dimension (W*D*H) (mm) | 970*750*840 | 1230*1160*1060 | 1350*1260*1150 |
| Optional | Optional | Spare shelf,multi-segment programable control(USB data storage,RS485/232 port and build-in printer),digital independent temperature limiter | Spare shelf,multi-segment programable control(USB data storage,RS485/232 port and build-in printer),digital independent temperature limiter | Spare shelf,multi-segment programable control(USB data storage,RS485/232 port and build-in printer),digital independent temperature limiter |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
