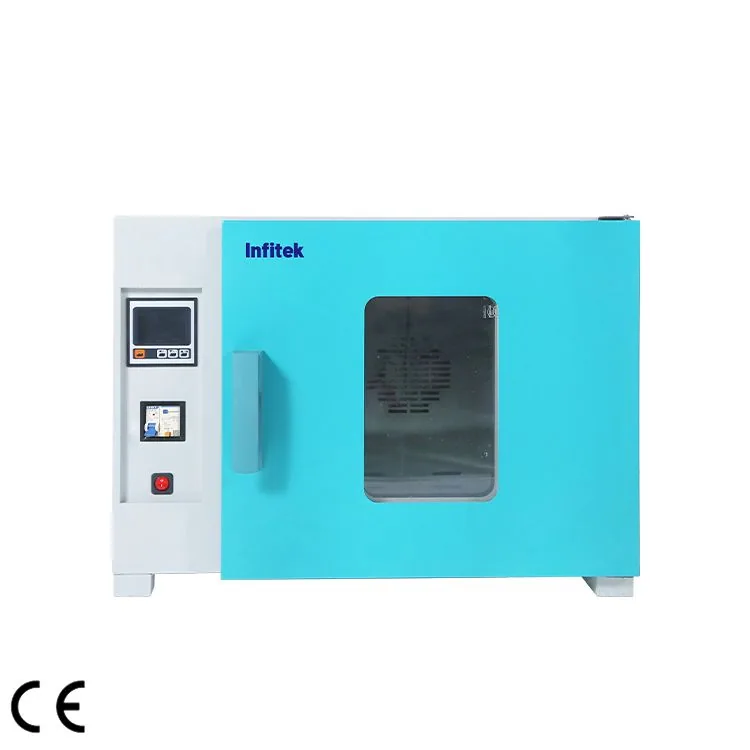

Infitek Forced Air Drying Oven, DOF-BA Series is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: DOF-B20A, DOF-B50A, DOF-B100A, DOF-B200A, DOF-B625A. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DOF-B20A | DOF-B50A | DOF-B100A | DOF-B200A | DOF-B625A |
|---|---|---|---|---|---|
| Capacity(L) | 30 | 51 | 138 | 188 | 640 |
| Circulation Mode | Forced convection | Forced convection | Forced convection | Forced convection | Forced convection |
| Dimension(W*D*H) / Internal (mm) | 340*320*320 | 420*350*350 | 550*450*560 | 600*550*570 | 800*800*1000 |
| Dimension(W*D*H) / External (mm) | 630*570*500 | 710*520*520 | 845*700*730 | 890*730*780 | 1090*980*1180 |
| Temperature / Range (℃) | RT+10~250 | RT+10~250 | RT+10~250 | RT+10~250 | RT+10~250 |
| Temperature / Fluctuation (℃) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Temperature / Resolution (℃) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Temperature / Uniformity (℃) | ±2.5% | ±2.5% | ±2.5% | ±2.5% | ±2.5% |
| Temperature / Sensor | PT100 | PT100 | PT100 | PT100 | PT100 |
| Controller | PID | PID | PID | PID | PID |
| Display | High efinition LCD | High efinition LCD | High efinition LCD | High efinition LCD | High efinition LCD |
| Timer | 1~9999min | 1~9999min | 1~9999min | 1~9999min | 1~9999min |
| Material / Internal | High-quality brushed stainless steel | High-quality brushed stainless steel | High-quality brushed stainless steel | High-quality brushed stainless steel | High-quality brushed stainless steel |
| Material / External | Electro-galvanized steel with antimicrobial powder coating | Electro-galvanized steel with antimicrobial powder coating | Electro-galvanized steel with antimicrobial powder coating | Electro-galvanized steel with antimicrobial powder coating | Electro-galvanized steel with antimicrobial powder coating |
| Shelves(Standard / Max ) | 2 | 2 | 2 | 2 | 2 |
| Test Hole (Optional) | Φ25,50,80mm | Φ25,50,80mm | Φ25,50,80mm | Φ25,50,80mm | Φ25,50,80mm |
| Safety Device | Leakage protector ,over temperaure visible& audible alarm | Leakage protector ,over temperaure visible& audible alarm | Leakage protector ,over temperaure visible& audible alarm | Leakage protector ,over temperaure visible& audible alarm | Leakage protector ,over temperaure visible& audible alarm |
| Electricity / Voltage/Frequency | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 380V 50Hz |
| Electricity / Consumption (W) | 500 | 750 | 1500 | 2000 | 4000 |
| N.W./G.W. (kg) | 27 / 30 | 42 / 55 | 70 / 77 | 86 / 97 | 155/175 |
| Package Dimension (W*D*H)(mm) | 760*670*580 | 840*710*720 | 950*800*930 | 1030*890*990 | 1200*1280*1120 |
| Optional | Digital independent temperature limiter ,multi-segment programable control (Optional USB,RS485/232 and printer),spare shelf | Digital independent temperature limiter ,multi-segment programable control (Optional USB,RS485/232 and printer),spare shelf | Digital independent temperature limiter ,multi-segment programable control (Optional USB,RS485/232 and printer),spare shelf | Digital independent temperature limiter ,multi-segment programable control (Optional USB,RS485/232 and printer),spare shelf | Digital independent temperature limiter ,multi-segment programable control (Optional USB,RS485/232 and printer),spare shelf |
Manufacturer catalogue checked 2026-09-28.
