Brand: Infitek | Category: Scientific & Laboratory Equipment

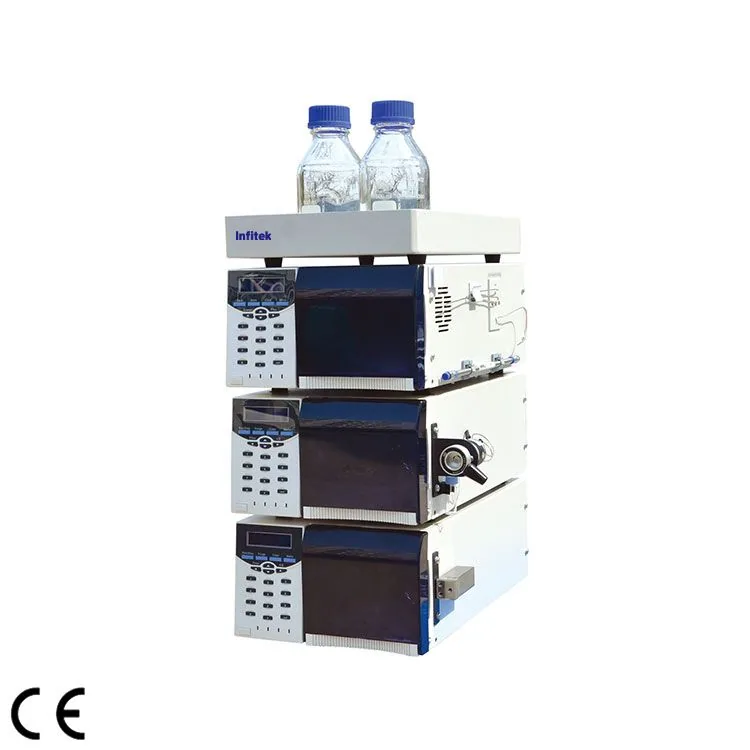

Infitek High Performance Liquid Chromatography, HPLC-1100 is listed in VVON's chromatography systems & consumables range for Bangladesh. Match the analytical method, detector, column and sample-handling configuration. For a quotation, send the analytes, method, detector, columns, samples per day and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Description | Isocratic Systems Configurations | Binary High Pressure Gradient Systems Configurations |
|---|---|---|
| HPLC-1100FP High Pressure Constant Flow Pump | 1 ea | 2 ea |
| HPLC-1100DT UV/VIS Detector | 1 ea | 1 ea |
| Valco Sample Injector | 1 ea | 1 ea |
| HPLC-1100 GM Gradient Mixer | / | 1 ea |
| HPLC-1100CO Column Oven (alternative) | 1 ea | 1 ea |
| BEH HPLC Column | 1 ea | 1 ea |
| HPLC-1100ST Workstation | 1 set | 1 ea |
| Flow Rate | 0.001-10.000 mL/min (Step: 0.001 mL/min) |
|---|---|
| Accuracy | ≤±0.3% |
| Precision | ≤0.1% RSD |
| Max Pressure | 42 MPa (6000 psi) |
| Dimension/Weight | 420 mm×260 mm×160 mm/12 kg |
| Power | AC 220 V, 50 Hz |
| Wavelength | 190-700 nm |
|---|---|
| Noise | ≤±1.0×10-5 AU |
| Drift | ≤2.0×10-4 AU/h |
| Dimension/Weight | 420 mm×260 mm×160 mm/12 kg |
| Power | AC 220 V (±10%)，50 Hz/100 W |
| Temperature | R.T.+5 ℃~99 ℃ |
|---|---|
| Setting Precision | 0.1 ℃ |
| Control Accuracy | ±0.5 ℃ |
| Dimension/Weight | 120 mm×65 mm×500 mm/8.5 kg |
| Power | AC 220 V (±10%)，50 Hz |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
