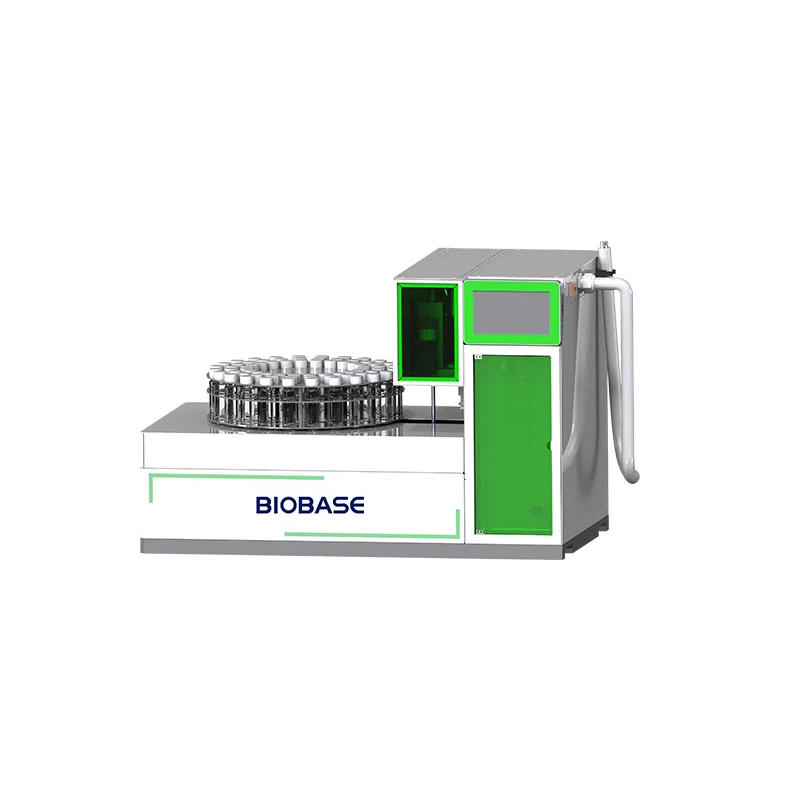

BIOBASE Automatic Purge and Trap Device
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Automatic Purge and Trap Device is listed in VVON's chromatography systems & consumables range for Bangladesh. Published models: BK-PT7900D-II. Published details include Temperature Control Range of Water Trap: RT~240 ℃, with an increment of 1°C, the heating power is about 100W;; Temperature Control Range of Valve Injection System: RT~220 ℃, with an increment of 1°C, the heating power is about 150W;. Match the analytical method, detector, column and sample-handling configuration. For a quotation, send the analytes, method, detector, columns, samples per day and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-PT7900D-II |
|---|---|
| Temperature Control Range of Water Trap | RT~240 ℃, with an increment of 1°C, the heating power is about 100W; |
| Temperature Control Range of Valve Injection System | RT~220 ℃, with an increment of 1°C, the heating power is about 150W; |
| Temperature Control Range of Sample Transmission Pipeline | RT~220 ℃, with an increment of 1°C, the heating power is about 200W; (low voltage power supply is used for temperature control of transmission line for operation safety) |
| Desorption Temperature Control Range of Capture Tube | RT to 400 ℃, the increment is 1 ℃; (heating rate＞2000 ℃ / min) |
| Cold Trap Temperature | The lowest cooling temperature can reach - 30 ℃, and electronic refrigeration device is used; |
| Sample Temperature Control Range | RT~90 ℃, with an increment of 1°C, the heating power is about 250W; |
| Hot Water Pool Temperature Control Range | RT~90 ℃, with an increment of 1°C, the heating power is about 220W; |
| Purge Pipe Temperature Control Range: | RT~90 ℃, with an increment of 1°C, the heating power is about 50W; |
| Temperature Control Accuracy | ± 0.1 ℃ |
| Temperature Control Gradient | ± 1 ℃ |
| Sample Position | 72 positions |
| Sample Bottle Specification | 40ml |
| Purging Flow | 0~500ml / min (continuously adjustable); |
| Back blowing flow | 0 ~ 200ml / min (continuously adjustable) |
| Power Supply | AC220V, 50/60Hz (Standard);110V, 60Hz (Optional, External transformer) |
| External Size(W*D*H) | 870 * 500* 570mm |
| Net Weight | 38kg |
| Package Size(W*D*H) | 1005*635*725mm |
| Gross Weight | 40kg |
Manufacturer catalogue checked 2026-09-28.
