Brand: Infitek | Category: Scientific & Laboratory Equipment

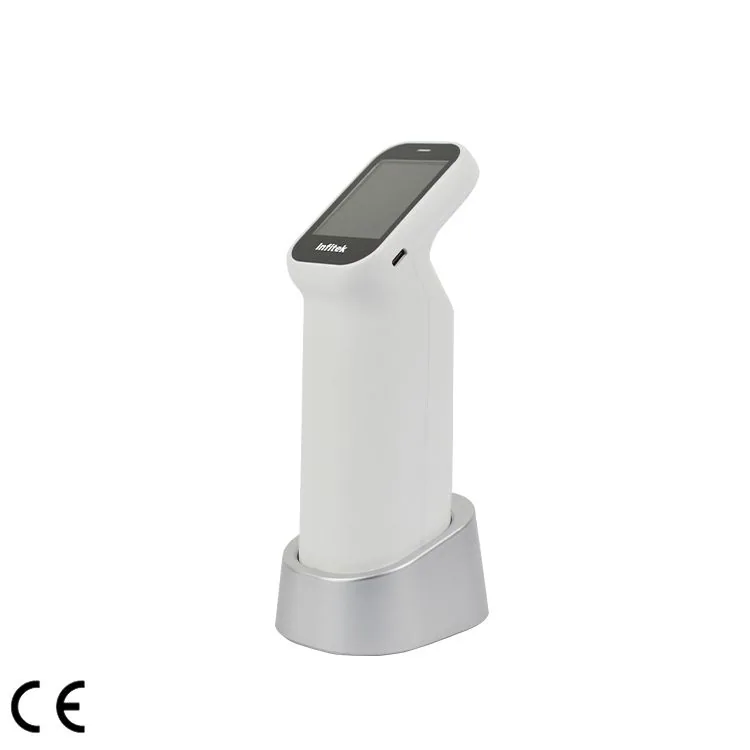

Infitek Grating Portable Spectrophotometer, SP-CLR520C is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-CLR520C. Published details include Wavelength Range: 400-700nm. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-CLR520C |
|---|---|
| Optical Geometry | D/8（diffused illumination,8° viewing） SCI（specular component included），SCE（specular component excluded） |
| Integrating Sphere Size | φ40mm |
| Light Source | Full waveband balanced LED |
| Color Space and Index | Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness(My,dM),Color Fastness, Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength |
| Illuminant | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84 |
| Observer Angle | 2°,10° |
| Sensor | 256 pixel CMOS sensor |
| Calibration | Auto |
| Wavelength Interval | 10nm |
| Wavelength Range | 400-700nm |
| Measured Reflectance Range | 0-200% |
| Reflectance Resolution | 0.01% |
| Repeatability | Chromaticity value: Max. :dE*ab< 0.04 Average :dE*ab< 0.03 Standard deviation within ΔE*ab 0.02 (When a whiteboard measures 30 times every 5 seconds) Reflectance: Standard deviation < 0.1% |
| Measuring Aperture | MAV:Φ8mm/Φ11mm MAV:Φ4mm/Φ6mm MINI:1*3mm |
| Inter-instrument Error | ΔE*ab＜0.2 （BCRA Series Ⅱ, average measurement of 12 tiles，MAV/SCI） |
| Test Time | About 1s |
| Battery | Rechargeable, 8000 times continuous tests, 3.7V/3000mAh |
| Screen | 2.4-inch IPS full color screen |
| Interface | USB，Bluetooth |
| Illuminant Life Span | 1 million measurements in 10 years |
| Software Support | Android, IOS, Windows |
| Camera | With |
| External Dimension (L*W*H) | 77.8*53.2*185.7mm |
| N.W./G.W. | 0.3kg/1.5kg |
| Shipping Dimension (L*W*H) | 320*170*290mm |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
