Infitek Grating Portable Spectrophotometer, SP-CLR580A,B

Brand: Infitek | Category: Scientific & Laboratory Equipment

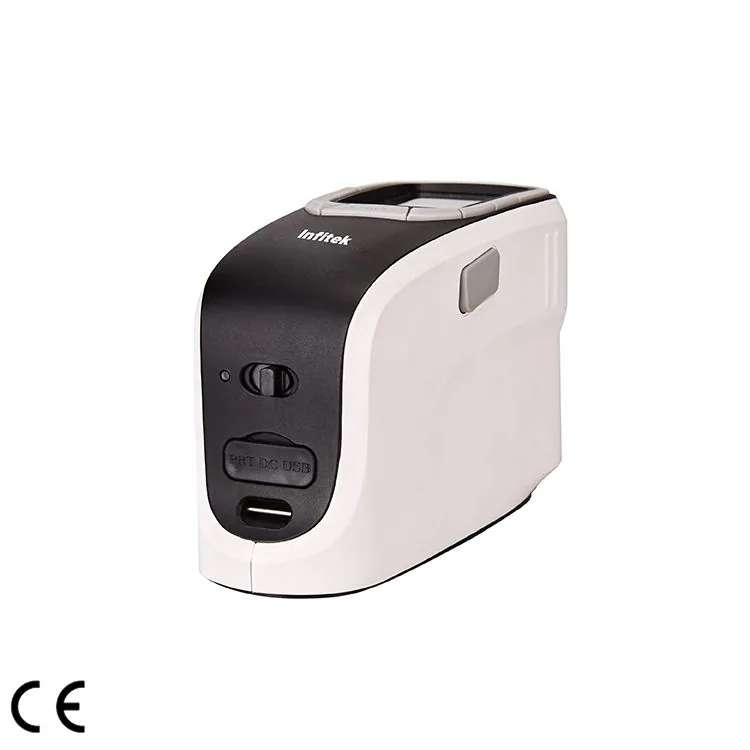

Infitek Grating Portable Spectrophotometer, SP-CLR580A,B

Infitek Grating Portable Spectrophotometer, SP-CLR580A,B is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-CLR580A, SP-CLR580B. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.

Model specifications

Compare each model column separately. Confirm options and included accessories in your quotation.

Manufacturer specifications
ModelSP-CLR580ASP-CLR580B
Optical GeometryD/8(Diffused lighting, 8 degrees observe angle)、SCI(specular reflection included)/SCE(specular reflection excluded),simultaneous measurement. (conform to CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、 JIS Z8722 Condition c standards)D/8(Diffused lighting, 8 degrees observe angle)、SCI(specular reflection included)/SCE(specular reflection excluded),simultaneous measurement. (conform to CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、 JIS Z8722 Condition c standards)
Integrating Sphere Sizeφ40mm, diffused reflection surface coatingφ40mm, diffused reflection surface coating
Light SourceCLEDs(entire wavelength balanced LED light source)CLEDs(entire wavelength balanced LED light source)
SensorDual light path sensor arrayDual light path sensor array
Wavelength Range400-700nm400-700nm
Wavelength Interval10nm10nm
Half Spectral Width5nm5nm
Measured Reflectance Range0-200%0-200%
Reflectance Resolution0.01%0.01%
Observer Angle2°/10°2°/10°
IlluminantA,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWFA,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF
DisplaySPD distribution/data,sample’s color values,color difference values/graph, pass/fail results, color error tendency, color simulation,display measurement area,history data color simulation,manual input standard sample,generate measurement reportSPD distribution/data,sample’s color values,color difference values/graph, pass/fail results, color error tendency, color simulation,display measurement area,history data color simulation,manual input standard sample,generate measurement report
Measuring Time Interval2s2s
Measuring Time1s1s
Color SpaceCIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, ReflectanceCIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance
Color Difference FormulaΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00
Other Colorimetric IndexWI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby)； YI(ASTM D1925，ASTM E313-00,ASTM E313-73)；Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness, Covering power, force,Opacity, color strengthWI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby)； YI(ASTM D1925，ASTM E313-00,ASTM E313-73)；Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness, Covering power, force,Opacity, color strength
RepeatabilityLight splitting reflectivity:standard deviation within 0.08%Light splitting reflectivity:standard deviation within 0.08%
RepeatabilityColor values:ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals), Max.:0.05Color values:ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals), Max.:0.05
Measuring Apertureφ10mmφ4mm, 6mm
Inter-instrument ErrorΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
BatteryRechargeable, 10000 continuous tests, 7.4V/6000mAhRechargeable, 10000 continuous tests, 7.4V/6000mAh
InterfaceUSBUSB
Data Storage20000 test results20000 test results
Illuminant Life Span1.5 million measurements in 5 years1.5 million measurements in 5 years
ScreenTrue color screen that includes all colorsTrue color screen that includes all colors
Operating Environment0~45℃, relative humidity 80% or below( at 35°C ),no condensation0~45℃, relative humidity 80% or below( at 35°C ),no condensation
Operating Environment-25℃~55℃，relative humidity 80% or below(at 35°C ),no condensation-25℃~55℃，relative humidity 80% or below(at 35°C ),no condensation
Standard AccessoryDC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, spire lamella, portable bag, electronic color chartsDC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, spire lamella, portable bag, electronic color charts
Optional AccessoryPowder molding device, micro printer, measurement and test reportPowder molding device, micro printer, measurement and test report
External Dimension(L*W*H))181*73*112mm181*73*112mm
Net WeightAbout 0.55kg(excluding battery’s weight)About 0.55kg(excluding battery’s weight)

Manufacturer catalogue checked 2026-09-28.
