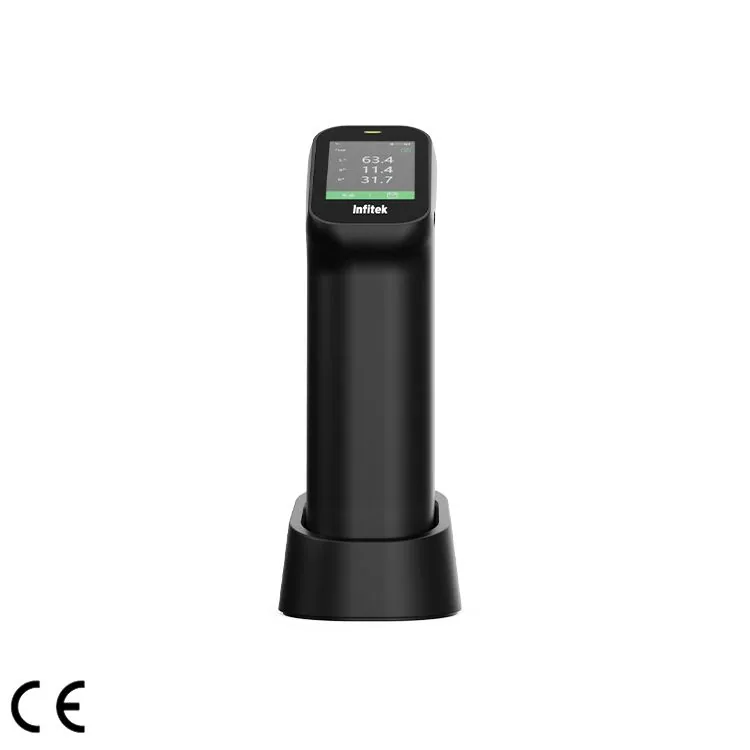

Infitek Grating Portable Spectrophotometer, SP-CLR500C
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Grating Portable Spectrophotometer, SP-CLR500C is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-CLR500C. Published details include Wavelength Range: 400-700nm. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-CLR500C |
|---|---|
| Optical Geometry | D/8 (diffused illumination,8° viewing), SCI（specular component included） |
| Integrating Sphere Size | φ40mm |
| Light Source | Full waveband balanced LED |
| Color Space and Index | Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313- 73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness （My,dM）,Color Fastness, Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength |
| Illuminant | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84 |
| Observer Angle | 2°,10° |
| Sensor | 256 pixel CMOS sensor |
| Calibration | Auto |
| Wavelength Interval | 10nm |
| Wavelength Range | 400-700nm |
| Measured Reflectance Range | 0-200% |
| Reflectance Resolution | 0.01% |
| Repeatability | Chromaticity value: Max. :dE*ab< 0.1 Average :dE*ab< 0.05 Standard deviation within ΔE*ab 0.03 (When a whiteboard measures 30 times every 5 seconds) Reflectance: Standard deviation < 0.1% |
| Measuring Aperture | MAV: φ8mm/φ11mm |
| Inter-instrument Error | ΔE*ab＜0.3 （BCRA Series Ⅱ, average measurement of 12 tiles，MAV/SCI） |
| Measuring Time | About 2s |
| Battery | Rechargeable, 8000 times continuous tests, 3.7V/3000mAh |
| Screen | 2.4-inch IPS full color screen |
| Interface | USB，Bluetooth |
| Illuminant Life Span | 1 million measurements in 10 years |
| Software Support | Android, IOS, Windows |
| Camera | Without |
| External Dimension (L*W*H) | 77.8*53.2*185.7mm |
| N.W./G.W. | 0.3kg/1.5kg |
| Shipping Dimension (L*W*H) | 320*170*290mm |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
