Brand: Infitek | Category: Scientific & Laboratory Equipment

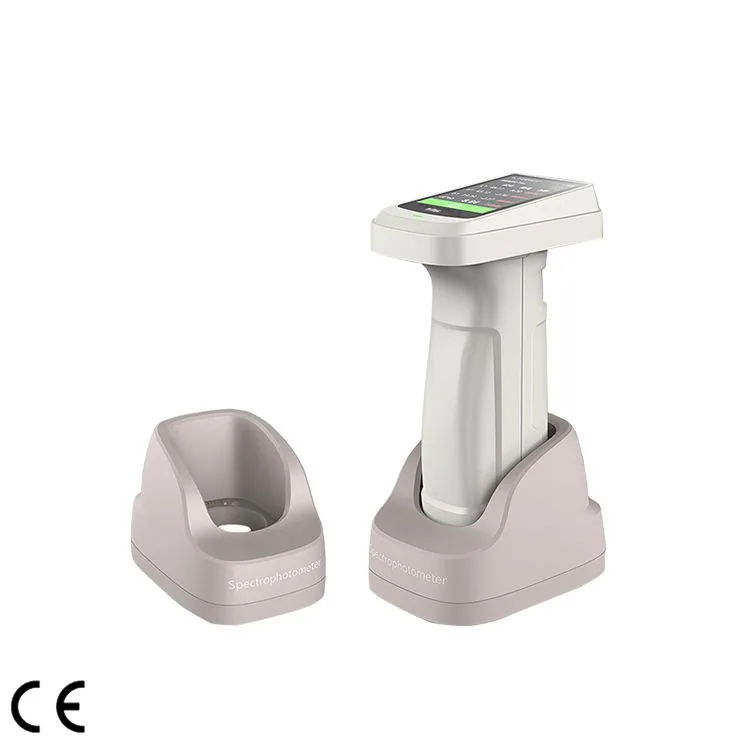

Infitek Grating Portable Spectrophotometer, SP-CLR700D is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-CLR700D. Published details include Wavelength Range: 400-700nm. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-CLR700D |
|---|---|
| Optical Geometry | D/8(diffused illumination, 8-degree viewing angle)，SCI+SCE (specular component included+specular component excluded) |
| Measuring Aperture | MAV:φ8mm/φ11mm；SAV:φ4mm/φ6mm；MINI:1*3mm |
| Light Source | Combined full spectrum LED light source, UV light source |
| Repeatability | Chromaticity value: Standard deviation dE*ab≤ 0.025 Average: dE*ab≤ 0.025 Max. value: dE*ab≤ 0.04 (After whiteboard calibration, measure the whiteboard 30 times at 5-second intervals) Spectral reflectance: Standard deviation<0.08% |
| Inter-instrument Error | ΔE*ab≤0.25 （BCRA Series Ⅱ, average measurement of 12 tiles） |
| Displayed Accuracy | 0.01 |
| Measurement Index | Reflectance, CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB,Color difference(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,TaubeBergerStensby),YI((ASTM D1925,ASTM E313-00,ASTM E313-73),Blackness（My,dM）,Color Fastness, Tint(ASTM E313-00),Color Density CMYK(A,T,E,M),Metamerism index Milm,Munsell, Opacity, Color strength(Dye strength, tinting strength) |
| Illuminant | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2 LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2 |
| Camera Locating | With |
| Calibration | Auto |
| Software supporting | Android,IOS,WeChat applet，Windows |
| Observer Angle | 2°, 10° |
| Integrating Sphere Size | φ40mm |
| Optical Splitting Method | Grating |
| Sensor | Dual array sensor |
| Wavelength Interval | 10nm |
| Wavelength Range | 400-700nm |
| Measured Reflectance Range | 0-200% |
| Reflectance Resolution | 0.01% |
| Test Time | ＜2s |
| Interface | USB，Bluetooth |
| Screen | 3.5-inch IPS full color screen |
| Battery | Rechargeable, 8000 times continuous tests, 3.7V/3000mAh |
| Illuminant Life Span | 1 million measurements in 10 years |
| External Dimension (L*W*H) | 95*129*231mm |
| Net Weight | 0.75kg |
Manufacturer catalogue checked 2026-09-28.
