Brand: Infitek | Category: Scientific & Laboratory Equipment

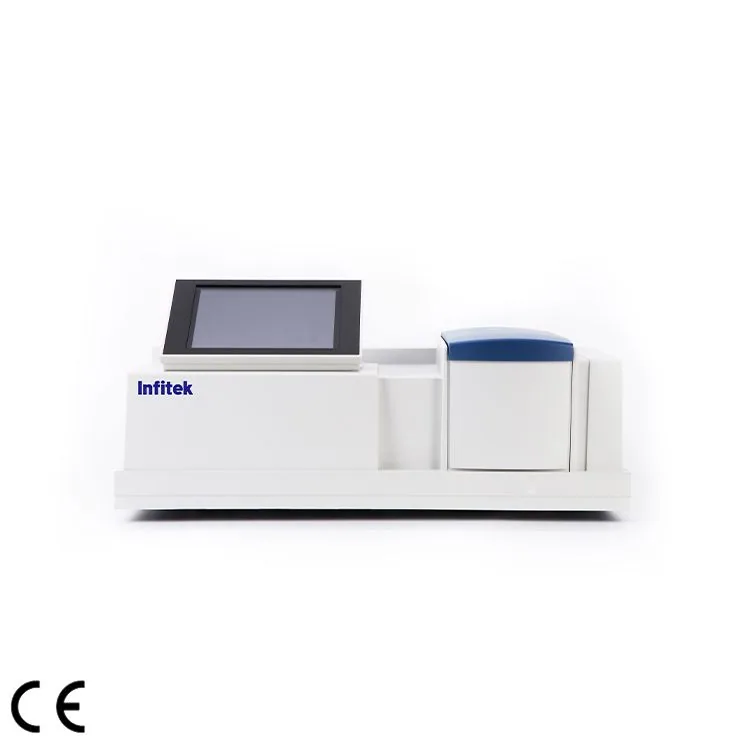

Infitek Double Beam UV Visible Spectrophotometer, SP-IUV8, SP-IUV9 is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-IUV8, SP-IUV9. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-IUV8 | SP-IUV9 |
|---|---|---|
| Optical System | Double-Beam System | Double-Beam System |
| Monochromator Type | Czerny-Turner | Czerny-Turner |
| Wavelength Range | 190-1100nm | 190-1100nm |
| Wavelength Accuracy | ±0.3nm | ±0.3nm |
| Wavelength Repeatability | ≤0.1nm | ≤0.1nm |
| Spectrum Bandwidth | 2nm or 1nm | 0.5nm,1nm,2nm,4nm,5nm |
| Photometric Accuracy | ±0.3%T; ±0.002Abs (0-0.5A); ±0.004 Abs (0.5-1A) | ±0.3%T; ±0.002Abs (0-0.5A); ±0.004 Abs (0.5-1A) |
| Photometric Repeatability | ≤0.15%T | ≤0.15%T |
| Photometric Repeatability | 0.001 Abs (0-0.5A) | 0.001 Abs (0-0.5A) |
| Photometric Repeatability | 0.002 Abs (0.5-1A) | 0.002 Abs (0.5-1A) |
| Photometric Range | 0.0-200.0%T | 0.0-200.0%T |
| Photometric Range | -0.301-4.000A | -0.301-4.000A |
| Photometric Range | 0.000-9999C | 0.000-9999C |
| Stray Light | ≤0.02%T( at 220nm NaI, 360nm NaNo_(2) ) | ≤0.02%T( at 220nm NaI, 360nm NaNo_(2) ) |
| Baseline | ≤±0.0008 A(200-1090nm) | ≤±0.0008 A(200-1090nm) |
| Drifting | ≤0.004 Abs/h (250nm and 500nm after 2h warm up) | ≤0.004 Abs/h (250nm and 500nm after 2h warm up) |
| Noise | 100%（T）Noise ≤0.1%(T) ， | 100%（T）Noise ≤0.1%(T) ， |
| Noise | 0%（T） Noise ≤0.02%(T) | 0%（T） Noise ≤0.02%(T) |
| Scanning Speed | Fast-Medium-Slow | Fast-Medium-Slow |
| Grating | 1600 lines/mm | 1600 lines/mm |
| Detector | Silicon photocell | Silicon photocell |
| Display | 8-inch color touch-screen | 8-inch color touch-screen |
| Light Source | Hamamatsu D_(2) lamp，Osram halogen tungsten lamp | Hamamatsu D_(2) lamp，Osram halogen tungsten lamp |
| Output | USB | USB |
| Power | AC220V±22V, 50Hz±1Hz, 200W | AC220V±22V, 50Hz±1Hz, 200W |
| N.W./G.W | 34/42.5kg | 34/42.5kg |
| Dimension(L*W*H) | 584*504*360mm | 584*504*360mm |
| Package Dimension(L*W*H) | 750*640*460mm | 750*640*460mm |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
