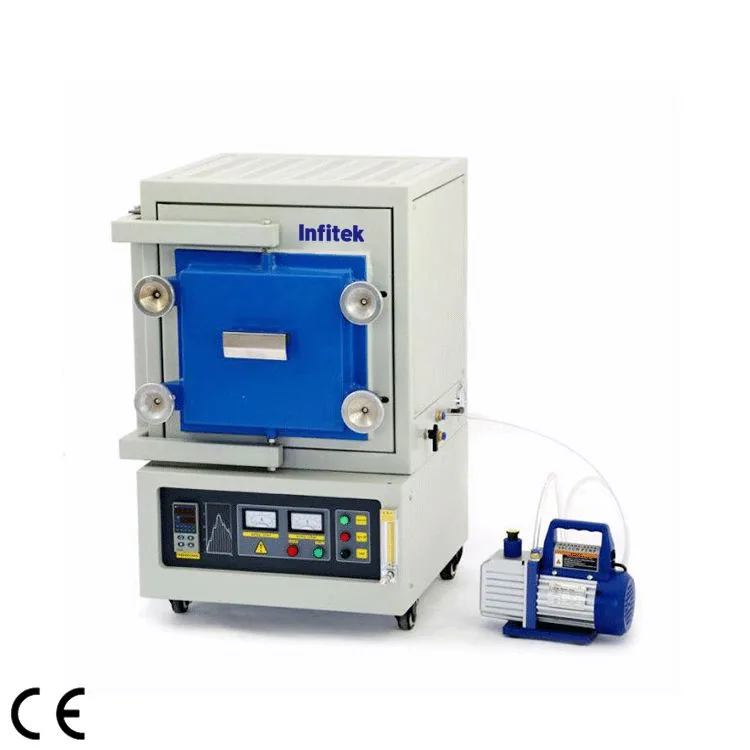

Infitek Muffle Furnace, 1200°C High Temp, FNC-AS1200 Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Muffle Furnace, 1200°C High Temp, FNC-AS1200 Series is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | FNC-AS1200-1 | FNC-AS1200-2 | FNC-AS1200-6 | FNC-AS1200-9 | |
| Temperature | Max. Temp(℃) | 1200 | 1200 | 1200 | 1200 |
| Temperature | Continuous Working Temp.(℃) | ≤1100 | ≤1100 | ≤1100 | ≤1100 |
| Temperature | Heating Rate | 0~30℃/min, suggest to be 15℃/min; | 0~30℃/min, suggest to be 15℃/min; | 0~30℃/min, suggest to be 15℃/min; | 0~30℃/min, suggest to be 15℃/min; |
| Temperature | Accuracy(℃) | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Temperature | Uniformity(℃) | ±5℃ | ±5℃ | ±5℃ | ±5℃ |
| Chamber Dimension(W*D*H)(mm) | Chamber Dimension(W*D*H)(mm) | 100*100*100(Or customize as your requirement) | 150*200*150(Or customize as your requirement) | 200*300*200(Or customize as your requirement) | 300*400*300(Or customize as your requirement) |
| External Size(W*D*H)(mm) | External Size(W*D*H)(mm) | 650*600*865mm | 670*600*930mm | 660*750*1020mm | 830*910*1265mm |
| Capacity(L) | Capacity(L) | 1 | 4.5 | 12 | 36 |
| Heating Element | Heating Element | Resistance wire, Fe-Cr-Al Alloy doped by Mo | Resistance wire, Fe-Cr-Al Alloy doped by Mo | Resistance wire, Fe-Cr-Al Alloy doped by Mo | Resistance wire, Fe-Cr-Al Alloy doped by Mo |
| Thermocouple | Thermocouple | K type | K type | K type | K type |
| Chamber Material | Chamber Material | Alumina ceramic fiberboard | Alumina ceramic fiberboard | Alumina ceramic fiberboard | Alumina ceramic fiberboard |
| Electricity | Electricity | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz | AC380 V, 50Hz/60Hz |
| Gas available | Gas available | all inert gases, mixed gases, nitrogen, oxygen, carbon monoxide, argon, etc. | all inert gases, mixed gases, nitrogen, oxygen, carbon monoxide, argon, etc. | all inert gases, mixed gases, nitrogen, oxygen, carbon monoxide, argon, etc. | all inert gases, mixed gases, nitrogen, oxygen, carbon monoxide, argon, etc. |
| Gas control | Gas control | One or more (optional) inlets can be set at the inlet end, each inlet is equipped with a ball valve and connected to a vacuum gauge. The outlet end is connected to an outlet hole and a vacuum hole, and all holes are equipped with ball valves. Equipped with a vacuum pump. | One or more (optional) inlets can be set at the inlet end, each inlet is equipped with a ball valve and connected to a vacuum gauge. The outlet end is connected to an outlet hole and a vacuum hole, and all holes are equipped with ball valves. Equipped with a vacuum pump. | One or more (optional) inlets can be set at the inlet end, each inlet is equipped with a ball valve and connected to a vacuum gauge. The outlet end is connected to an outlet hole and a vacuum hole, and all holes are equipped with ball valves. Equipped with a vacuum pump. | One or more (optional) inlets can be set at the inlet end, each inlet is equipped with a ball valve and connected to a vacuum gauge. The outlet end is connected to an outlet hole and a vacuum hole, and all holes are equipped with ball valves. Equipped with a vacuum pump. |
| Sealing method | Sealing method | The furnace door is milled with a flat surface and a silicone strip is embedded in the seal, which has strong sealing performance and is easy to open and close. | The furnace door is milled with a flat surface and a silicone strip is embedded in the seal, which has strong sealing performance and is easy to open and close. | The furnace door is milled with a flat surface and a silicone strip is embedded in the seal, which has strong sealing performance and is easy to open and close. | The furnace door is milled with a flat surface and a silicone strip is embedded in the seal, which has strong sealing performance and is easy to open and close. |
| Max. Consumption | Max. Consumption | 1kW | 2kW | 6kW | 9kW |
Manufacturer catalogue checked 2026-09-28.
