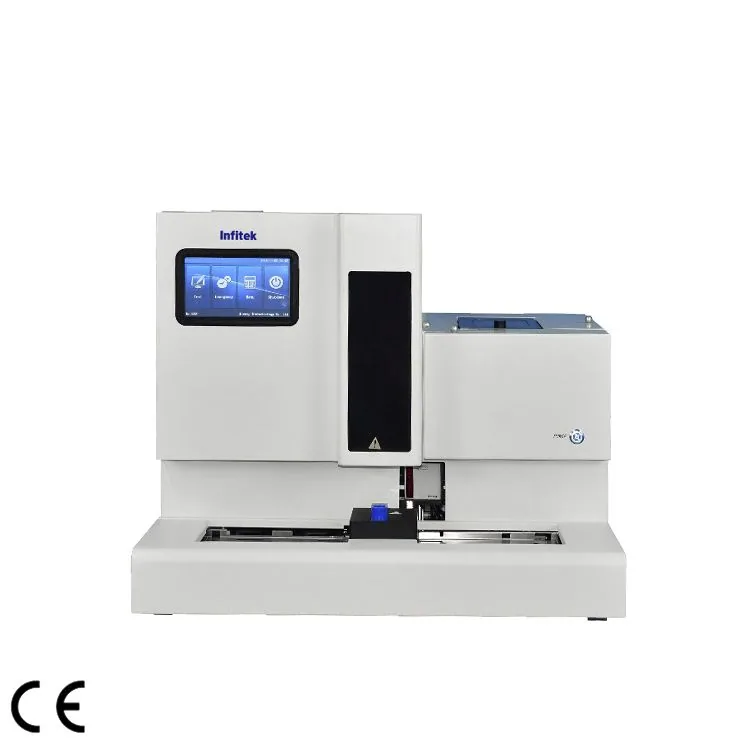

Infitek Fully Automatic Urine Analyzer, UA-A3-240
Brand: Infitek | Category: Medical Equipment
Infitek Fully Automatic Urine Analyzer, UA-A3-240 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: UA-A3-240. Published details include On Board Sample Capacity: 5 racks of 10 tubes (50 samples); Sample Volume: Minimum volume: 3mL. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | UA-A3-240 |
|---|---|
| Test Speed | 240 strips/hour(15 seconds/strip) |
| On Board Sample Capacity | 5 racks of 10 tubes (50 samples) |
| Sample Volume | Minimum volume: 3mL |
| Aspiration Volume | Less than 1mL |
| Test Principle | Photoelectric colorimetric method |
| Test Parameters | Urobilinogen(URO), Bilirubin(BIL), Ketone (KET), Blood (BLD), Protein (PRO), Nitrite (NIT), Leukocytes(LEU), Glucose(GLU), Specific Gravity(SG), PH(pH), Ascorbic Acid(VC), Microalbumin(MAL) |
| Data Storage Capacity | 20,000 |
| External Output | RS-232 |
| Electricity | AC 220V, 50Hz |
| Power | 300VA |
| Fuse | 250V 2A |
| Environment | Temperature:15° C ~ 35° C Optimum temperature: 20° C~25° C Relative humidity:≤75% |
| Printer | Thermal printer |
| Dimensions(L*W*H) | 660*625*581mm |
| Net Weight | 65kg |
Manufacturer catalogue checked 2026-09-28.
