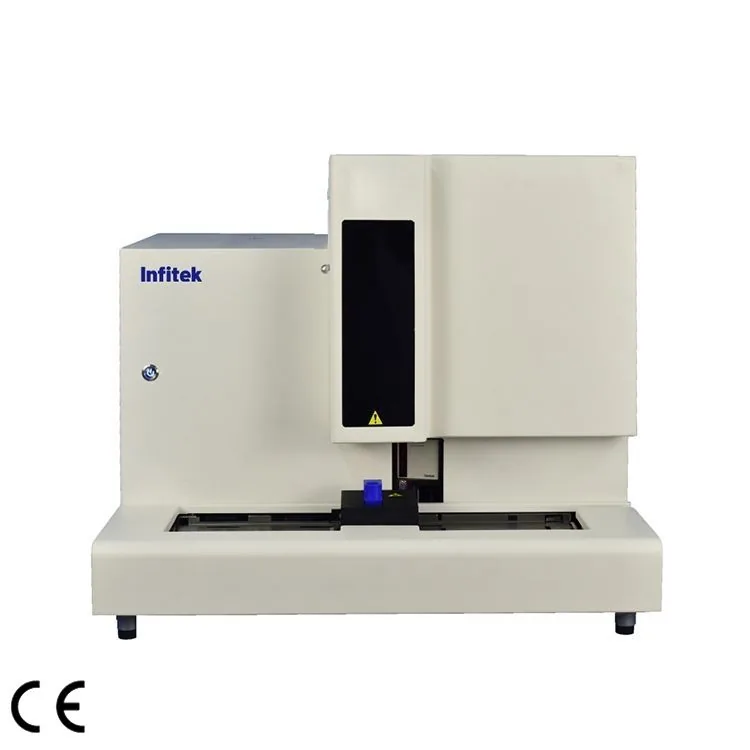

Infitek Fully Automatic Urine Sediment Analyzer, UA-S3-120
Brand: Infitek | Category: Medical Equipment
Infitek Fully Automatic Urine Sediment Analyzer, UA-S3-120 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: UA-S3-120. Published details include Sample Volume: Minimum volume:3mL,Aspiration volume:1mL; Aspiration Volume: 1ml. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | UA-S3-120 |
|---|---|
| Test Parameters | Normal RBC, Standing RBC, Dysmorpuic RBC, Normal WBC, WBCC, Pus Cell, Hyaline Cast, Granular Cast,WBC Cast ,Squamous Epithelial Cell,Normal Epithelial Cell, Sperm, Calcium Oxalate Crystal, Bacteria,Yeast, Amorphous Urates, Mucus etc. |
| Test Principle | Flow cell digital imaging technology,medical image fusion technology,artificial intelligence identification technique |
| Channel | Four channels fixed flow counting cell |
| Sample Volume | Minimum volume:3mL,Aspiration volume:1mL |
| Test Speed | 120 samples/hour |
| Aspiration Volume | 1ml |
| Test Sensitivity | 5 cells/μL |
| Accuracy | >95% |
| Repeatability | CV<10% |
| Cross Contamination Rate | <0.05% |
| Data Storage | 200,000 |
| Report Mode | International general quantitative unit; unit /μL&HPF, complete and illustrated report, with urine chemistry test results and urine sediment test results |
| Environment | Temperature:15°C~35°C Optimum temperature: 20°C~25°C Relative humidity:≤75% |
| Electricity | AC220V±10% , 50Hz |
| Dimensions(L*W*H) | 660mm*440mm*570mm |
| N.W./G.W. | 37kg/95kg |
| Shipping Dimension(L*W*H) | 1150*760*770mm |
Manufacturer catalogue checked 2026-09-28.
