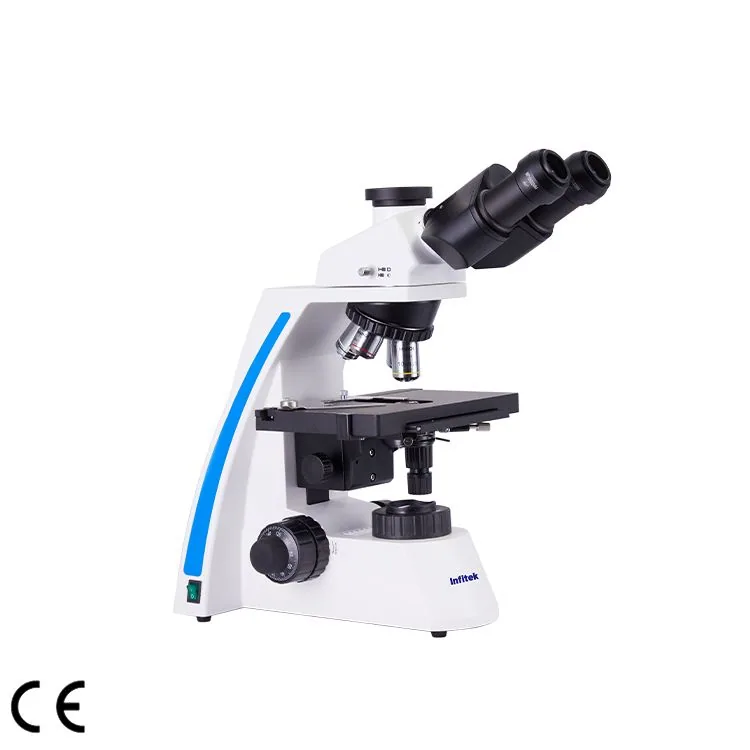

Infitek Biological Microscope, MSC-B31M
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Biological Microscope, MSC-B31M is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MSC-B31M. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Easy to carry and store It features a compact, space-saving design. It is equipped with a tool-free thumb screw for the observation head, allowing for quick rotation to minimize the instrument’s footprint for easy storage in classroom cabinets. Furthermore, the integrated carrying handle on the rear ensures safe and convenient transport between locations. | |
|---|---|
| Wide-field, higheye point eyepieces Featuring 22mm wide-field eyepieces, this microscope provides a flat and expansive field of view, reducing eye strain during extended observation. The high eye point design caters to eyeglass wearers, allowing for a comfortable viewing experience without the need to remove their glasses. | |
| Excellent infinity optics The independent achromatic infinity optical system delivers clear imaging and rich details. It is expandable to various observation modes, such as fluorescence, while ensuring consistent magnification when switching between different observation methods. | |
| Low-Position Focusing System Its design allows users to observe and operate in the most comfortable posture, avoiding fatigue caused by keeping hands suspended when working for prolonged periods. | |
| LEDlight source & Kohler illumination system The long-life, high-brightness LED source provides stable, uniform, and glare-free illumination. The intensity is continuously adjustable via a side-mounted knob to maintain optimal image quality. Standard Kohler illumination ensures sharper imaging at low magnifications and offers easier maintenance. |
| Model | MSC-B31M |
|---|---|
| Optics | Infinity optical system |
| Observation Tube | Tilting trinocular, Interpupillary 53-75mm |
| Viewing Head | Siedentopf head, inclined at 30°, light split 100:0/ 0:100 |
| Eyepiece | Wide field WF10X/22mm |
| Objective | Infinity Plan Achromatic Objectives 4X, 10X, 40X, 100X |
| Objective | Infinity Plan Achromatic Objective 20X (Optional) |
| Nosepiece | Inward quadruple nosepiece |
| Stage | Double-layer mechanical stage, Size: 210×140mm, Moving range:76×50mm |
| Focusing | Coaxial coarse and fine adjustment, with locking and limit device, fine division 2μm, coarse stroke 40mm per rotation, fine stroke 0.2mm per rotation, focusing range 24mm |
| Transmitted Illumination | Abbe Condenser NA1.25 |
| Transmitted Illumination | LED light source, adjustable brightness, Kohler lighting |
| Camera Port | TV1XC-MO (camera not included) |
| External Dimension (L*W*H) | 400*210*425mm |
| Phase Contrast | Plan achromatic phase contrast objectives Plan 10X/20X/40X/100X PH (optional) |
| Phase Contrast | Phase contrast condenser turret (optional) |
| Dark Field | Dark field condenser (optional) |
Manufacturer catalogue checked 2026-09-28.
